6CCT Models

1 / 12

EnVision LED

6CCT Models

New

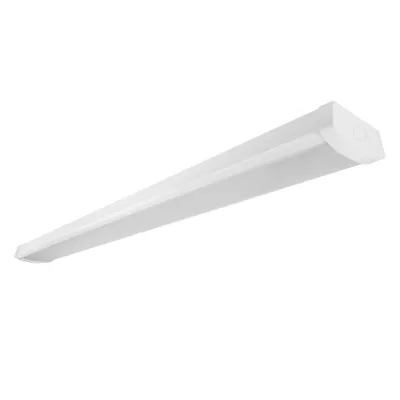

The EnVision 2' and 4' LED Frosted Lens Wraparounds is a 110 lm/w and is primarily used in general lighting environments such as garages, utility rooms, staircases, and more.

4 part numbers · LED Prismatic Lens Wraps

Wattage
16–48W
Lumens
1,840–5,520 lm
Color temperature
2700K, 3000K, 3500K, 4000K, 5000K, 6500K
Voltage
120–277V
Dimming
0-10V
CRI
80+
Finish
White, White Frosted
DLC
DLC Listed
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

The EnVision 2' and 4' LED Frosted Lens Wraparounds is a 110 lm/w and is primarily used in general lighting environments such as garages, utility rooms, staircases, and more. The wraps can be surface mounted and provide an wide illumination in the space. Available in a wide range of color, 3500k, 4000k or 5000k color temp, find the perfect color temperature to illuminate your space.

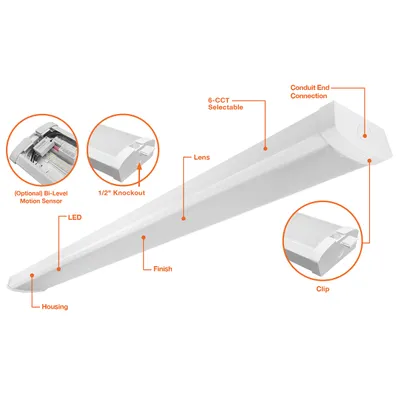

Key features

  • 6CCT

Factory options

  • -EMB — 90 Minute Emergency Backup
  • -MS — On/Off Motion Sensor
  • -EMB — 90 Minute Emergency Backup (Only for single CCT)
  • -BMS — Bi Level Motion + Daylight Sensor

Add the suffix to the part number when ordering. See the spec sheet for compatibility.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare

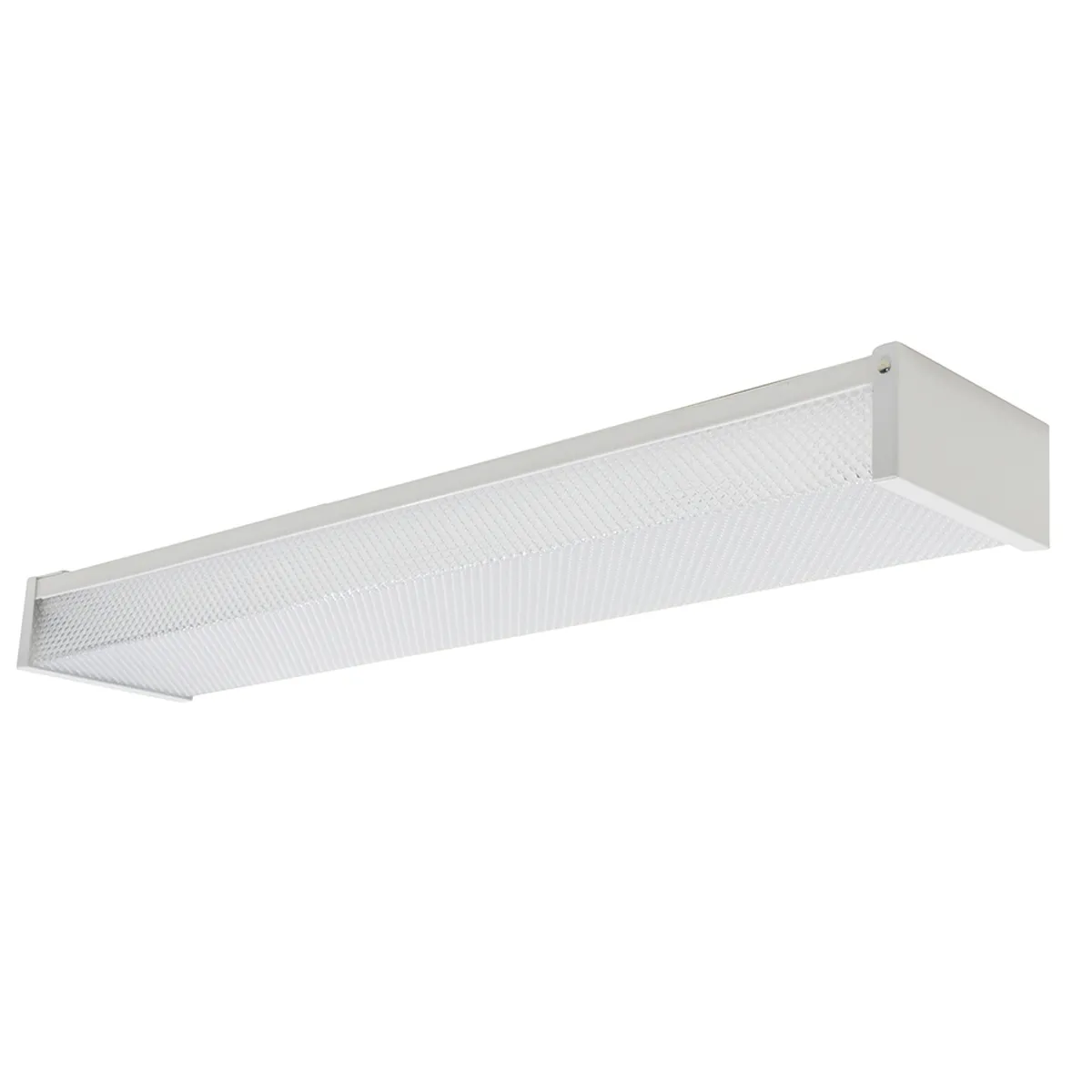

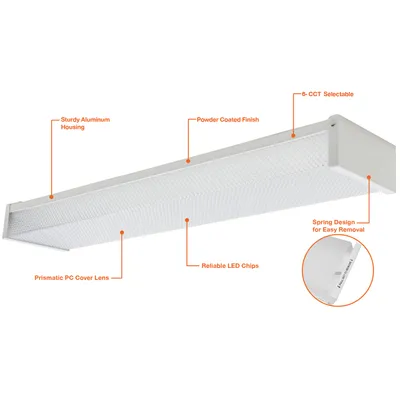

LED-WRP-PRM-2FT-20W-6CCT-UNV2 FT Prismatic Wrap20W2,300 lm2700K/3000K/3500K/4000K/5000K/6500K120–277V0-10VWhiteListedCall for pricing
LED-WRP-FR-2FT-3P24-6CCT-UNV2 FT Frosted Wrap16/20/24W1,840/2,300/2,760 lm2700K/3000K/3500K/4000K/5000K/6500K120–277V0-10VWhite FrostedListedCall for pricing
LED-WRP-PRM-4FT-40W-6CCT-UNV4 FT Prismatic Wrap40W4,600 lm2700K/3000K/3500K/4000K/5000K/6500K120–277V0-10VWhiteListedCall for pricing
LED-WRP-FR-4FT-3P48-6CCT-UNV4 FT Frosted Wrap32/40/48W3,680/4,600/5,520 lm2700K/3000K/3500K/4000K/5000K/6500K120–277V0-10VWhite FrostedListedCall for pricing
