EnVision LED

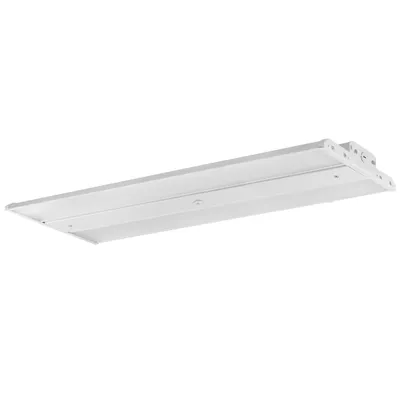

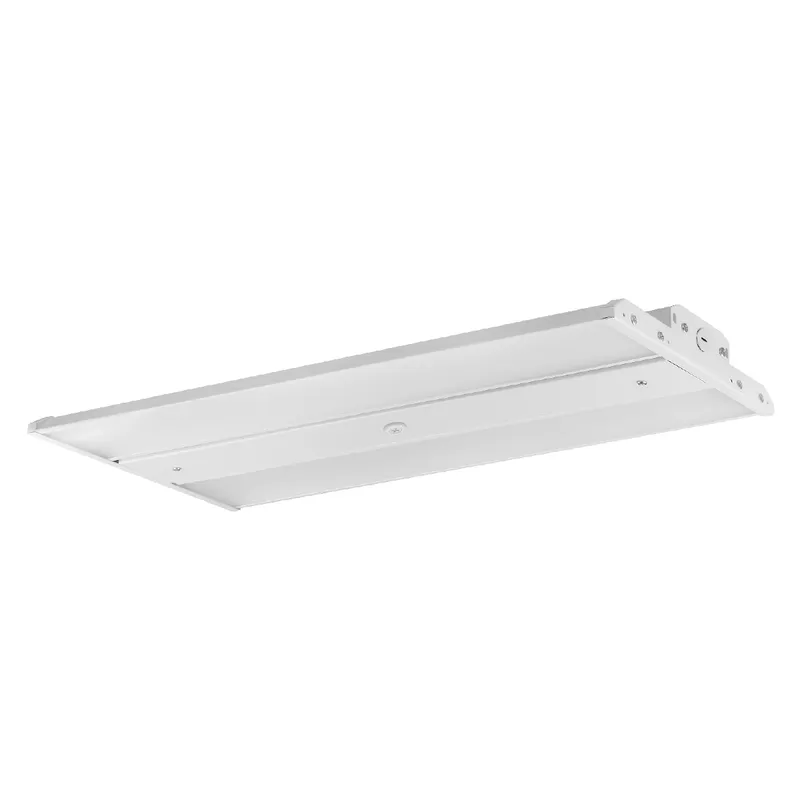

Highbay Fixture - Linear w/ Twist-C Technology: Bolt-Line
New• 3 Power Selectable with Twist-C Technology • 0-10V dimmable integrated driver • Optional internally-mounted motion sensor • High voltage (300-480V) driver available
9 part numbers · Highbay Fixture - Linear
- Wattage
- 60–320W
- Lumens
- 8,700–46,400 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White Frosted
- DLC
- DLC Premium
- Warranty
- 5 years
Overview
• 3 Power Selectable with Twist-C Technology • 0-10V dimmable integrated driver • Optional internally-mounted motion sensor • High voltage (300-480V) driver available

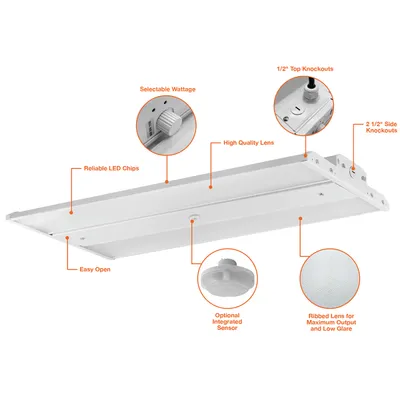

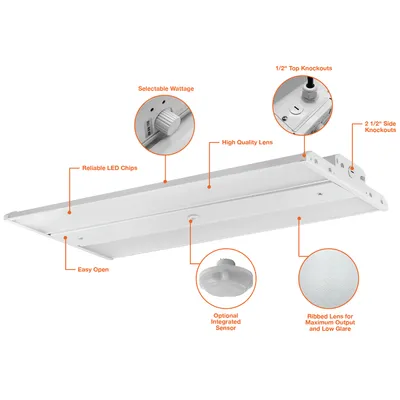

Key features
- 1CCT
- Select-N-Switch
- Twist-C
- 3CCT
- White
Factory options

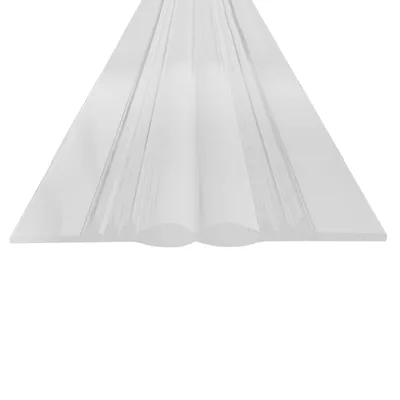

- -30D — Factory Installed 30D Optic (4ft Only)
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LHB-3P-4FT-OPTIC-30D | Linear Highbay: Slim-Line G2 30DG Lens for 4ft Model | — | — | — | — | — | — | — | Call for pricing | ||
 | LED-LHB-2FT-3P110-F-40K-UNV | Linear Highbay: Slim-Line G2 | 60/80/110W | 8,700/11,600/15,950 lm | 4000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-2FT-3P110-F-50K-UNV | Linear Highbay: Slim-Line G2 | 60/80/110W | 8,700/11,600/15,950 lm | 5000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-2FT-3P165-F-40K-UNV | Linear Highbay: Slim-Line G2 | 125/150/165W | 18,125/21,750/23,925 lm | 4000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-2FT-3P165-F-50K-UNV | Linear Highbay: Slim-Line G2 | 125/150/165W | 18,125/21,750/23,925 lm | 5000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-4FT-3P220-F-40K-UNV | Linear Highbay: Slim-Line G2 | 180/200/220W | 23,925/29,000/31,900 lm | 4000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-4FT-3P320-F-40K-UNV | Linear Highbay: Slim-Line G2 | 260/290/320W | 37,700/42,050/46,400 lm | 4000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
| LED-LHB-4FT-3P320-F-50K-UNV | Linear Highbay: Slim-Line G2 | 260/290/320W | 37,700/42,050/46,400 lm | 5000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing | ||
 | LED-LHB-4FT-5P320-CTRI-UNV | Linear Highbay: Slim-Line G2 | 160/200/240/280/320W | 23,200/29,000/34,800/40,600/46,400 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White Frosted | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-lhb-2ft-3p110-080w.ies
- IES fileled-lhb-2ft-3p110-110w.ies
- IES fileled-lhb-2ft-3p110-060w.ies
- IES fileled-lhb-2ft-3p165-165w.ies
- IES fileled-lhb-2ft-3p165-150w.ies
- IES fileled-lhb-2ft-3p165-125w.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-160w-50k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-240w-50k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-160w-35k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-160w-40k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-240w-40k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-240w-35k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-280w-50k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-320w-35k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-280w-35k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-200w-50k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-200w-35k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-320w-40k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-280w-40k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-200w-40k.ies
- IES fileled-lhb-4ft-5p320-ctri-unv-320w-50k.ies
