EnVision LED

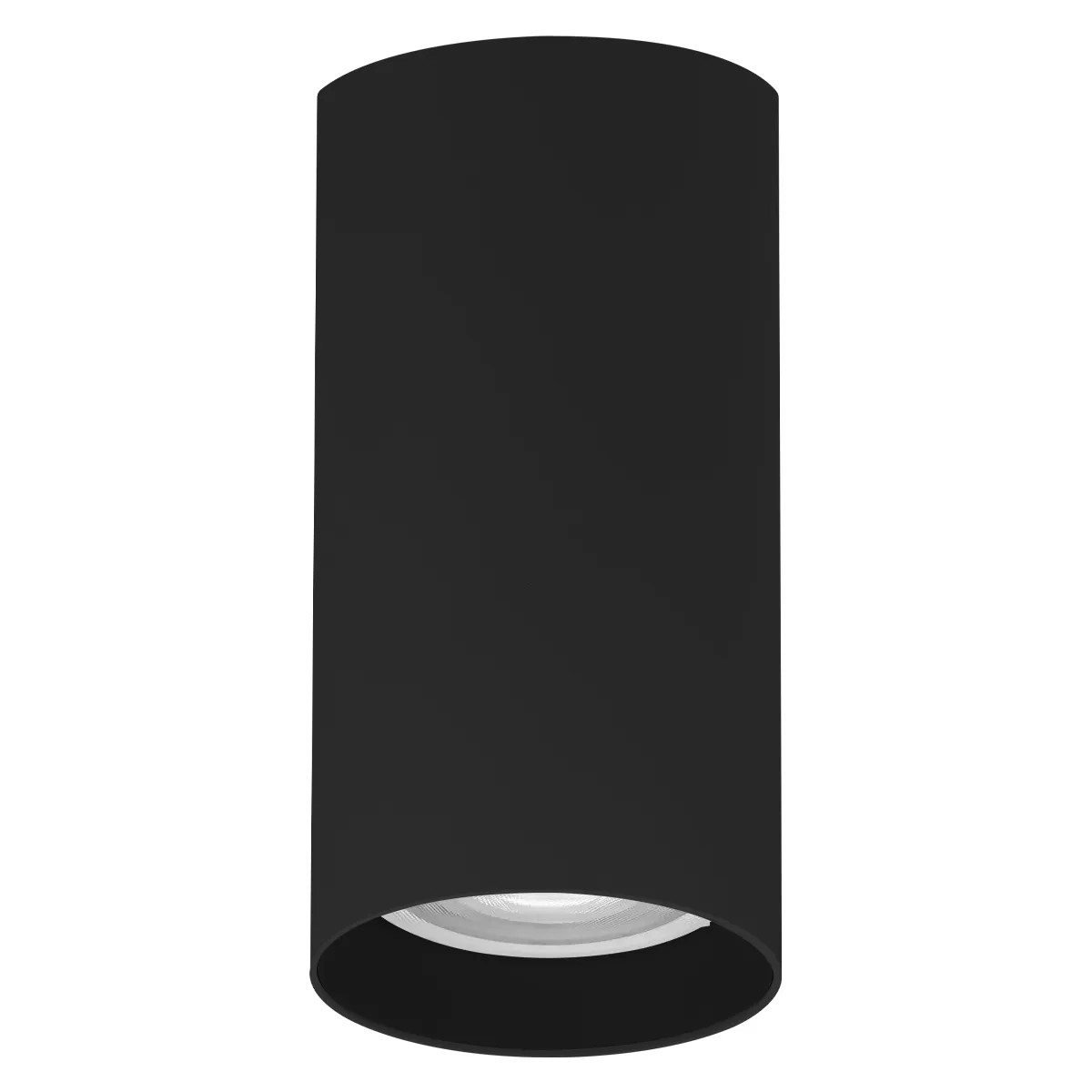

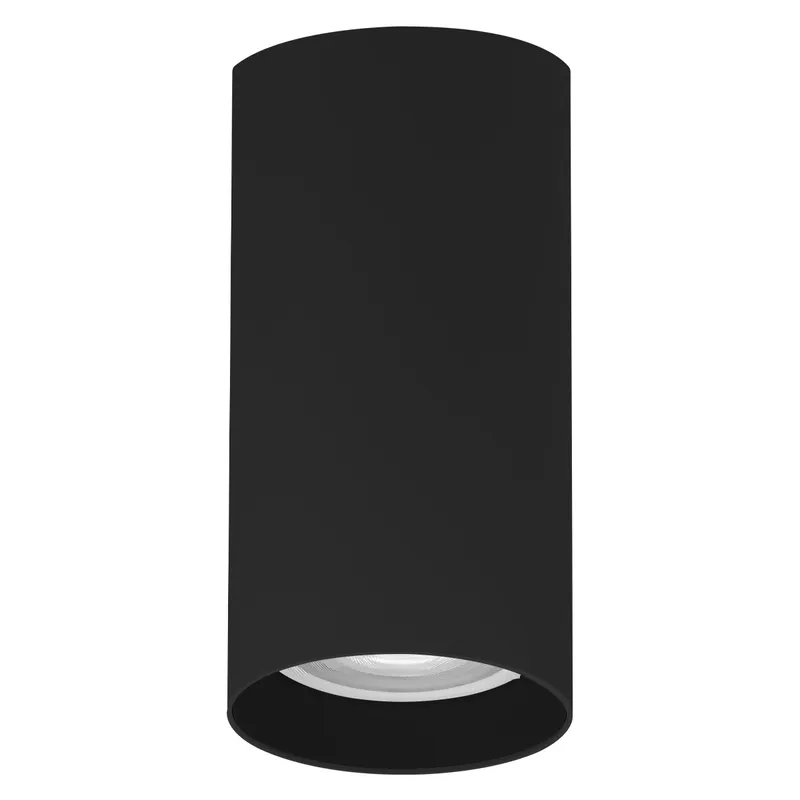

3" ARCY-Line: Cylinder Downlights
New2 part numbers · Cylinders
- Wattage
- 5–15W
- Lumens
- 500–1,400 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V, TRIAC/ELV
- CRI
- 90+
- Finish
- Black, White
- Warranty
- 5 years

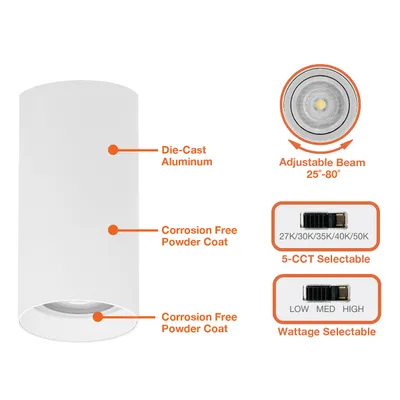

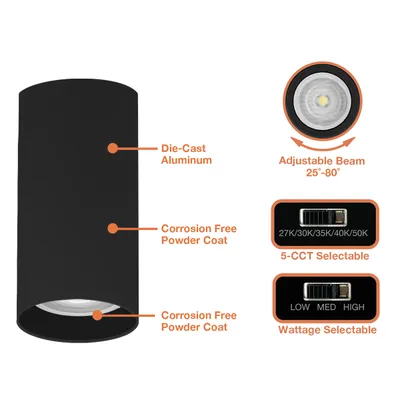

Key features
- 5CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
 | LED-CACM-3-3P15-5CCT-BL-UNV | 3" ARCY-Line: Cylinder Downlights | 5/10/15W | 500/950/1,400 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | Black | — | |
 | LED-CACM-3-3P15-5CCT-WH-UNV | 3" ARCY-Line: Cylinder Downlights | 5/10/15W | 500/950/1,400 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-cacm-3-3p15-5cct-wh-unv-10w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-05w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-10w-80dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-05w-80dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-15w-80dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-15w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-10w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-15w-80dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-15w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-5w-25dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-10w-80dg.ies
- IES fileled-cacm-3-3p15-5cct-wh-unv-5w-80dg.ies
