EnVision LED

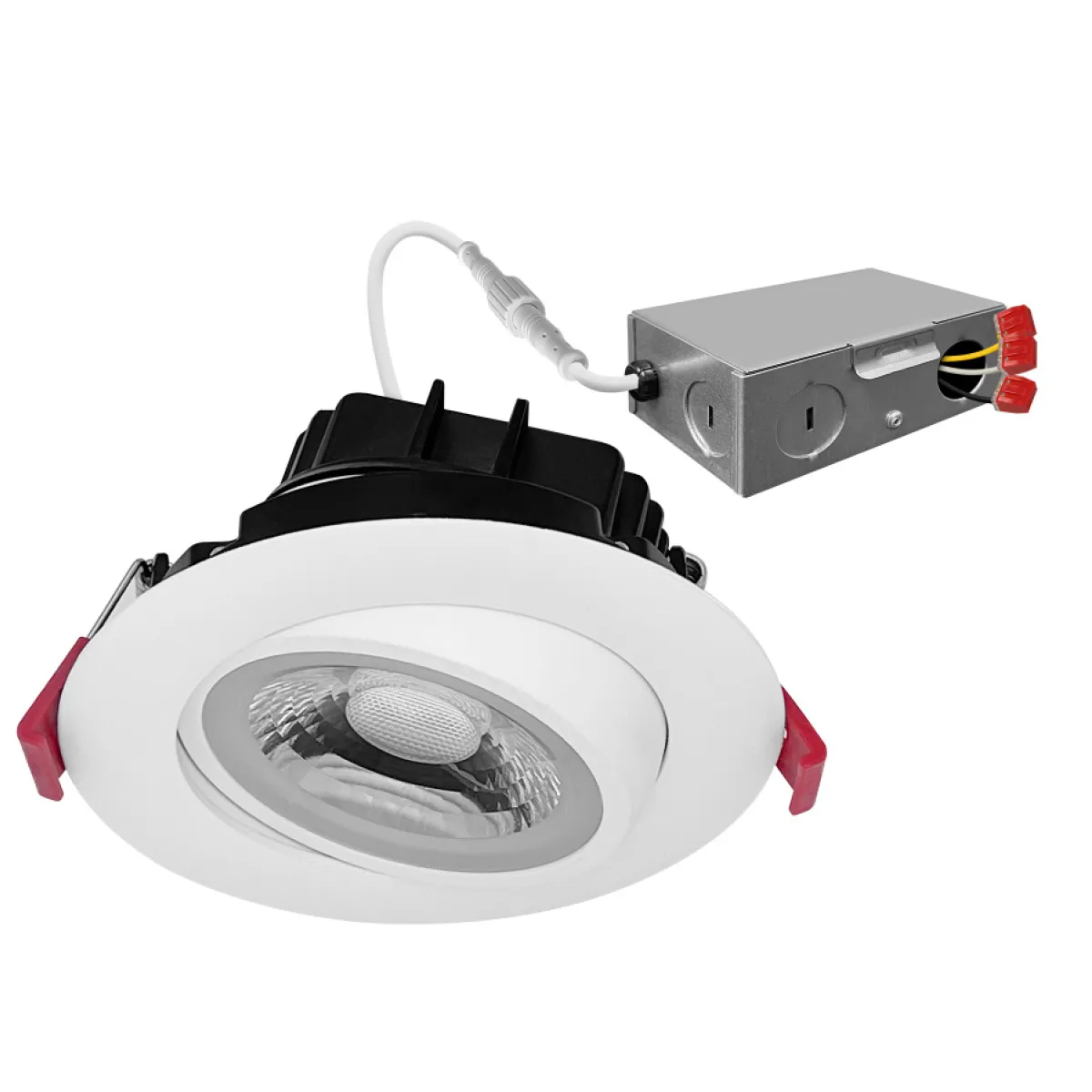

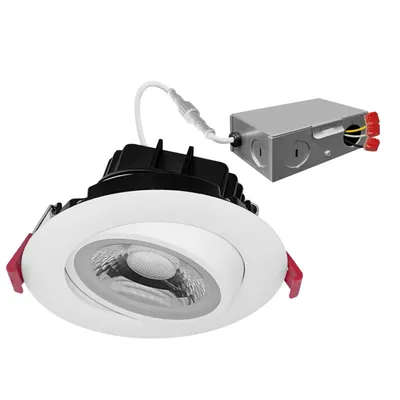

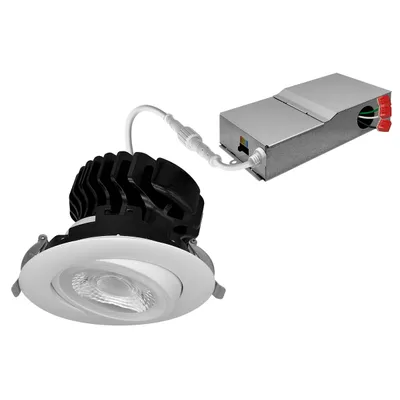

4" DLJBX Gimbal Downlights
New• External j-box & spring mount clips for easy installation • Compatible with most dimmers (e.g.
6 part numbers · DLJBX Series - COB LED Snaptrim (Canless) Remote J-Box Downlights
- Wattage
- 12–18W
- Lumens
- 750–1,500 lm
- Color temperature
- 1800K, 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- White, Black, Brushed Nickel
- Warranty
- 5 years
Overview

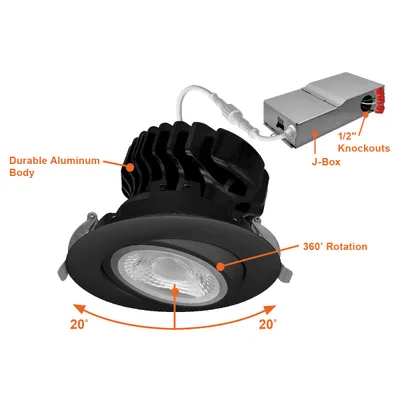

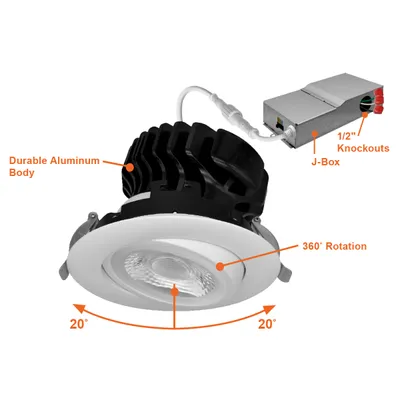

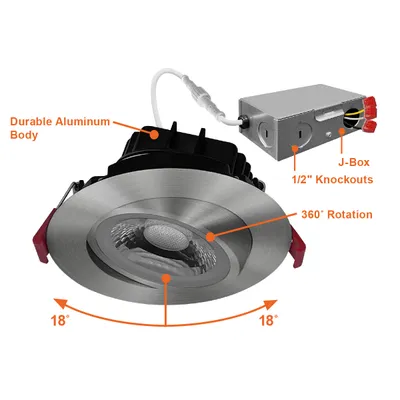

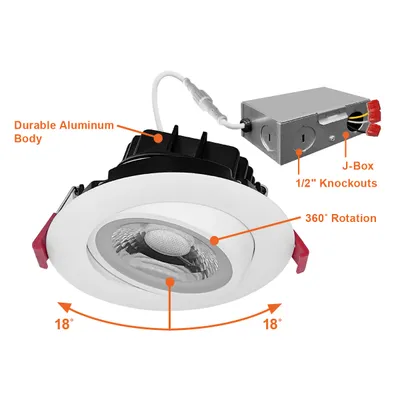

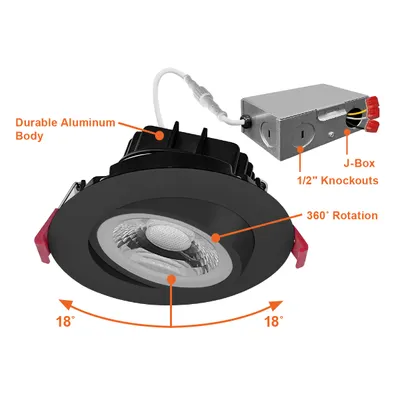

• External j-box & spring mount clips for easy installation • Compatible with most dimmers (e.g. Lutron DVCL-153P) • Canless module does not require housing
Key features
- 5CCT
- Select-N-Switch
- WarmDim
- 1CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
 | LED-DLJBX-ADJ-4-12W-3WD-WH-R | 4" Gimbal Adjustable Downlight Canless | 12W | 750 lm | 1800K/3000K | 120V | TRIAC/ELV | White | — | |
 | LED-DLJBX-ADJ-4-12W-5CCT-BLK-R | 4" Gimbal Adjustable Downlight Canless | 12W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | |
 | LED-DLJBX-ADJ-4-12W-5CCT-BN-R | 4" Gimbal Adjustable Downlight Canless | 12W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Brushed Nickel | — | |
| LED-DLJBX-ADJ-4-12W-5CCT-WH-R | 4" Gimbal Adjustable Downlight Canless | 12W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |
 | LED-DLJBX-ADJ-4-18W-5CCT-BLK-R | 4" Gimbal Adjustable Downlight Canless | 18W | 1,500 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | |
 | LED-DLJBX-ADJ-4-18W-5CCT-WH-R | 4" Gimbal Adjustable Downlight Canless | 18W | 1,500 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — |
