EnVision LED

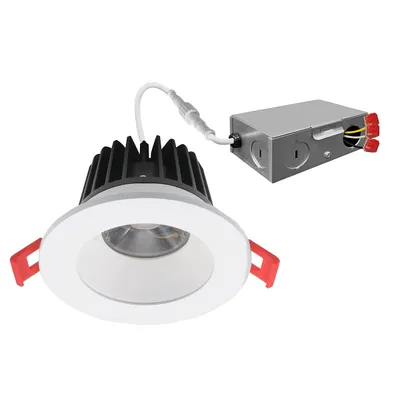

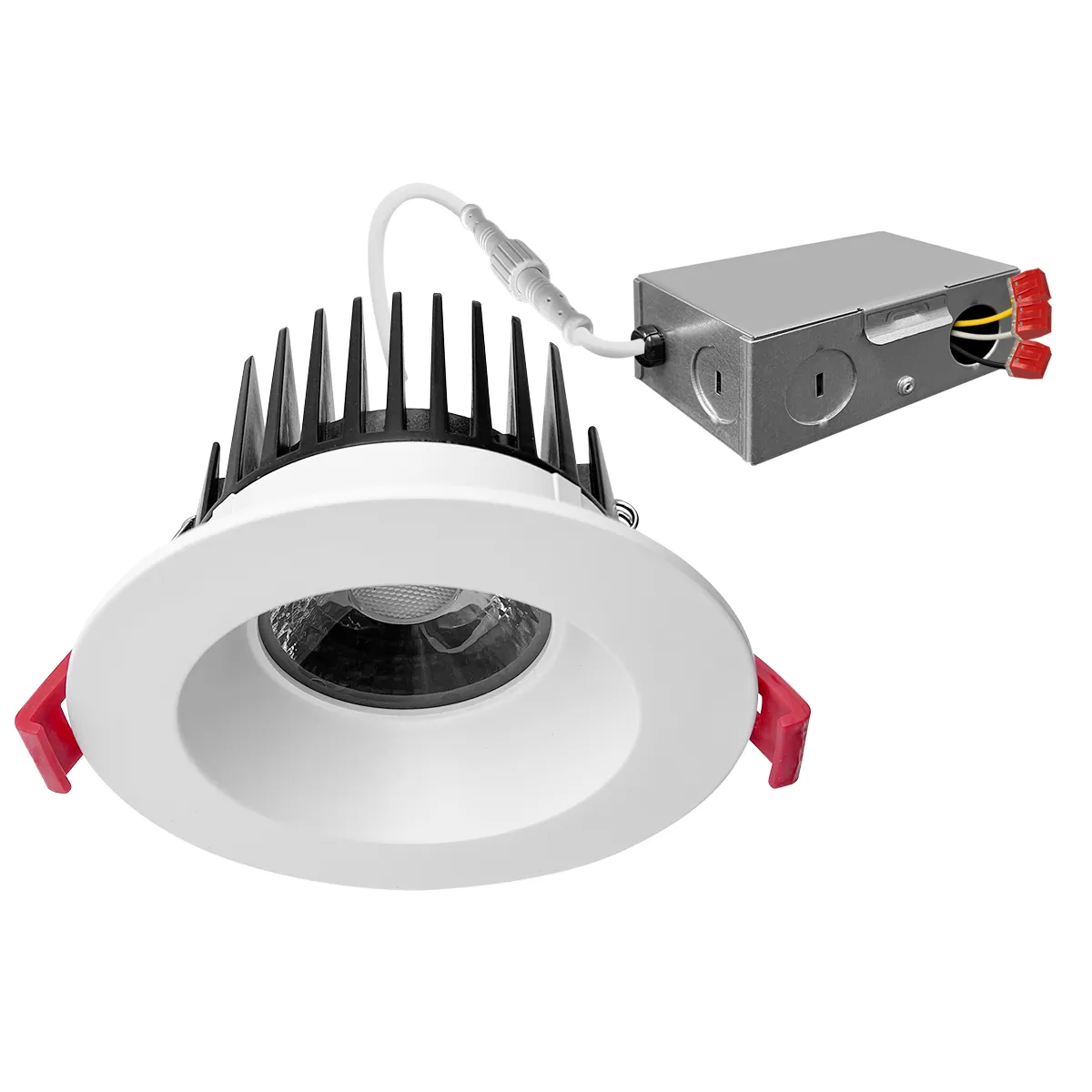

4" DLJBX Regressed Downlights and Trims
New• External j-box & spring mount clips for easy installation • Compatible with most dimmers (e.g.
11 part numbers · DLJBX Series - COB LED Snaptrim (Canless) Remote J-Box Downlights
- Wattage
- 12–18W
- Lumens
- 850–1,500 lm
- Color temperature
- 1800K, 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V, 120/277V
- Dimming
- TRIAC/ELV, 0-10V
- CRI
- 90+
- Finish
- Black, White
- Warranty
- 5 years
Overview

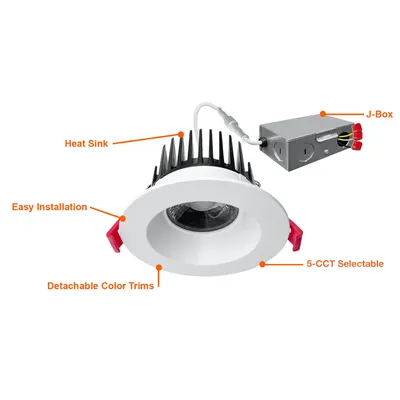

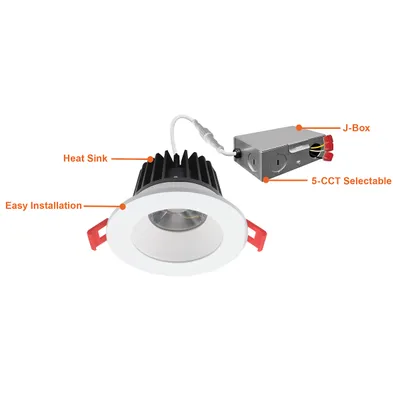

• External j-box & spring mount clips for easy installation • Compatible with most dimmers (e.g. Lutron DVCL-153P)
Key features
- 5CCT
- Select-N-Switch
- WarmDim
- 1CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|

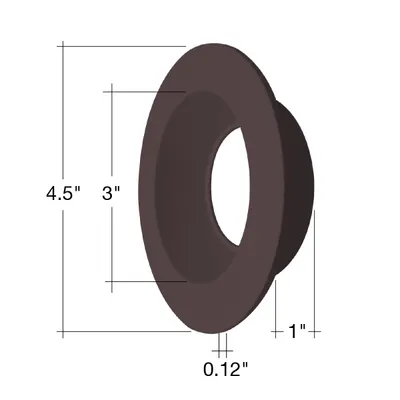

 | DLJBX-4RG-TRIM-BLK-R | 4" Regressed Gimbal Black Round Trim | — | — | — | — | — | Black | — | |
| DLJBX-4RG-TRIM-BLK-SQ | 4" Regressed Gimbal Black Square Trim | — | — | — | — | — | Black | — | |
| DLJBX-4RG-TRIM-BRZ-SQ | 4" Regressed Gimbal Bronze Square Trim | — | — | — | — | — | Black | — | |

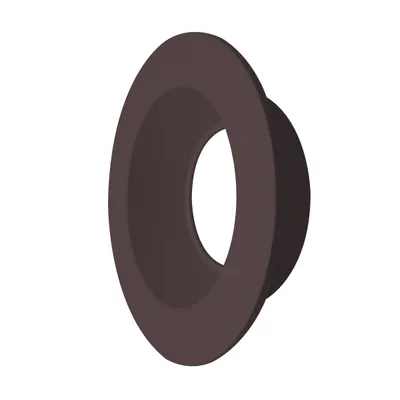

 | DLJBX-4RG-TRIM-BZ-R | 4" Regressed Gimbal Bronze Round Trim | — | — | — | — | — | Black | — | |
| DLJBX-4RG-TRIM-WH-SQ | 4" Regressed Gimbal White Square Trim | — | — | — | — | — | White | — | |
| LED-DLJBX-4RG-12W-3WD-WH-R | 4" Regressed Downlight Warm Dim | 12W | 850 lm | 1800K/3000K | 120V | TRIAC/ELV | White | — | |

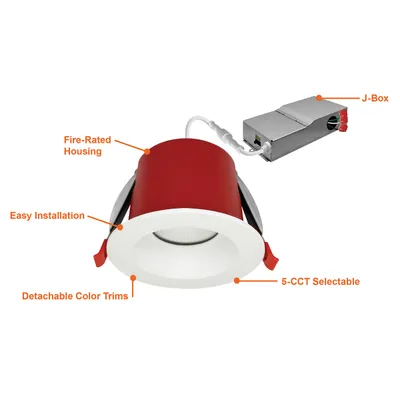

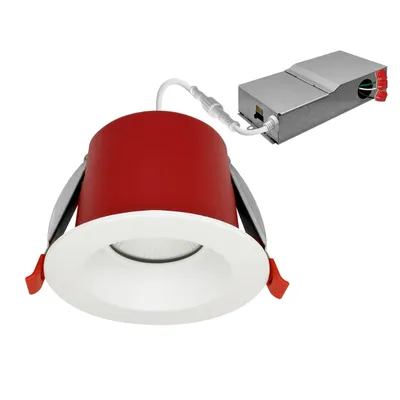

 | LED-DLJBX-4RG-15W-5CCT-FR-WH-R | 4" Regressed Downlight 5CCT FIRE RATED | 15W | 1,100 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |
 | LED-DLJBX-4RG-15W-5CCT-W/W-R | 4" Regressed Downlight 5CCT | 15W | 1,100 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |
| LED-DLJBX-4RG-15W-5CCT-WH-R | 4" Regressed Downlight 5CCT | 15W | 1,100 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |
| LED-DLJBX-4RG-15W-5CCT-WH-R-0/10V | 4" Regressed Downlight 5CCT | 15W | 1,100 lm | 2700K/3000K/3500K/4000K/5000K | 120/277V | 0-10V | White | — | |
 | LED-DLJBX-4RG-18W-5CCT-WH-R | 4" Regressed Downlight 5CCT | 18W | 1,500 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — |
