EnVision LED
4" Multiple Downlights Trimmed

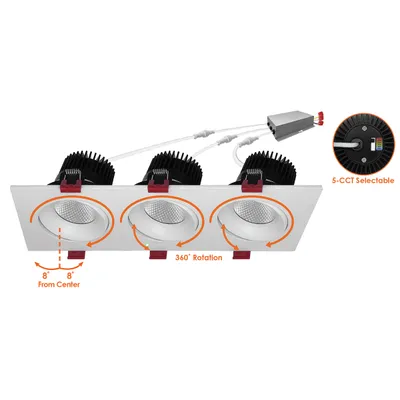

New5CCT Selectable • External J-Box Eliminates Recessed Can • New Construction Mounting Plate Available • Suitable for Use in Wet Locations
6 part numbers · Multiple Head Downlights
- Wattage
- 15–45W
- Lumens
- 1,000–3,000 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- Black, White
- Warranty
- 5 years
Overview
5CCT Selectable • External J-Box Eliminates Recessed Can • New Construction Mounting Plate Available • Suitable for Use in Wet Locations
Key features

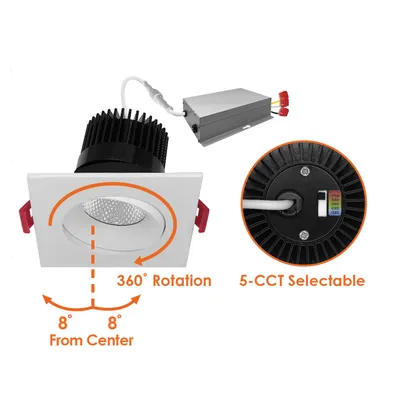

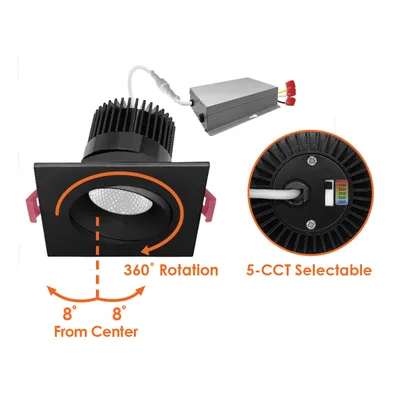

- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|

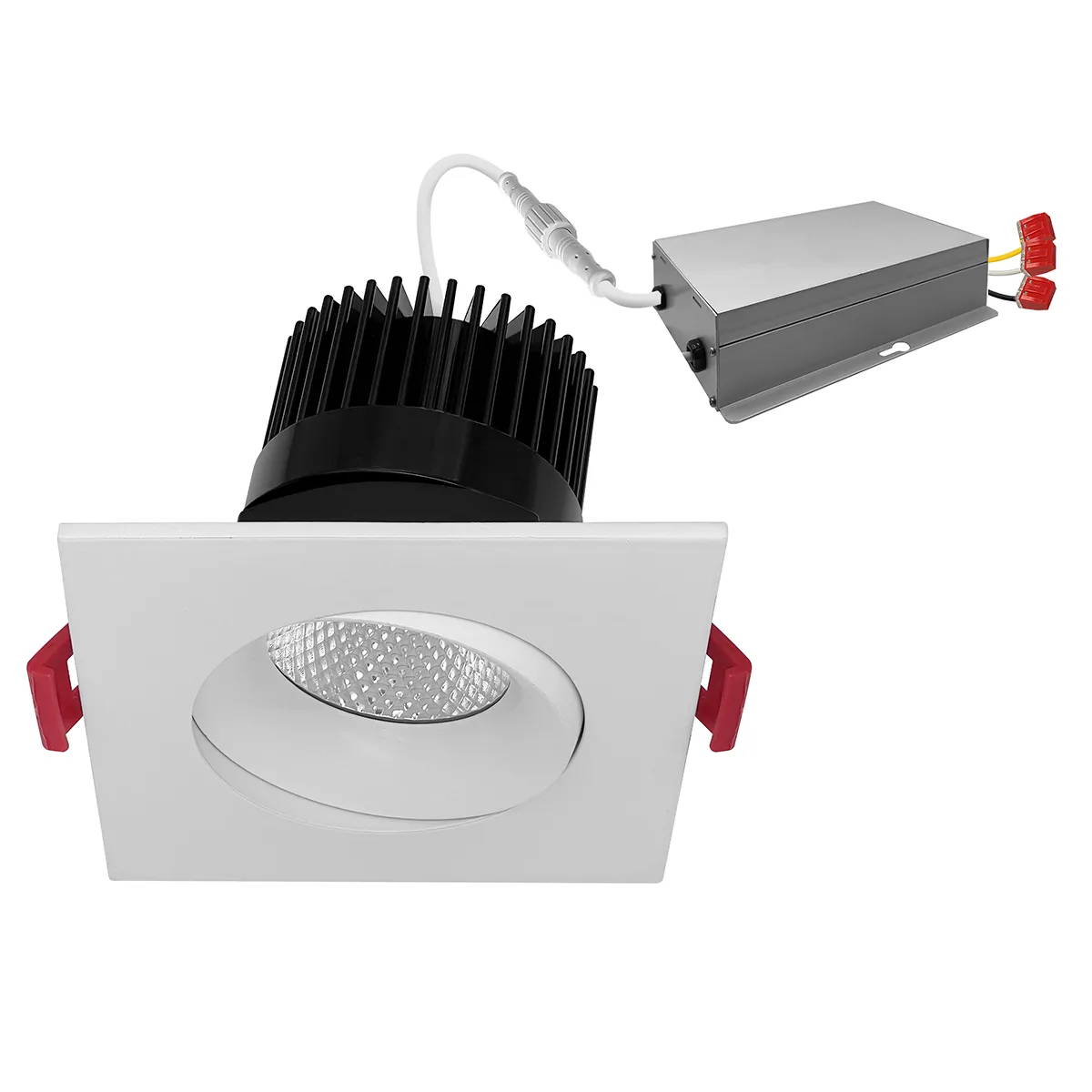

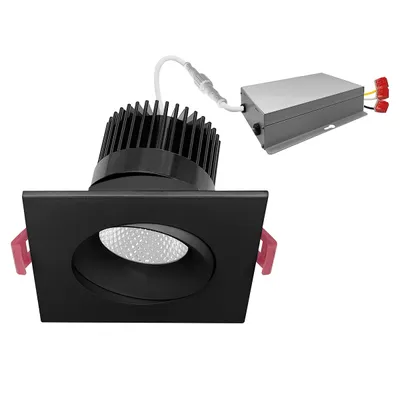

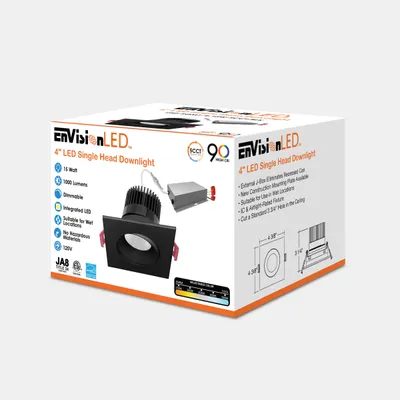

 | LED-SQM1-4-15W-5CCT-BLK | 4" Multiple: Single Head | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | |

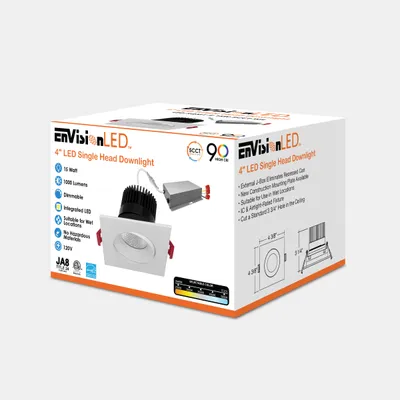

 | LED-SQM1-4-15W-5CCT-WH | 4" Multiple: Single Head | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |

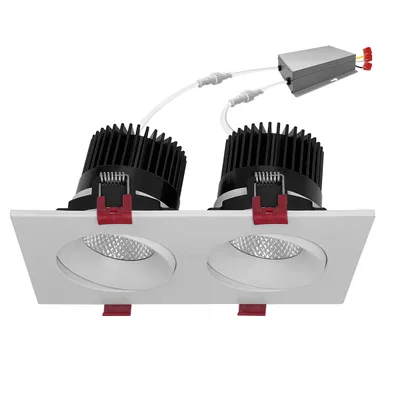

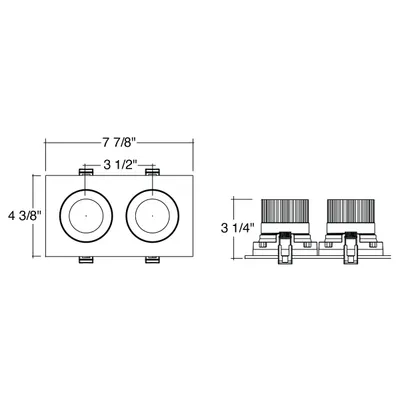

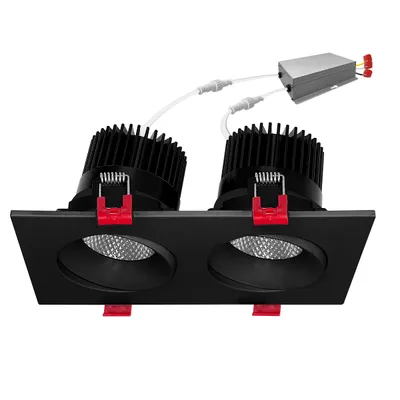

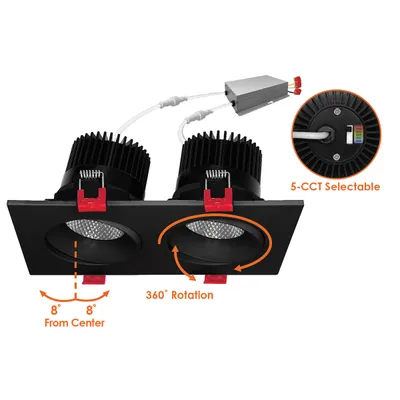

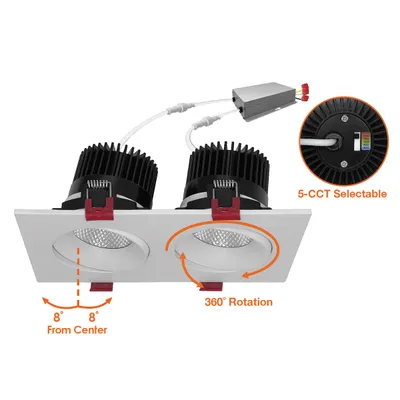

 | LED-SQM2-4-30W-5CCT-BLK | 4" Multiple: Double Head | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | |
 | LED-SQM2-4-30W-5CCT-WH | 4" Multiple: Double Head | 30W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | |

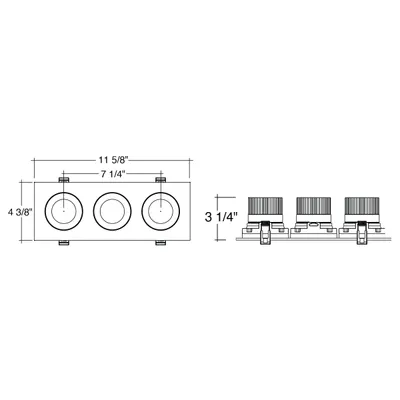

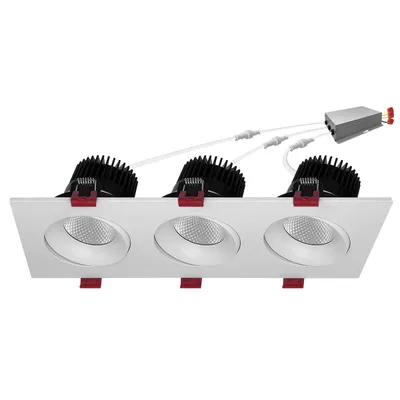

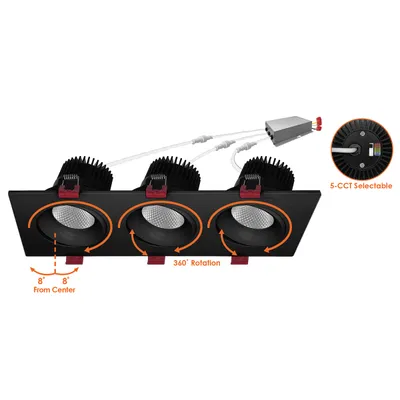

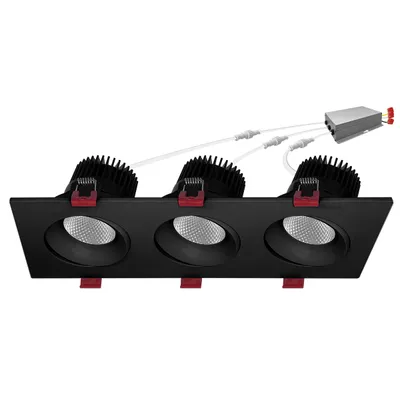

 | LED-SQM3-4-45W-5CCT-BLK | 4" Multiple: Triple Head | 45W | 3,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | |
 | LED-SQM3-4-45W-5CCT-WH | 4" Multiple: Triple Head | 45W | 3,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-sqm1-4-15w-20d-ies.ies
- IES fileled-sqm1-4-15w-38d-ies.ies
- IES fileled-sqm1-4-15w-60d-ies.ies
- IES fileled-sqm2-30w-20d-ies.ies
- IES fileled-sqm2-30w-38d-ies.ies
- IES fileled-sqm2-30w-60d-ies.ies
- IES fileled-sqm3-45w-60d-ies.ies
- IES fileled-sqm3-45w-38d-ies.ies
