EnVision LED

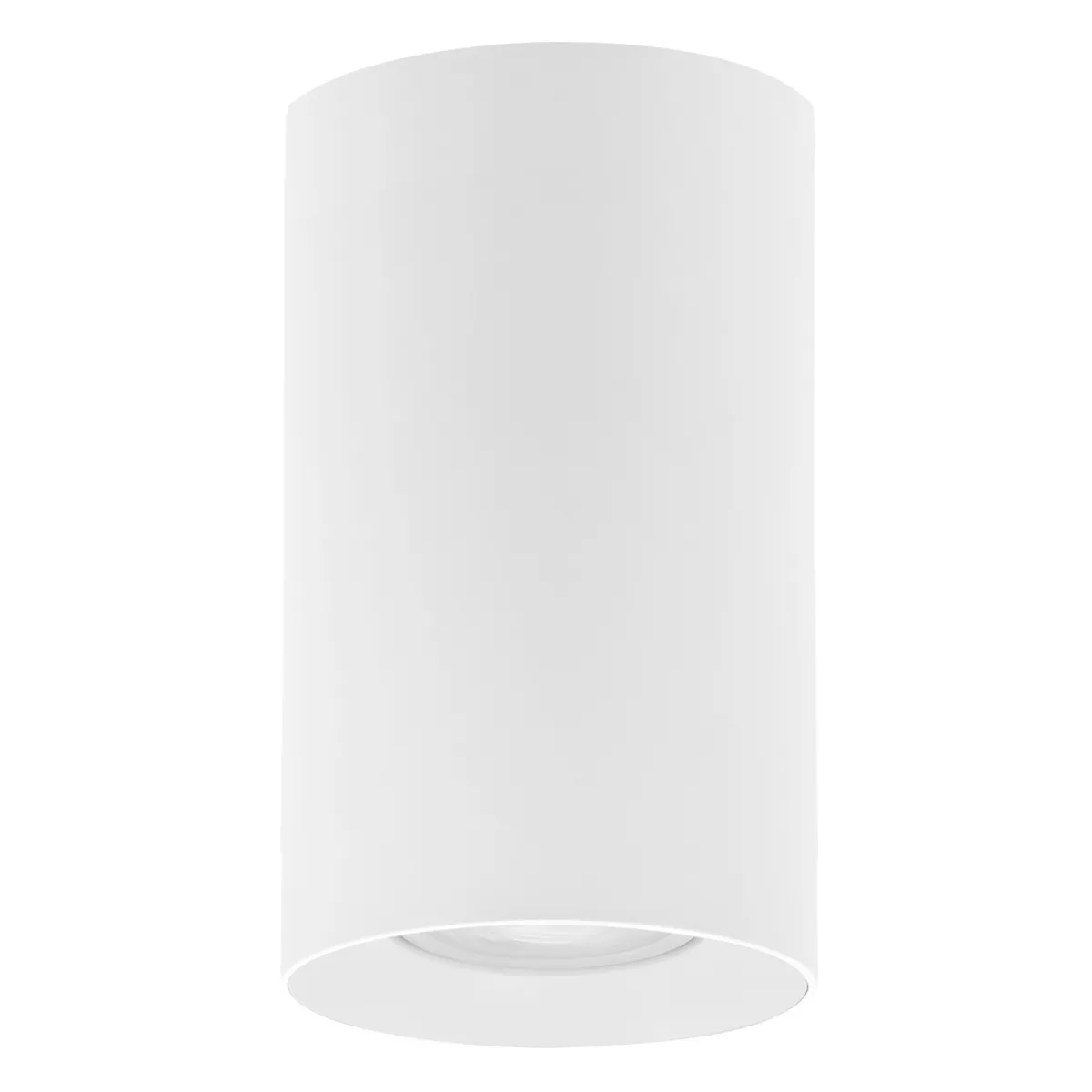

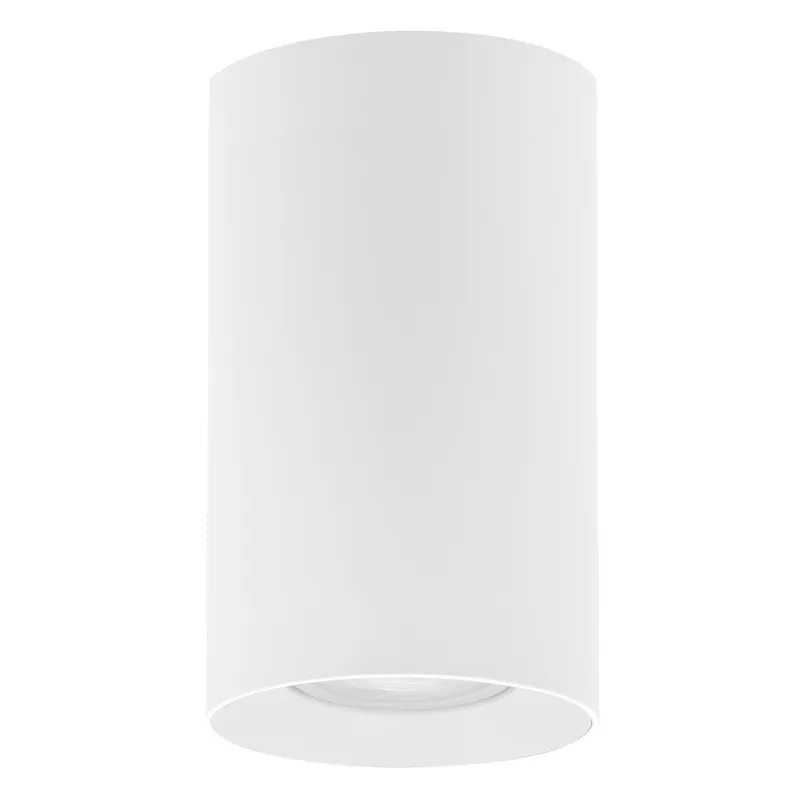

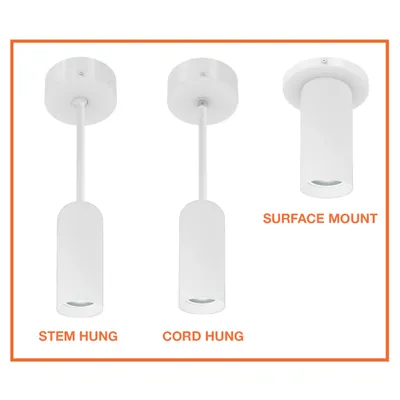

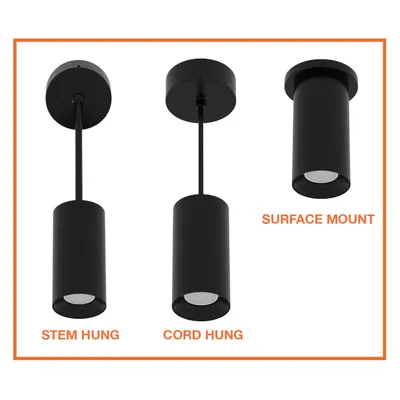

4" ARCY-Line: Cylinder Downlights
New4 part numbers · Cylinders
- Wattage
- 5–25W
- Lumens
- 500–2,500 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V, TRIAC/ELV
- CRI
- 90+
- Finish
- Black, WHite, White
- Warranty
- 5 years

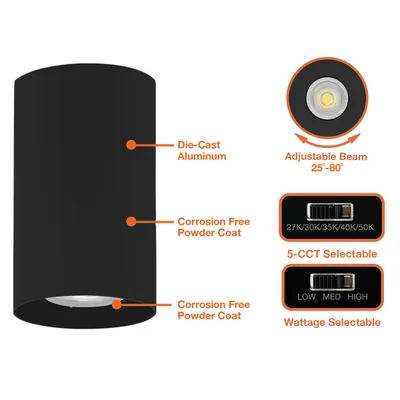

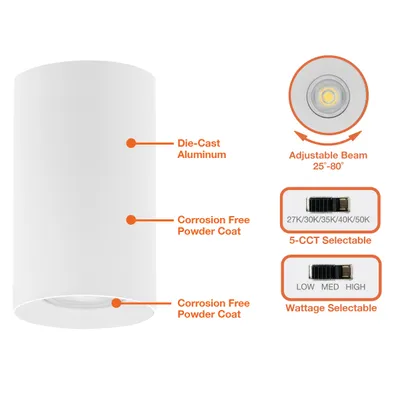

Key features
- 5CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
 | LED-CACM-4-3P15-5CCT-BL-UNV | 4" ARCY-Line: Cylinder Downlights | 5/10/15W | 500/950/1,400 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | Black | — | |
 | LED-CACM-4-3P15-5CCT-WH-UNV | 4" ARCY-Line: Cylinder Downlights | 5/10/15W | 500/950/1,400 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | WHite | — | |
| LED-CACM-4-3P25-5CCT-BL-UNV | 4" ARCY-Line: Cylinder Downlights | 10/20/25W | 1,000/2,000/2,500 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | Black | — | |
| LED-CACM-4-3P25-5CCT-WH-UNV | 4" ARCY-Line: Cylinder Downlights | 10/20/25W | 1,000/2,000/2,500 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-cacm-4-3p15-5cct-wh-unv-05w-60dg.ies
- IES fileled-cacm-4-3p15-5cct-wh-unv-15w-60dg.ies
- IES fileled-cacm-4-3p15-5cct-wh-unv-10w-60dg.ies
- IES fileled-cacm-4-3p15-5cct-wh-unv-10w-35dg.ies
- IES fileled-cacm-4-3p15-5cct-wh-unv-05w-35dg.ies
- IES fileled-cacm-4-3p15-5cct-wh-unv-15w-35dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-15w-35dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-20w-35dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-15w-60dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-25w-35dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-25w-60dg.ies
- IES fileled-cacm-4-3p25-5cct-wh-unv-20w-60dg.ies
