Milwaukee
Milwaukee Test and Measurement
INCLUDES: • (1) HVAC/R Fork Meter with Test Leads and NIST Certificate FEATURES: • Measures current, temperature and voltage and detects voltage for HVAC/R • Measures up to 200 amps and offers a wide voltage range to 1,000 volts AC/DC • Hig
22 part numbers
Overview

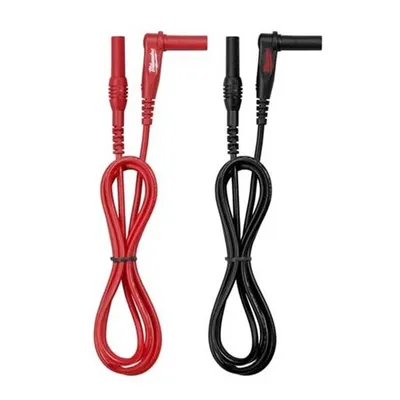

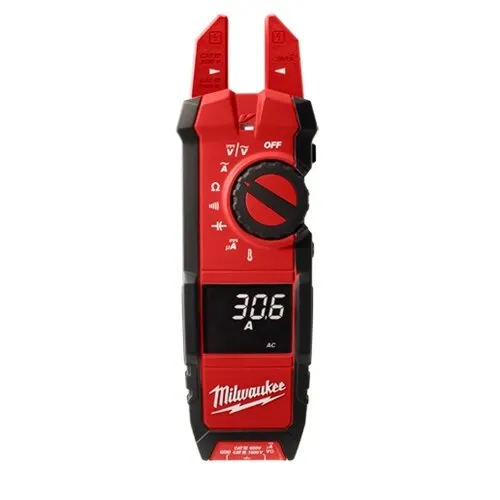

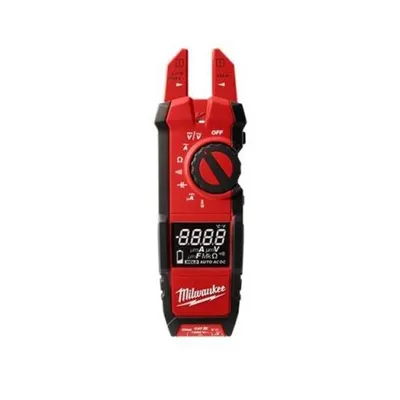

INCLUDES: • (1) HVAC/R Fork Meter with Test Leads and NIST Certificate FEATURES: • Measures current, temperature and voltage and detects voltage for HVAC/R • Measures up to 200 amps and offers a wide voltage range to 1,000 volts AC/DC • High contrast white on black display with backlight for easy reading • True-RMS for accurate measurement in all applications • Thermocouple dual banana input for contact temperature measurement • Wide 63/100 in. jaw opening • 600 uA DC for flame rectification • Built-in voltage detector and LED work light • Rugged over-molding increases durability and user grip SPECIFICATIONS: • AC Voltage - 1000 • DC Voltage - 1000 • Case Included - No • Continuity - Yes • DC Polarity Indicator - Yes • Digital • Impedance - Yes • Material - Plastic, Rugged Over-molding • Maximum Amperage (A) - 200.0 • Meter Type - Clamp • Non-Contact Voltage Detection - No • Manufacturer Warranty - 5 Years The Milwaukee fork meter for HVAC/R (NIST) is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage…
Key features

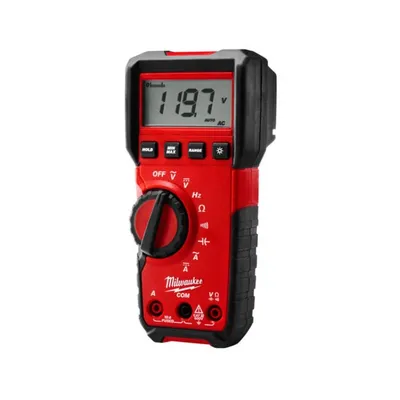

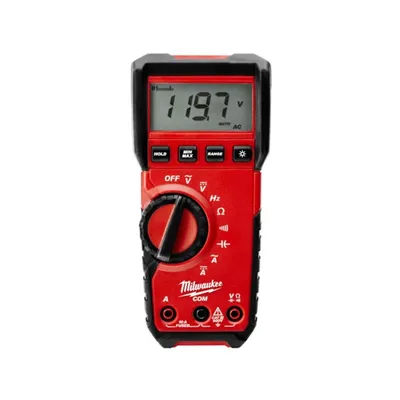

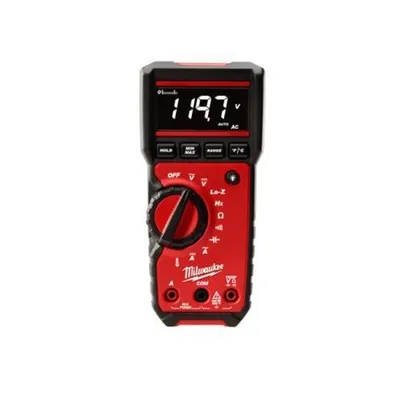

- True-RMS for accurate measurement in all applications
- Wide voltage range to 600 AC /DC volts
- Resistance range from 600 Ohm to 40 mOhm
- Auto range to mV
- Frequency measurements from 10 Hz to 50 kHz
- Measures current to 10 A AC/DC
- Rugged over-molding increases durability and user grip
- Cat III 600 V for increased safety
- Capacitance to 1000 ?F

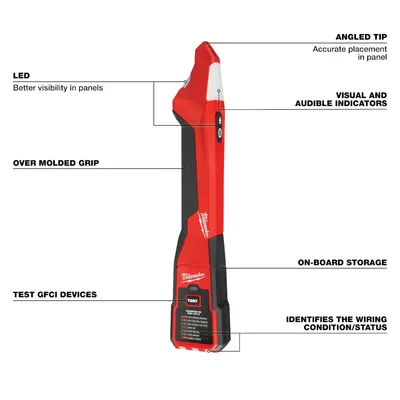

- Over Molded Grip for Durability and Comfort
- Convenient, On-Board Storage for the Transmitter and Receiver
- LED Work Light to Easily Work in Dark Areas for More Visibility
- CAT II 135V Safety Rating

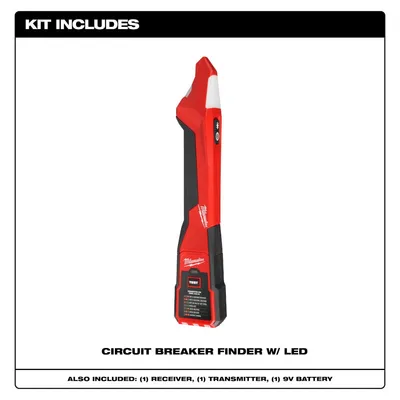

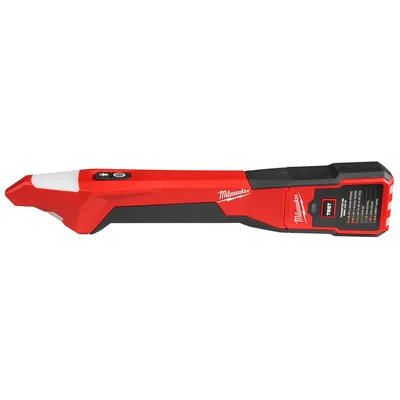

- Green Indicator Light Helps Identify the Correct Breaker
- Angled Tip on Receiver Provides Direction for Placement in a Breaker Box
- Powered by (1) 9V Alkaline Battery
- 2-Year Warranty

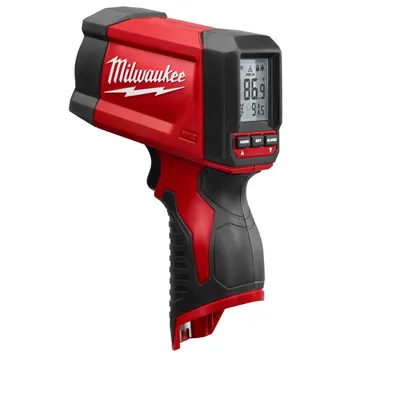

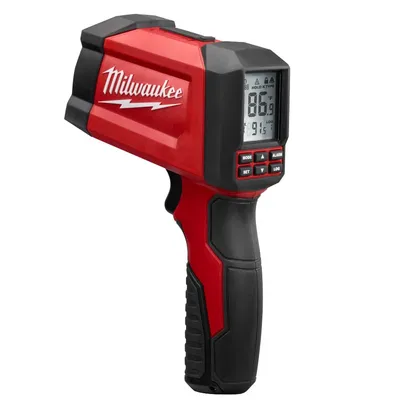

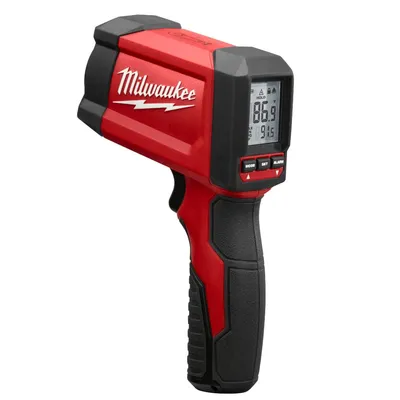

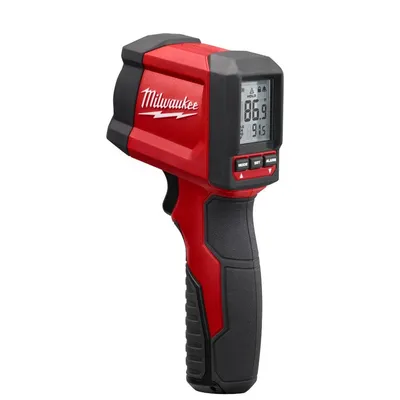

- Measures surface temperatures -40?F to 1472?F for use in a variety of applications
- High performance 30:1 distance-to-spot ratio measures a 1 ft. spot from 30 ft. way

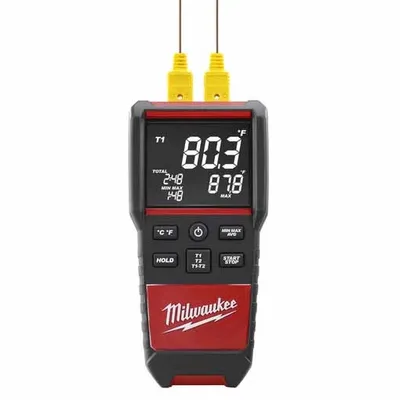

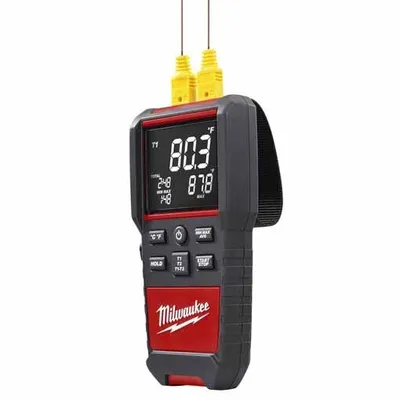

- Additional contact measurement from -40?F to 1022?F for use in a variety of applications
22 products
