Daikin Commercial Heat Pumps

Overview

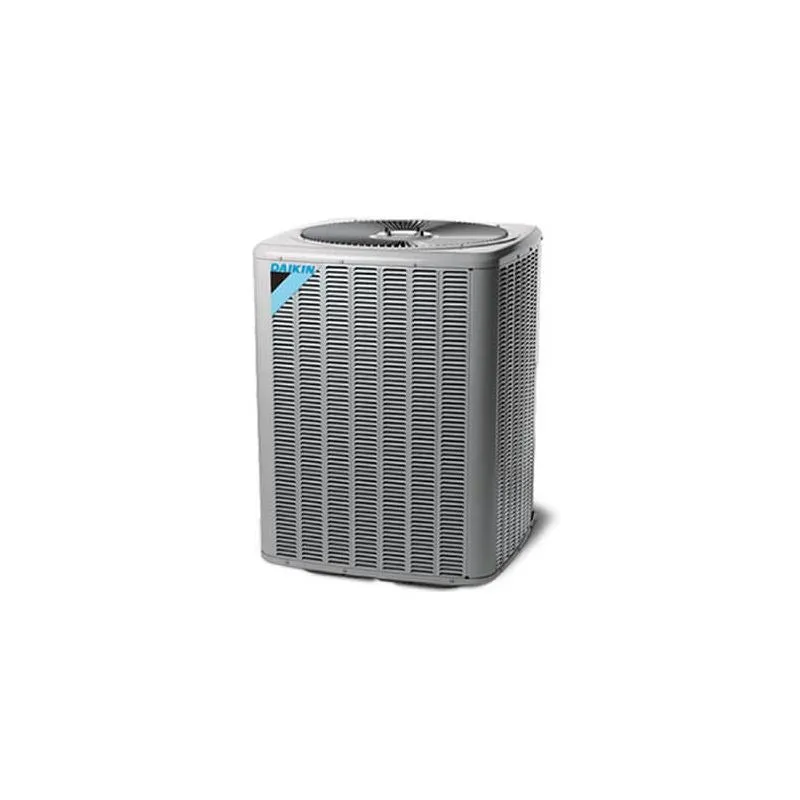

The DAIKIN DH6TE12040 Heat Pump Condensing Unit provides cooling and heating performance in one self-contained unit. Suitable for ground-level or rooftop installations, this 10 ton, 14.3 SEER2 heat pump uses 460v, 3 phase electrical and R32 chlorine-free refrigerant. The design includes a louvered sound control top. Two stage condenser Certified for use with R32 refrigerant Key Features Two stage condenser Scroll compressor Powder painted nickel galvanized steel construction Compatibility System Application Type: Central Split Systems Replaces: DZ14XA1204 Installation Notes Line Set Connection Type: Sweat Liquid Valve Size: 5/8 inch Suction Valve Size: 1 3/8 inch Technical Specifications EER : 11 IEER : 14.1 Depth : 35.5 inches Width : 35.5 inches Height : 41.5 inches Decibel Level (dBA) : 84 Decibels Electrical : 460v 3 Phase 60 Hz Cooling BTU : 115,000 BTU Heating BTU : 100,000 BTU Refrigerant : R32 Phase : Three Phase Compressor Type : Scroll Condenser Stages : Two Stage Max Breaker Size : 35 Amps Min. Breaker Size : 22 Amps Tonnage : 10 Ton Liquid Valve Size : 5/8 inch Refrigerant Charge : 110 oz Suction Valve Size : 1 3/8 inch AHRI Number : 215885511 Avg Coverage Area : 3,000+ Sq Ft Heat Pump Efficiency (HSPF) : 3.5 Line Set Connection Type : Sweat Liquid Line Size : 5/8 inch Max Overcurrent Protection : 25 amps Primary Heating Capacity : 95,001 - 100,000 BTU Suction Line Size : 1 1/8 inch System Application Type : Central Split Systems Voltage : 480 V Product Height…
