Honeywell Current Switches

Overview

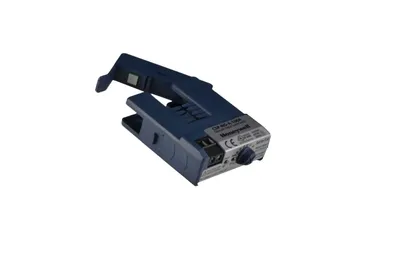

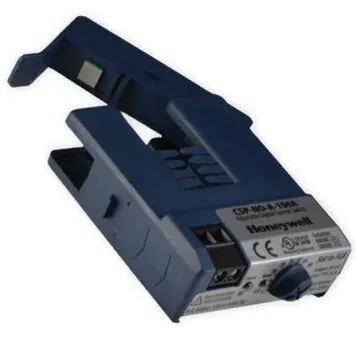

The Honeywell CSP-O-F15-001 is a split core normally open go/no go current switch with a 2.5 amp trip. It provides solid-state output with an adjustable or fixed trip point and is designed for retrofit installations without disconnecting conductors. The sensor accepts large conductors up to 350 MCM (17.3 mm) and can operate continuously on currents up to 250 A, with LED status indication and DIN rail mounting. Split core design for retrofit installation without powering down or disconnecting conductors; integral DIN rail mounting flange Adjustable or fixed trip point with a 2.5 amp trip and very low operating trip settings; solid-state output Accepts up to 350 MCM (17.3 mm) cable and operates up to 250 A continuous; LED status indication Product Highlights Split core normally open current switch, 2.5 amp trip, accepts 350 MCM cable, 250 A continuous Product Information Standard Information Brand : HONEYWELL Manufacturer Part Number : CSP-O-F15-001 Technical Specifications Brand : Honeywell Manufacturer Part Number : CSP-O-F15-001 Product Type : Split-core current switch (electronic) Function : Split core normally open go/no go current switch Trip Point : Adjustable or fixed set point; 2.5 A trip (nominal) Max Continuous Current : 250 A continuous Accepts Cable : Up to 350 MCM (approx. 17.3 mm) Mounting Type : Integral DIN-rail mounting flange Indicator : LED status indication Installation : Split-core for retrofit/existing installations (no need to power down or disconnect…
