Honeywell Humidifier Controls

Overview

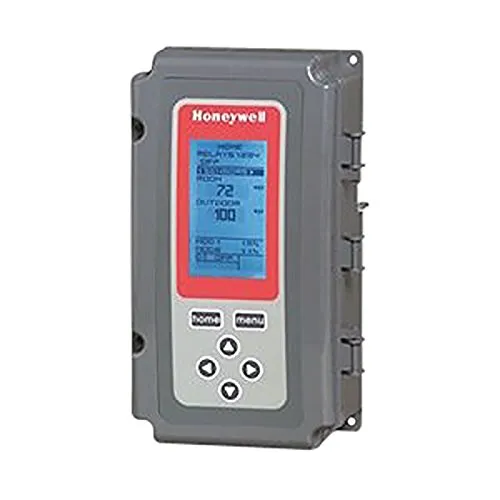

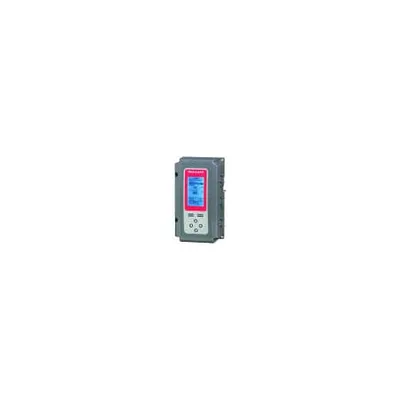

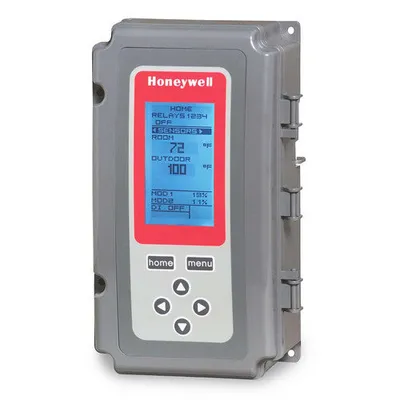

The Honeywell T775U2006 is an electronic universal controller equipped with 1 input. This controller is designed for industrial and scientific applications where precise control of temperature, humidity, pressure, and other variables is required. Remote sensing capabilities Supports multiple input types Switched and proportional outputs Product Highlights This universal controller can handle various conditions, making it suitable for different environments. It features a user-friendly interface, large display, and intuitive programming, ensuring easy setup and reliable performance. Product Information Standard Information Brand : Honeywell Part Type : Humidity Control Temperature Range : -40 to 248 degrees Fahrenheit Technical Specifications MPN : T775U2006 Analog Output : 2 Relay Outputs : 2 SPDT Sensor Inputs : 2 Voltage : 24 Vac or 120/240 Vac Frequency : 50 Hz and 60 Hz Contact Ratings 24V : 10.0 A Resistive Contact Ratings 120V : 9.8 AFL, 1/2 hp, 58.8 ALR, 125 VA Pilot Duty Contact Ratings 240V : 4.9 AFL, 1/2 hp, 125 VA Pilot Duty, 29.4 ALR Dimensions : 8.15625 inches high x 4.40625 inches wide x 2.9375 inches deep Sensor Element : 1097 ohms PTC at 77°F (25°C) Number of Sensor Inputs : 2 Maximum Distance to Sensor : Up to 1,000 feet Setpoint Temperature Range : -40°F to 248°F Accuracy : ±1°F at 77°F Differential Temperature : 1°F to 150°F Operating Ambient Temperature Range : -40°F to 140°F @ 60 Hz Floating Output : 1 Output Reset : Yes
