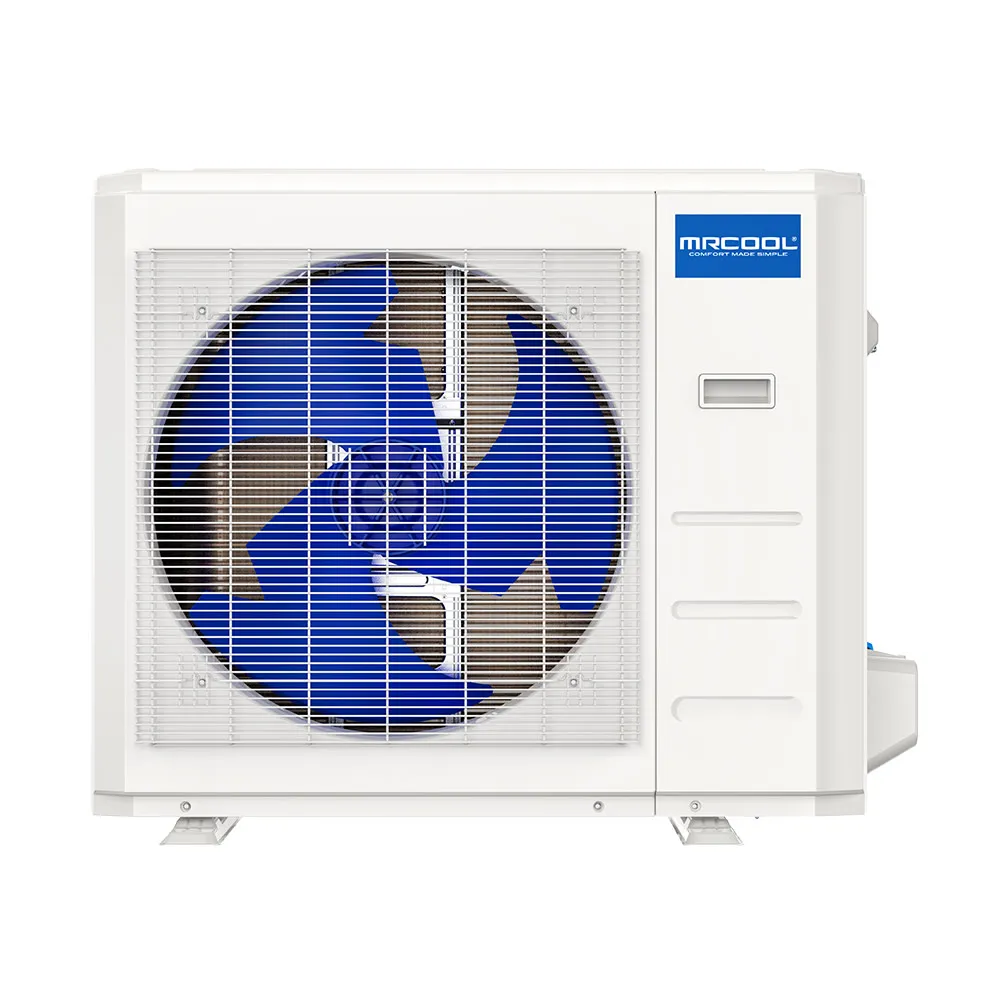

MRCOOL DIY 4th Gen Single-Zone 36k Condenser 230V

DIY-36-HP-C-230C25

36,000 BTU · 18.3 SEER2 · 25 ft · 208/230V · R-410A

Part of DIY 4th Gen – Line Sets & Couplers

Cooling capacity
36,000 BTU3 tons
Room size
Up to 1500
Efficiency
18.3 SEER28 HSPF2
Power
208/230V35A breaker
Refrigerant
R-410A
Length
25 ft

$1,700.00 each

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

About this product

The MRCOOL® 4th Generation DIY® 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY® Series. This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is built into a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL® Pre-Charged Quick Connect® Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me® function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. Confidence comes standard with the MRCOOL® DIY® 36K system, featuring 7-year compressor and 5-year parts coverage, plus eligibility to enroll in the MRCOOL® Care Program.

  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty

Documents & manuals

Specifications

Capacity & efficiency
TypeLine set / coupler — heat pump (heats & cools)
SeriesDIY 4th Gen
Cooling capacity36,000 BTU
Heating capacity36,000 BTU
Nominal size3 tons
ZonesSingle zone
CoverageUp to 1500
SEER218.3
EER28.7
HSPF28
Airflow673.53/502.94/367.65 CFM
Sound level52/45/34 dBA
Electrical
Voltage208/230V
Phase1-phase
Min. circuit ampacity (MCA)28 A
Max. breaker (MOP)35 A
Inverter compressorYes
Wi-Fi / app controlYes
Refrigerant & line set
RefrigerantR-410A
Factory charge111.1 oz
Line set25 ft
Max. line length75 ft
Liquid line3/8"
Suction line5/8"
InstallationDIY — pre-charged quick-connect line set, no vacuum pump needed
Physical
Dimensions (in)30.12 W × 11.93 D × 21.85 H
Weight65.7 lb
Shipping weight186 lb
ColorWhite
Certifications, warranty & ordering
ENERGY STARYes
AHRI certifiedYes
Safety listingUL
Compressor warranty7 years
Parts warranty5 years
UPC810063868543
