MRCOOL

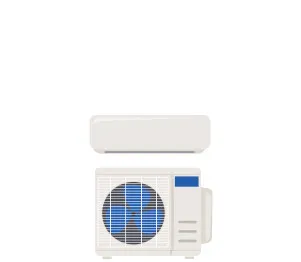

MRCOOL DIY 36K Mini-split Bundle
DIY-36-HP-WM-230D25-O
36,000 BTU · 18 SEER2 · 208/230V · R-454B
Part of DIY 5th Gen – Complete Systems
- Cooling capacity
- 36,000 BTU3 tons
- Room size
- Up to 1,550 sq ft
- Efficiency
- 18 SEER28.5 HSPF2
- Power
- 208/230V35A breaker
- Refrigerant
- R-454B25 ft line set
- Install
- DIYPre-charged, no vacuum
$3,769.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. This is a DIY system: the pre-charged line set connects without a vacuum pump or gauges.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
What's included
Condenser (outdoor unit)
MRCOOL 36k DIY 5th Generation Mini-Split Condenser 230vDIY-36-HP-C-230D25-O
36,000 BTU · 18 SEER2 · 208/230V · R-454B
Air handler (indoor unit)
MRCOOL 36k DIY 5th Generation Mini-split Air Handler 230vDIY-36-HP-WMAH-230D25-O
36,000 BTU · 208/230V
Line set
25 ft pre-charged quick-connect line set (3/8" × 5/8")
Need a different length? See line sets & couplers.
About this product
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Documents & manuals
Specifications
| Type | Complete system — heat pump (heats & cools) |
|---|---|
| Series | DIY 5th Gen |
| Cooling capacity | 36,000 BTU |
| Heating capacity | 36,000 BTU |
| Nominal size | 3 tons |
| Zones | Single zone |
| Coverage | Up to 1,550 sqft. |
| SEER2 | 18 |
| EER2 | 8.5 |
| HSPF2 | 8.5 |
| Sound level | 60.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 33 A |
| Max. breaker (MOP) | 35 A |
| Inverter compressor | Yes |
| Wi-Fi / app control | Yes |
| Refrigerant | R-454B |
|---|---|
| Factory charge | 109.7 oz |
| Line set | 25 ft included |
| Max. line length | 213.2 ft |
| Liquid line | 3/8" |
| Suction line | 5/8" |
| Installation | DIY — pre-charged quick-connect line set, no vacuum pump needed |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 152.12 lb |
| Shipping weight | 183.42 lb |
| Color | White |
| AHRI certified | Yes |
|---|---|
| Safety listing | UL, ETL |
| Compressor warranty | 7 years |
| Parts warranty | 5 years |
| UPC | 840255588577 |
