MRCOOL

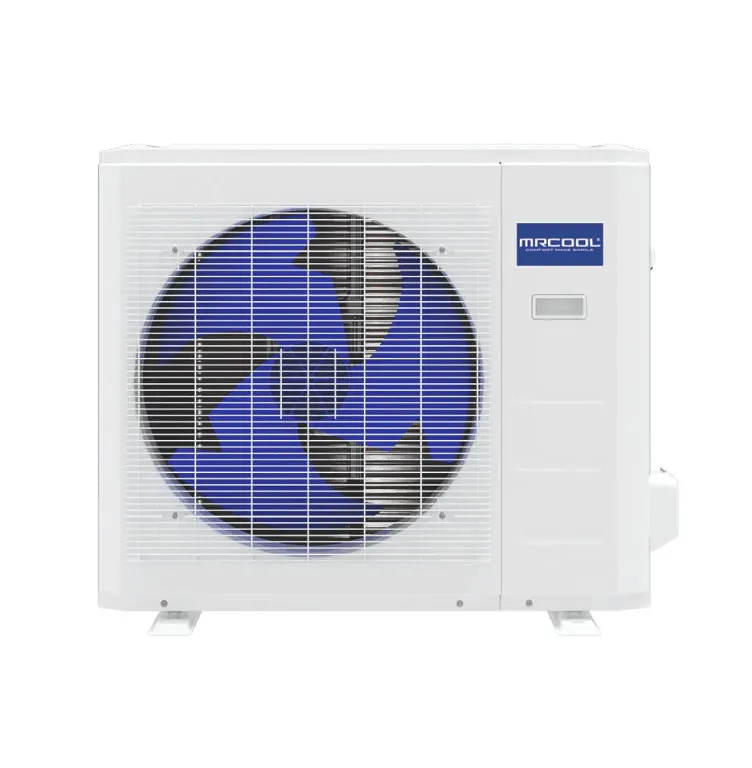

MRCOOL Olympus ENERGY STAR 24,000 BTU 2 Ton Mini-Split Heat Pump Condenser - 230V/60Hz
O-ES-24-HP-C-230C-O1
24,000 BTU · 21 SEER2 · 208/230V · R-454B
Part of Olympus 4th Gen – Condensers
- Cooling capacity
- 24,000 BTU2 tons
- Room size
- Up to 1050
- Efficiency
- 21 SEER213.5 HSPF2
- Power
- 208/230V25A breaker
- Refrigerant
- R-454B
$1,714.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
The MRCOOL® OLYMPUS E-STAR® 24k Series condenser is a powerful and efficient solution for heating and cooling areas up to 1,050 square feet, making it perfect for medium to large rooms, home offices, garages, and more. Its compact size simplifies installation, even in limited or unique spaces. Equipped with Wi-Fi and the MRCOOL® Smart HVAC app, you can control your system from anywhere using your smartphone or tablet. For those who prefer more direct control, the included remote control provides quick access to all settings. This air handler is designed with energy efficiency in mind, offering excellent SEER2 and EER2 ratings of 23 and 14, respectively, along with a HSPF2-4 rating of 11.7. These features help you save on energy bills while maintaining consistent and comfortable temperatures. The outdoor fan operates quietly at just 51.5 dB, ensuring minimal noise and disruption. The system uses R-454B refrigerant, an environmentally friendly choice that delivers optimal performance while helping to reduce the system's carbon footprint. In addition, the MRCOOL® OLYMPUS E-STAR® 24k Series is compatible with voice control through Amazon Alexa and Google Assistant, allowing you to adjust settings hands-free. The unit is backed by a 7-year compressor coverage and a 5-year parts warranty, ensuring durable performance, cutting-edge features, and lasting peace of mind.
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Olympus 4th Gen |
| Cooling capacity | 24,000 BTU |
| Heating capacity | 29,000 BTU |
| Nominal size | 2 tons |
| Coverage | Up to 1050 |
| SEER2 | 21 |
| EER2 | 13 |
| HSPF2 | 13.5 |
| Sound level | 61.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 24.9 A |
| Max. breaker (MOP) | 25 A |
| Inverter compressor | Yes |
| Refrigerant | R-454B |
|---|---|
| Factory charge | 63.49 oz |
| Max. line length | 164 ft |
| Liquid line | 3/8" |
| Suction line | 5/8" |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 130.29 lb |
| Shipping weight | 141.31 lb |
| Color | White |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Safety listing | UL, ETL |
| Compressor warranty | 7 years |
| Parts warranty | 5 years |
| UPC | 840255587655 |
