MRCOOL

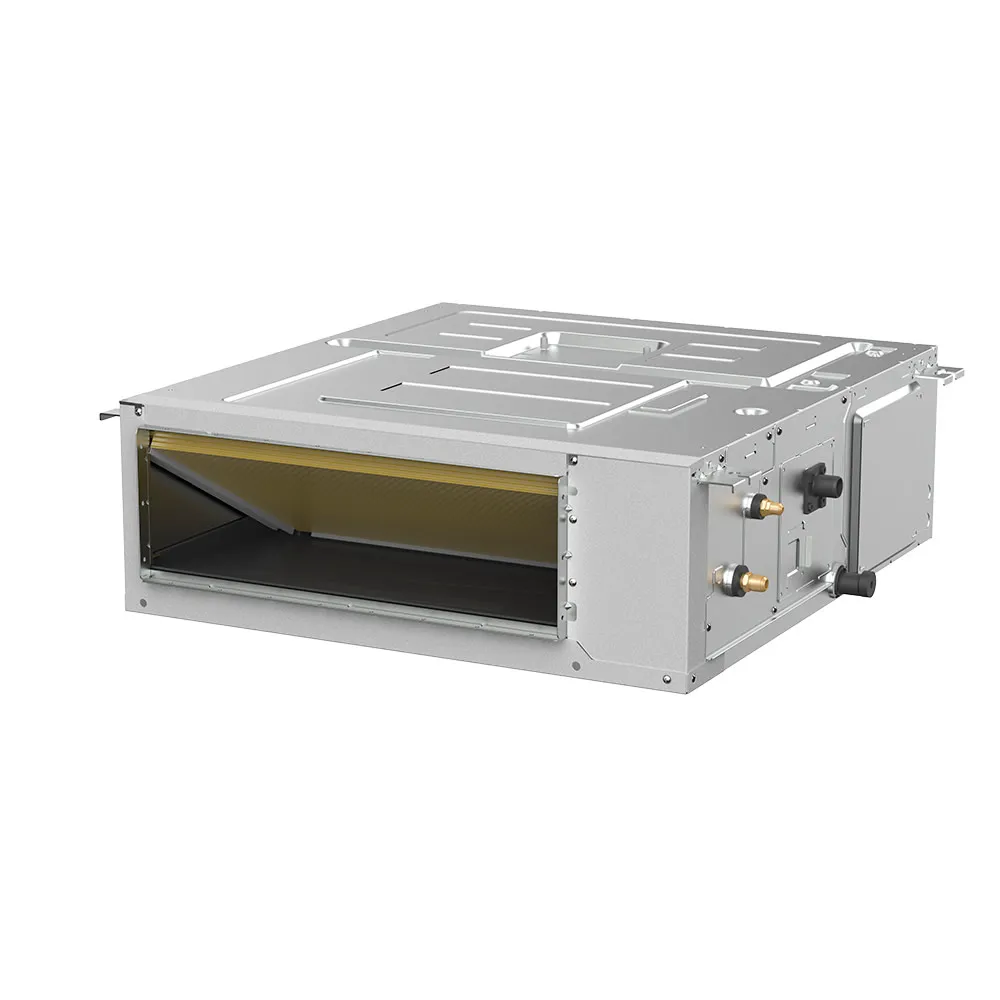

MRCOOL Olympus 24,000 BTU 2 Ton Ducted Mini-Split Air Handler - 230V/60Hz
DUCT-24HP-230B-O
24,000 BTU · 208/230V · R-454B
Part of Olympus Duct – Air Handlers
- Cooling capacity
- 24,000 BTU2 tons
- Room size
- Up to 1050
- Power
- 208/230V15A breaker
- Refrigerant
- R-454B
$1,038.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Build a multi-zone system with this air handler →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
The MRCOOL® OLYMPUS 24K DUCT Air Handler offers powerful and efficient heating and cooling for areas up to 1,050 square feet, making it an excellent choice for larger bedrooms, home offices, and compact commercial spaces. Its low-profile ceiling-mounted design allows for a flush installation that blends effortlessly into any space, maintaining a clean and contemporary look. Ideal for both residential and light commercial use, this air handler is engineered for flexibility and style—delivering high performance while preserving valuable floor and wall space. Whether you're outfitting a modern home or a small office, it’s designed to meet your comfort needs without disrupting your room’s layout or design. For convenient operation, the unit includes both a wired wall controller and a handheld remote, offering flexible options for temperature control whether you're working, relaxing, or entertaining. No need to interrupt your day to adjust the settings—just set your ideal climate with ease. Environmentally responsible, the system uses R-454B refrigerant, which offers strong performance with a significantly lower global warming potential. This helps reduce your carbon footprint while keeping energy efficiency and indoor comfort at the forefront. The MRCOOL® OLYMPUS 24K DUCT Air Handler is supported by 7-year compressor coverage and a 5-year parts warranty, providing long-term reliability and peace of mind. For those seeking an energy-efficient, discreet, and modern comfort solution, this system delivers performance without compromise.
Documents & manuals
Specifications
| Type | Air handler (indoor unit) |
|---|---|
| Series | Olympus Duct |
| Cooling capacity | 24,000 BTU |
| Nominal size | 2 tons |
| Coverage | Up to 1050 |
| Sound level | 40/40/37/35/29.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 3 A |
| Max. breaker (MOP) | 15 A |
| Refrigerant | R-454B |
|---|---|
| Liquid line | 3/8" |
| Suction line | 5/8" |
| Indoor unit / mounting | Ducted |
|---|---|
| Dimensions (in) | 39.37 W × 29.53 D × 9.65 H |
| Weight | 80.47 lb |
| Shipping weight | 91.93 lb |
| Color | Metal |
| Safety listing | UL, ETL |
|---|---|
| Parts warranty | 5 years |
| UPC | 840255587693 |
