MRCOOL

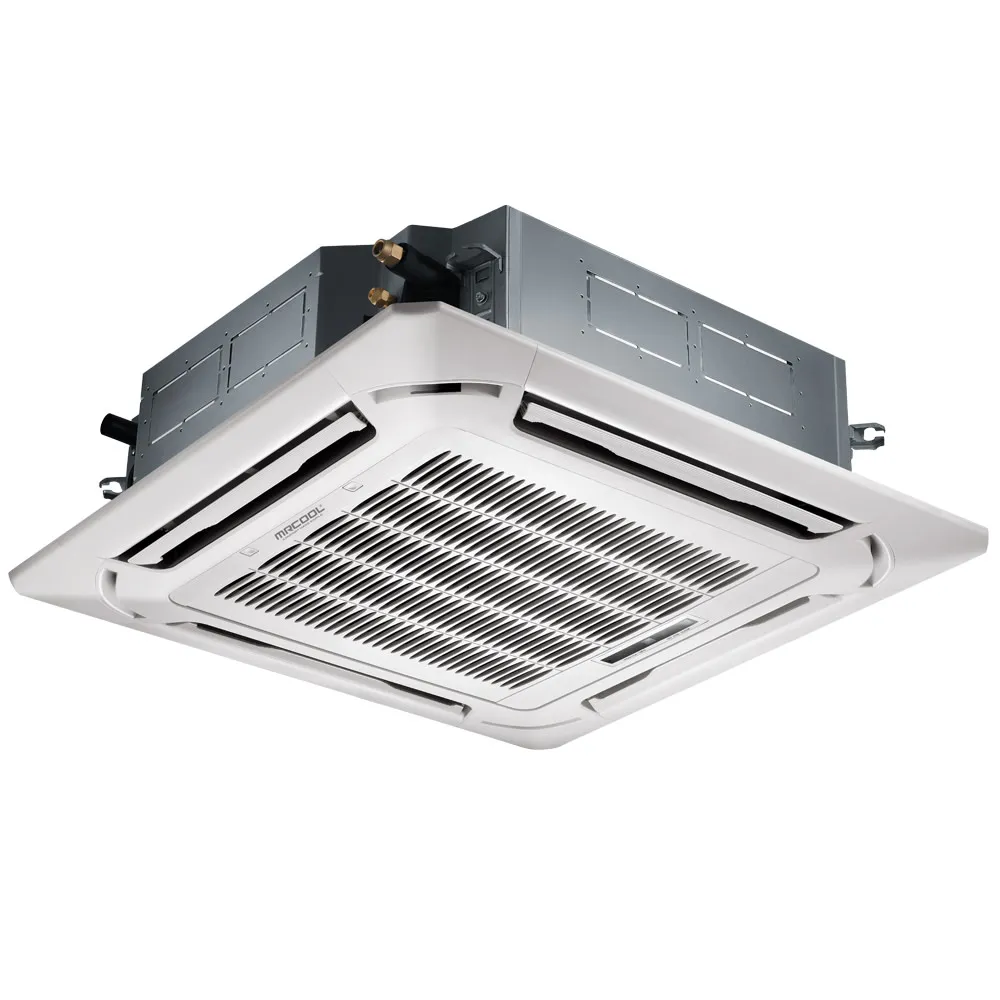

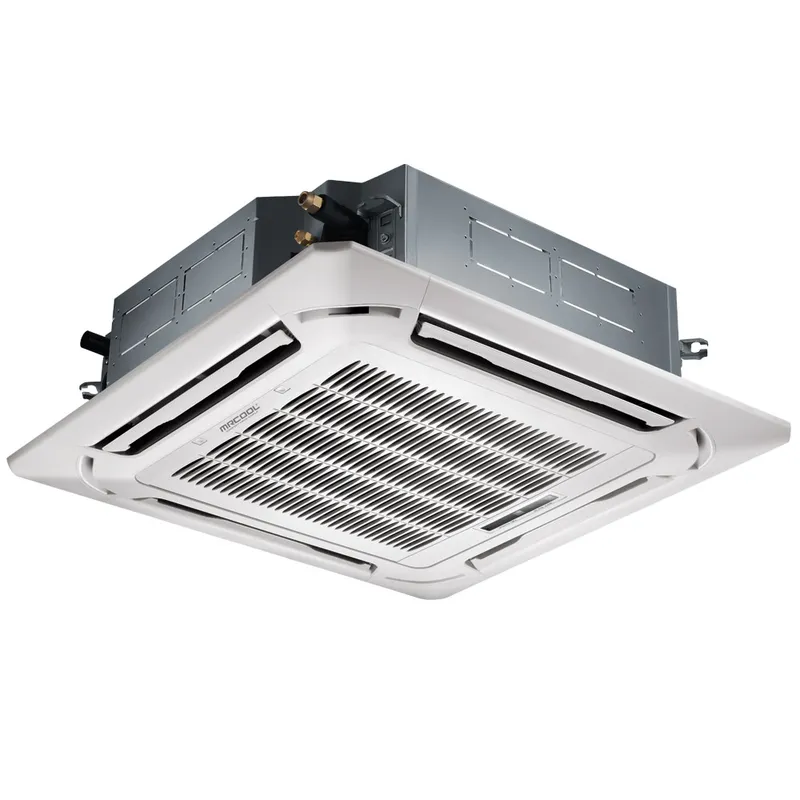

MRCOOL Olympus 2nd Gen 24,000 BTU 2 Ton Ductless Mini-Split Ceiling Cassette with Panel - 230V/60HZ
CASSETTE24HP-230B-P
Special · Olympus Sale
Manufacturer promotion — call or request a quote for sale pricing, while supplies last.
24,000 BTU · 208/230V · R-410A
Part of Olympus Multi – Air Handlers
- Cooling capacity
- 24,000 BTU2 tons
- Room size
- 2000
- Power
- 208/230V15A breaker
- Refrigerant
- R-410A
Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Build a multi-zone system with this air handler →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
Documents & manuals
Specifications
| Type | Air handler (indoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Olympus Multi |
| Cooling capacity | 24,000 BTU |
| Nominal size | 2 tons |
| Zones | Single zone |
| Coverage | 2000 |
| Airflow | 683.93/613.30/540.32 CFM |
| Sound level | 48.5/46.5/40.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 2.5 A |
| Max. breaker (MOP) | 15 A |
| Inverter compressor | Yes |
| Refrigerant | R-410A |
|---|---|
| Liquid line | 3/8" |
| Suction line | 5/8" |
| Indoor unit / mounting | Ceiling |
|---|---|
| Dimensions (in) | 32.68 W × 32.68 D × 8.07 H |
| Weight | 47.18 lb |
| Shipping weight | 55 lb |
| Color | White |
| AHRI certified | Yes |
|---|---|
| Safety listing | UL |
| Parts warranty | 5 years |
| UPC | 840255581578 |
