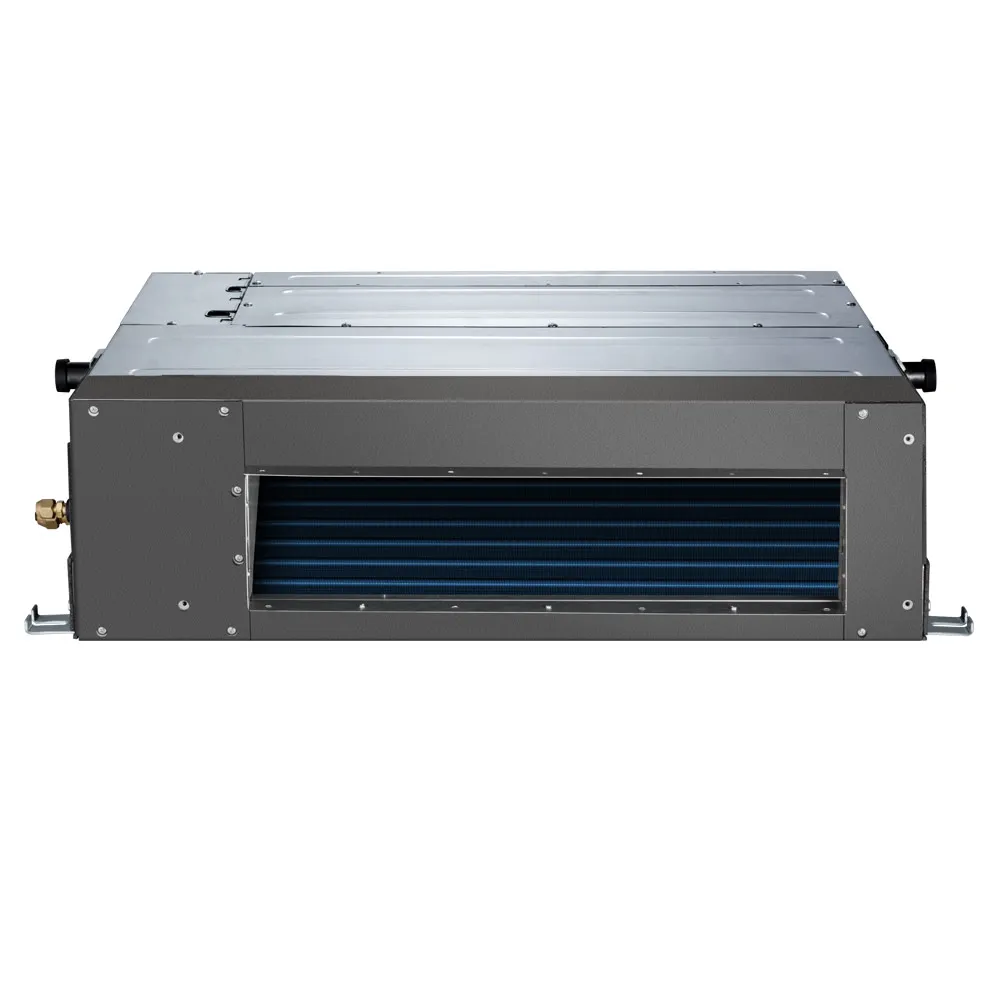

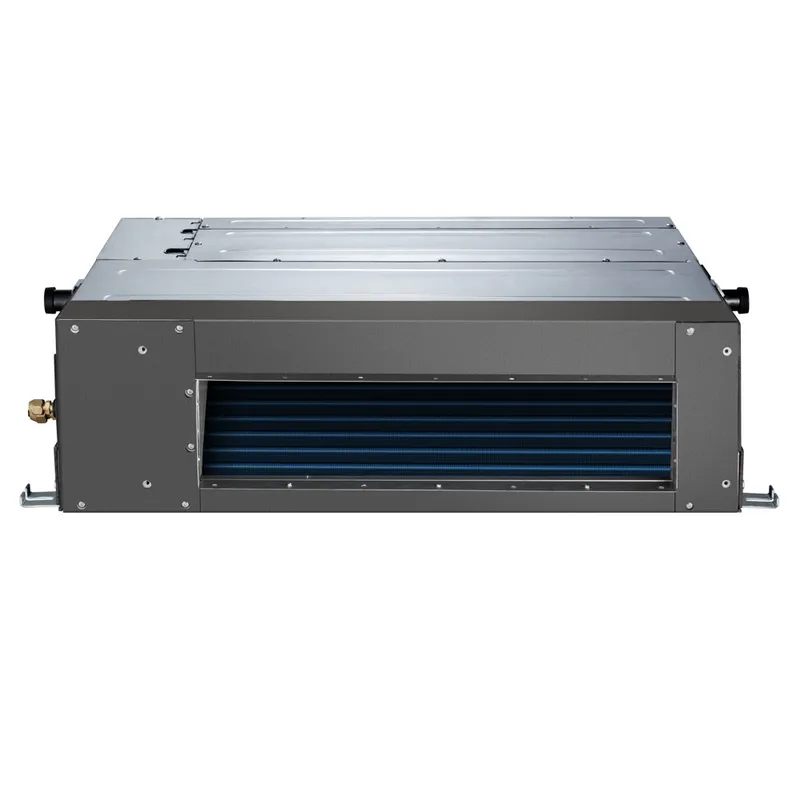

MRCOOL Olympus 12,000 BTU 1 Ton Ducted Mini-Split Air Handler - 230V-60HZ — Scratch & Dent, Grade A

1 / 21

MRCOOL

MRCOOL Olympus 12,000 BTU 1 Ton Ducted Mini-Split Air Handler - 230V-60HZ — Scratch & Dent, Grade A

SD-DUCT-12HP-230-GA

Clearance — Scratch & dent · Grade A

Scratch-and-dent unit (Grade A): cosmetic blemishes or damaged packaging. Call us for condition details. 1 available as of 2026-10-01 — confirm before ordering.

New version: DUCT-12HP-230

12,000 BTU · 208/230V · R-410A

Part of Scratch & Dent – Air Handlers

Cooling capacity
12,000 BTU1 ton
Room size
1000
Power
208/230V15A breaker
Refrigerant
R-410A

Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.

Request a QuoteSpec sheet

Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.

Build a multi-zone system with this air handler →

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

Documents & manuals

Specifications

Capacity & efficiency
TypeAir handler (indoor unit) — heat pump (heats & cools)
SeriesOlympus Multi
Cooling capacity12,000 BTU
Nominal size1 ton
Coverage1000
Airflow176.57/282.52/353.15 CFM
Sound level40/38/33 dBA
Electrical
Voltage208/230V
Phase1-phase
Min. circuit ampacity (MCA)1.3 A
Max. breaker (MOP)15 A
Inverter compressorYes
Refrigerant & line set
RefrigerantR-410A
Liquid line1/4"
Suction line1/2"
Physical
Indoor unit / mountingDucted
Dimensions (in)27.56 W × 19.92 D × 7.87 H
Weight39.24 lb
Shipping weight49 lb
ColorWhite
Certifications, warranty & ordering
AHRI certifiedYes
Parts warranty5 years

More in Scratch & Dent – Air Handlers
