MRCOOL

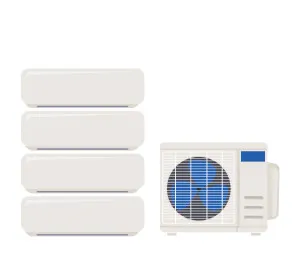

MRCOOL 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v — Scratch & Dent, Grade A
SD-DIY-MULTI4-27HP230D-O-GA
Clearance — Scratch & dent · Grade A
Scratch-and-dent unit (Grade A): cosmetic blemishes or damaged packaging. Call us for condition details. 6 available as of 2026-10-01 — confirm before ordering.
New version: DIY-MULTI4-27HP230D-O — $2,100.00 new
26,000 BTU · up to 4 zones · 23 SEER2 · 208/230V · R-454B
Part of Scratch & Dent – Condensers
- Cooling capacity
- 26,000 BTU2.25 tons
- Room size
- Up to 1,125 sq ft
- Zones
- Up to 4
- Efficiency
- 23 SEER29.5 HSPF2
- Power
- 208/230V25A breaker
- Refrigerant
- R-454B25 ft line set
$1,785.00 eachNew $2,100.0015% off
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. This is a DIY system: the pre-charged line set connects without a vacuum pump or gauges.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | DIY 5th Gen |
| Cooling capacity | 26,000 BTU |
| Heating capacity | 26,000 BTU |
| Nominal size | 2.25 tons |
| Zones | Up to 4 |
| Coverage | Up to 1,125 sqft. |
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2 | 9.5 |
| Sound level | 61 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 23 A |
| Max. breaker (MOP) | 25 A |
| Inverter compressor | Yes |
| Wi-Fi / app control | Yes |
| Refrigerant | R-454B |
|---|---|
| Factory charge | 84.66 oz |
| Line set | 25 ft included |
| Max. line length | 221.4 ft |
| Liquid line | 1/4" |
| Suction line | 3/8" |
| Installation | DIY — pre-charged quick-connect line set, no vacuum pump needed |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 140.21 lb |
| Shipping weight | 151.02 lb |
| Color | White |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Compressor warranty | 7 years |
| Parts warranty | 5 years |
