MRCOOL

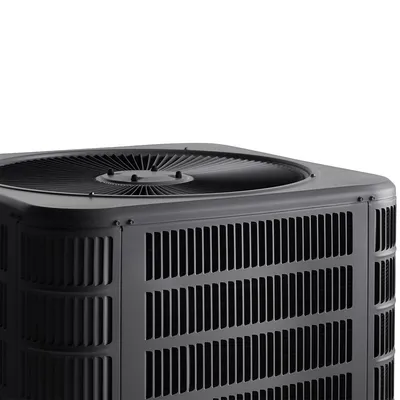

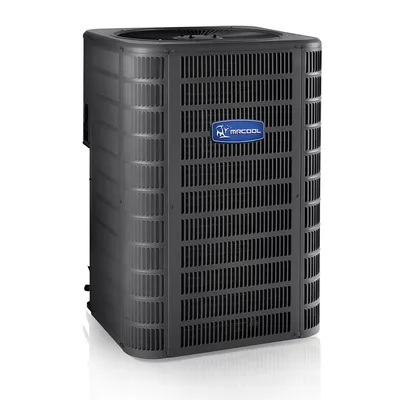

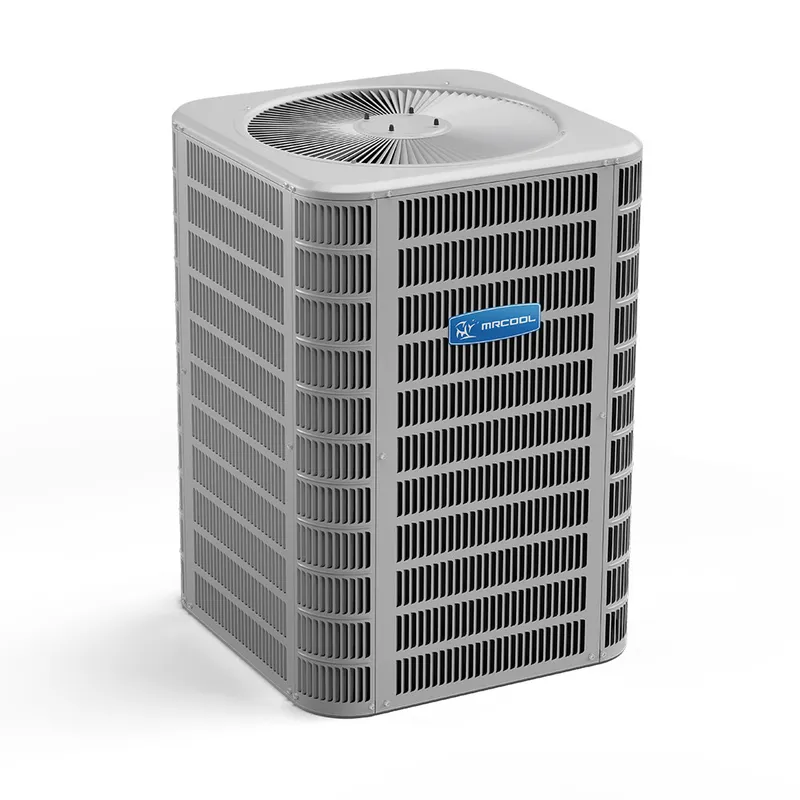

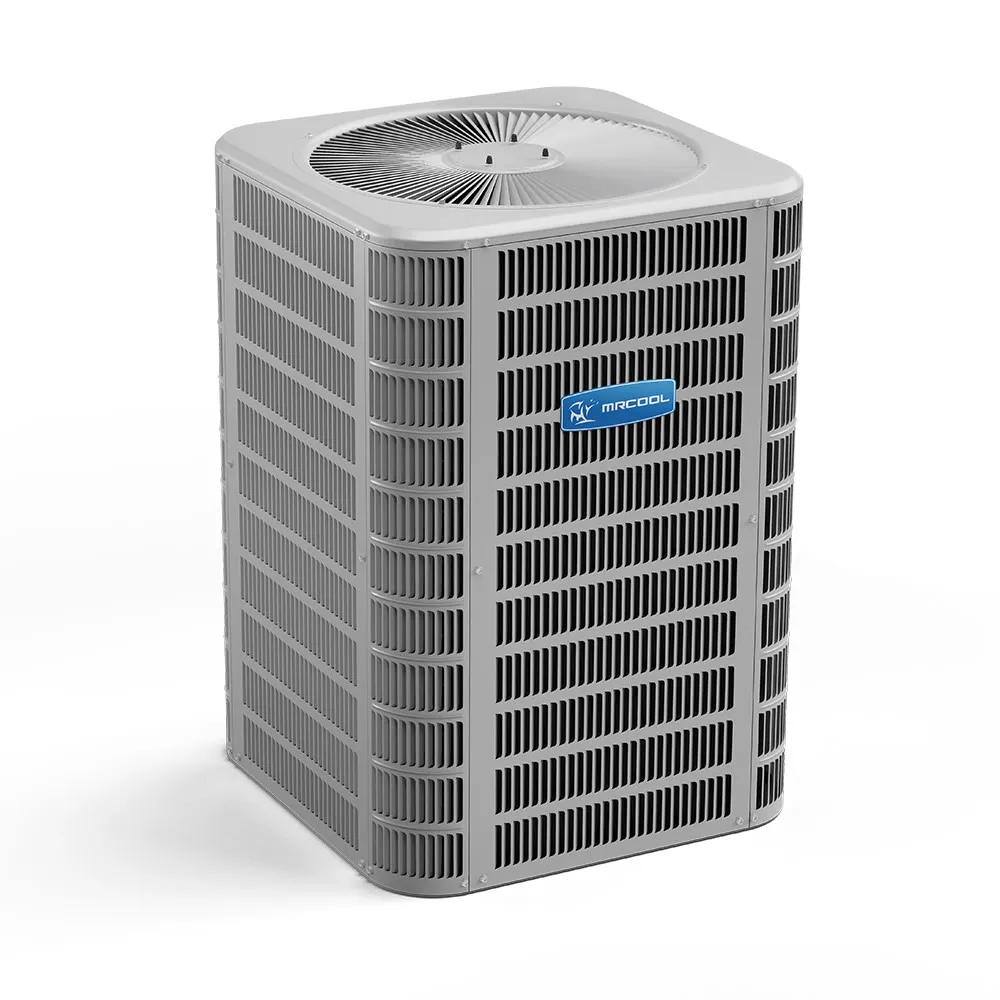

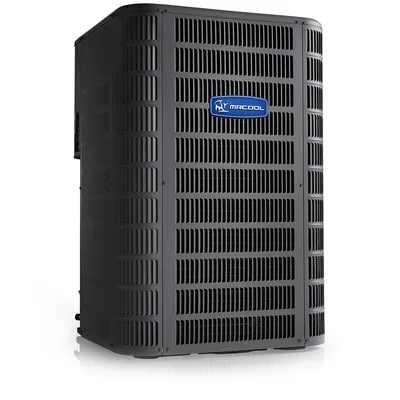

MRCOOL 1.5 Ton up to 16 SEER Split System A/C Condenser
MAC16018A
18,000 BTU · 208/230V · R-410A
Part of Signature Split Air Conditioner – Condensers
- Cooling capacity
- 18,000 BTU1.5 tons
- Room size
- 750
- Power
- 208/230V20A breaker
- Refrigerant
- R-410A15253550 ft line set
$1,332.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 1.5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
- CoolGuard total corrosion protection technology designed coil

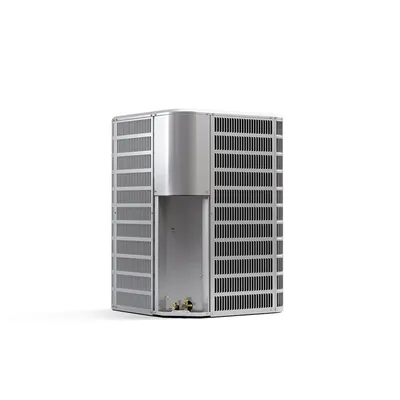

- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set

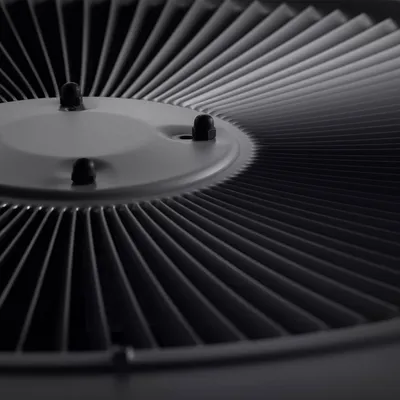

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) |
|---|---|
| Series | Signature Split Air Conditioner |
| Cooling capacity | 18,000 BTU |
| Nominal size | 1.5 tons |
| Coverage | 750 |
| Heats down to | -20°F outdoor |
| Airflow | 600-650 CFM |
| Sound level | 73 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 11.9 A |
| Max. breaker (MOP) | 20 A |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 73 oz |
| Line set | 15253550 ft included |
| Max. line length | 50 ft |
| Liquid line | 3/8" |
| Suction line | 3/4" |
| Dimensions (in) | 24.25 W × 29 D × 24.25 H |
|---|---|
| Weight | 134 lb |
| Color | Gray |
| AHRI certified | Yes |
|---|---|
| Safety listing | ETL |
| Parts warranty | 5 years |
| UPC | 810512030934 |
