MRCOOL

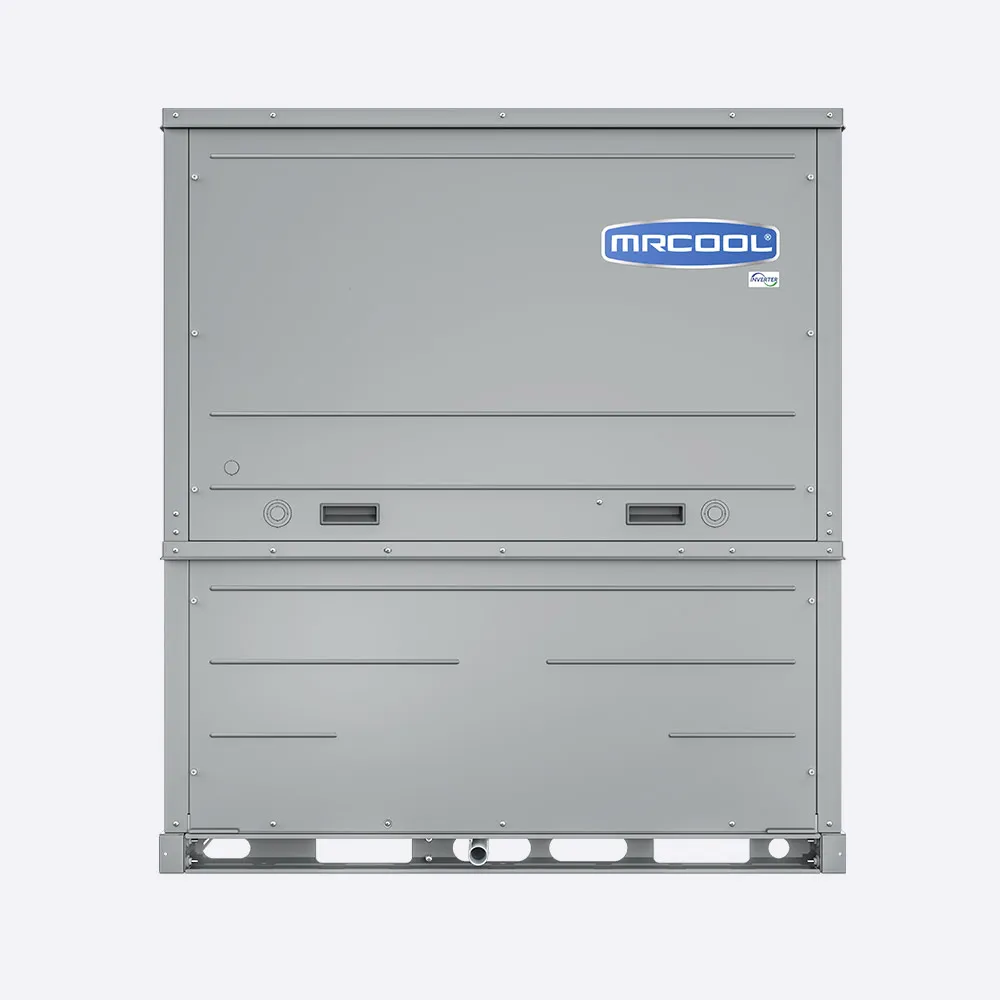

MRCOOL 24k BTU 18 SEER2 DC Inverter Packaged Heat Pump-R410A
MDPH180244
Special · No-MAP closeout
Manufacturer promotion — call or request a quote for sale pricing, while supplies last.
24,000 BTU · 17.8 SEER2 · 208/230V · R410A
Part of Universal Packaged
- Cooling capacity
- 24,000 BTU2 tons
- Efficiency
- 17.8 SEER2
- Power
- 208/230V40A breaker
- Refrigerant
- R410A
Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Experience superior heating and cooling along with reduced utility costs and less environmental impact with the MRCOOL® DC Inverter Package Heat Pump. Without relying on fossil fuels to heat or cool your home, this energy-efficient ducted system provides comfort in one conveniently packaged outdoor unit. The variable speed DC compressor aids in the efficiency by generating less power loss, and since the motor doesn’t turn on and off regularly, the unit operates at a much lower noise level. This results in the room temperature being continuously regulated and adjusted to meet individual preferences. The adjustable speeds of the compressor and DC motor create a wide range of cooling and heating operation between -22°F to 125°F. The unit offers a flexible air return from either the side or the bottom. This allows customers to install the system with a traditional installation method or on a rooftop. There are also optional heat kits available if needed. Not only does the package unit quickly detect indoor and outdoor temperatures to adapt to load demands faster, but it is also equipped with intelligent defrosting technology that can judge frost conditions and improve heating performance during the winter. Feel confident in your investment of the MRCOOL® DC Inverter Package Heat Pump thanks to its 10 year warranties on labor, parts, and the compressor–all of which require no tedious registration process.
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
Documents & manuals
Specifications
| Type | Packaged unit — heat pump (heats & cools) |
|---|---|
| Series | Universal Packaged |
| Cooling capacity | 24,000 BTU |
| Heating capacity | 24,000 BTU |
| Nominal size | 2 tons |
| SEER2 | 17.8 |
| EER2 | 11 |
| Sound level | 63 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 35 A |
| Max. breaker (MOP) | 40 A |
| Inverter compressor | Yes |
| Refrigerant | R410A |
|---|---|
| Factory charge | 176.4 oz |
| Dimensions (in) | 44 W × 35.43 D × 49.25 H |
|---|---|
| Weight | 523 lb |
| Shipping weight | 545 lb |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Safety listing | ETL |
| Compressor warranty | 10 years |
| Parts warranty | 10 years |
| UPC | 840255582308 |
