Rheem Split Air Conditioner

Overview

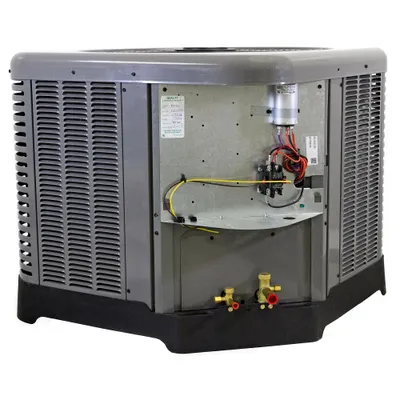

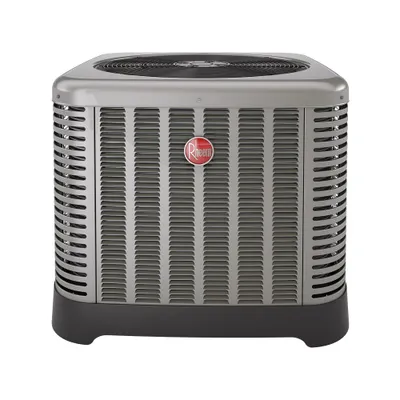

The RHEEM RA1436AJ1NA is a 3-ton A/C condensing unit from the Rheem Classic RA14 Series. It meets minimum Southwest regional standard requirements. Features a composite base pan that dampens sound, captures louver panels, eliminates corrosion, and reduces the number of fasteners needed. The powder coat paint system provides a long-lasting professional finish. Key Features Meets minimum Southwest regional standard requirements Composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder coat paint system for a long lasting professional finish Technical Specifications Usage: Outdoor Condenser Motor HP: 1/6 HP Condenser Motor RPM: 850 Condenser Motor Speeds: 1 (Single) Condenser Motor Type: PSC (Permanent Split Capacitor) Cooling Capacity: 36000 BTU/Hour Cycle/Hertz: 60 Hz EER: 12 Energy Star Rated: Yes Equipment Type: Straight Cool Fan Diameter: 24 inches Fins per Inch (FPI): 22 Full Load Amps: 14.1 Inverter: No Liquid Line Fitting Type: Sweat or Braze Liquid Line Size (OD): 3/8 inches Locked Rotor Amps (LRA): 77 Maximum Piping Length: 250 feet Number of Fan Blades: 3 Phase: Single Product Family: RA14 Prop 65: Yes Rated Load Amps (RLA): 14.1 Refrigerant: R-410A SEER: 14 Sound Level (dBA): 76 dB Stage: Single Suction Line Fitting Type: Sweat or Braze Suction Line Size (OD): 3/4 inches Tier: Classic Tonnage: 3 Ton UL Listed: Yes Voltage: 208-230 VAC Maximum Overcurrent Protection (MOCP): 30 Compressor Type: Scroll…
