Trane Packaged - Cool Only & Electric Heat

Overview

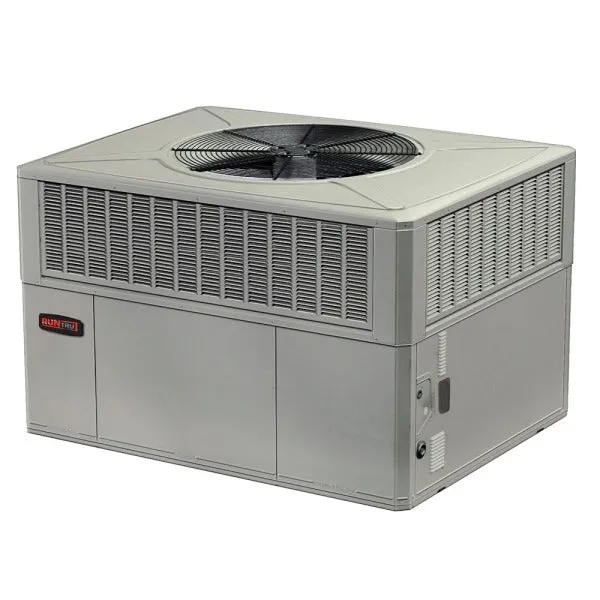

The TRANE A5PA3024A1000 is a 2-ton single-packaged cooling unit with electric heat strip, rated at 24,000 BTU/h and 13.4 SEER2. Part of the RunTru by Trane A5PA3 series, this self-contained unit houses the compressor, outdoor coil, indoor coil, and air handler in a single cabinet, simplifying installation on rooftops or ground-level pads. The unit uses R-454B refrigerant, operates on 208-230V/1-phase/60Hz power, and delivers 820 CFM of indoor airflow. It is rated at 10.6 EER2 and draws 1.98 kW at full cooling load. Licensed HVAC technicians install this unit in residential and light-commercial applications where a single-point connection and compact footprint are priorities. The A5PA3024A1000 is configured for downflow and horizontal discharge, making it well suited for rooftop installations with ductwork dropping directly into the conditioned space, or for horizontal duct connections on ground-mounted pads. The unit is designed for multiposition applications where space constraints or building layout favor an all-in-one packaged design over a split system. The integrated electric heat strip eliminates the need for a separate furnace or air handler, reducing equipment count and simplifying commissioning. This unit fits residential new-construction and replacement projects where a packaged platform is specified. Key Features 24,000 BTU/h cooling capacity at 13.4 SEER2 efficiency rating R-454B refrigerant � low global-warming-potential alternative to R-410A Scroll compressor…
