Trane Packaged Gas/electric/dual

Overview

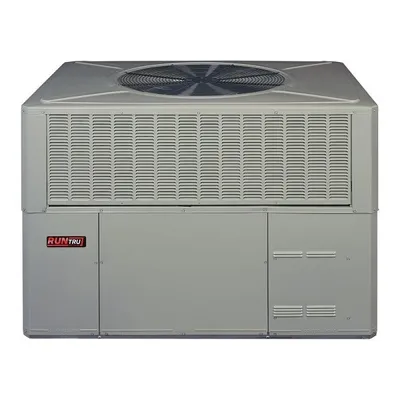

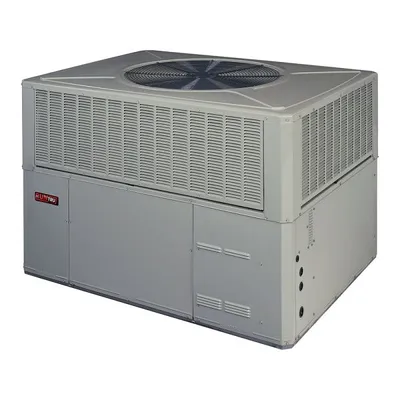

The TRANE A5PG3024A1060 is a single packaged gas heating and electric cooling unit designed for light commercial and residential rooftop or ground-level installations. Operating on R-454B refrigerant, it delivers 24000 BTU/h of cooling capacity and 60000 BTU/h of gas heating input through a scroll compressor and a constant torque ECM indoor fan. The unit runs on 208-230/1/60 electrical service and uses electronic ignition for reliable heat startup. Licensed HVAC technicians install and commission this system as a self-contained, single-cabinet solution that combines the air handler, gas furnace, and condenser into one unit. This packaged unit is intended for convertible applications in the 2 to 5 ton product family. The A5PG3024A1060 sits at the 2 ton cooling end of the lineup and is suited for small commercial spaces or residential applications where a split-system installation is not practical. The convertible design allows flexibility in discharge airflow configuration at the jobsite. It is listed alongside other models in the A5PG30 series including the A5PG3030A1070A, A5PG3036A1070A, A5PG3042A1090A, A5PG3048A1090A, and A5PG3060A1115A. Key Features R-454B refrigerant compliant with current environmental regulations Constant torque ECM indoor fan with 4-speed direct drive for quiet, efficient airflow Spine-fin outdoor coil with 2 rows and 24 fins per inch for effective heat rejection Scroll compressor rated at 10.3 running amps and 60.2 locked-rotor amps Electronic…
