Trane Packaged Heat Pump

Overview

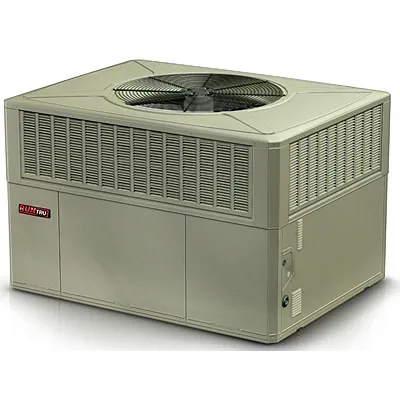

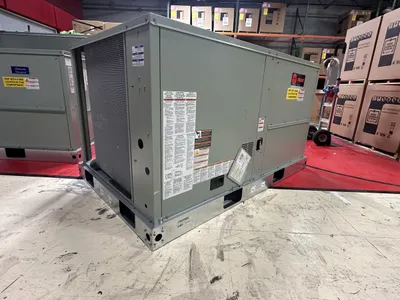

The TRANE A5PH3024A1000 is a single packaged electric heat pump rated at 2 tons nominal capacity, delivering 24,000 BTU/h of cooling and 21,000 BTU/h of heating from a single self-contained cabinet. It operates on R-454B refrigerant and carries a 13.4 SEER2 efficiency rating. The unit runs on 208-230 volt single-phase 60 Hz power and uses a scroll compressor paired with a constant torque ECM indoor fan motor. Because all mechanical and electrical components are housed in one cabinet, it is well suited for rooftop or ground-level installations where space is limited. Licensed HVAC technicians handle installation and commissioning. The A5PH3024A1000 is designed for residential and light-commercial applications requiring a single packaged heating and cooling solution. Its convertible, multiposition cabinet accommodates both horizontal and downflow duct configurations, giving installers flexibility on job sites with varying duct layouts. This unit is part of the RunTru by Trane entry-level packaged heat pump line covering 2 to 5 ton sizes, all using R-454B refrigerant. It is appropriate for rooftop curb-mount or slab-on-grade installations in single-family homes, small commercial spaces, and manufactured housing where split-system installation is impractical. Key Features 24,000 BTU/h cooling capacity and 21,000 BTU/h heating capacity in a single packaged cabinet R-454B refrigerant, lower global warming potential than R-410A, meeting current and upcoming regulatory requirements…
