Trane Split Heat Pump

Overview

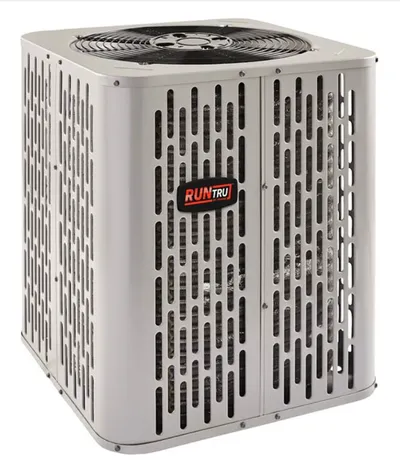

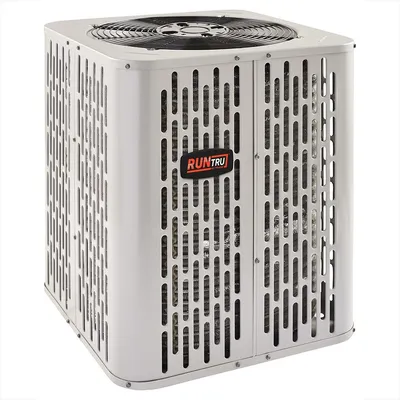

The Trane A5HP4024A1000 is a 2-ton, single-stage heat pump condenser rated at 24,000 BTU/h with a 14.3 SEER2 efficiency rating and 7.5 HSPF2, operating on R-454B refrigerant. Designed for the RunTru by Trane product line, this outdoor condensing unit delivers both heating and cooling from a single system. It runs on a 200-230V/1-phase/60Hz power supply and uses a PSC blower motor with a 23-inch blower diameter. The unit ships factory-charged for the outdoor condenser, 10 feet of connecting line, and the smallest rated indoor evaporative coil match. Licensed HVAC technicians handle installation and commissioning. This condenser is intended for residential split-system applications where a single-stage heat pump is specified. Typical install locations for the matched indoor air handler include closets, utility rooms, alcoves, basements, crawlspaces, and attics. The A5AHC series air handler is the designed companion indoor unit. The system is factory set with a subcooling charging specification of 12 degrees F, which guides refrigerant charge verification at startup. The unit is rated for standard residential outdoor ambient operating conditions common in moderate climate zones. Key Features 24,000 BTU/h cooling capacity in a 2-ton single-stage configuration 14.3 SEER2 efficiency rating meets current minimum federal efficiency standards 7.5 HSPF2 heating efficiency for year-round heat pump operation R-454B refrigerant — lower global warming potential alternative to R-410A PSC…
