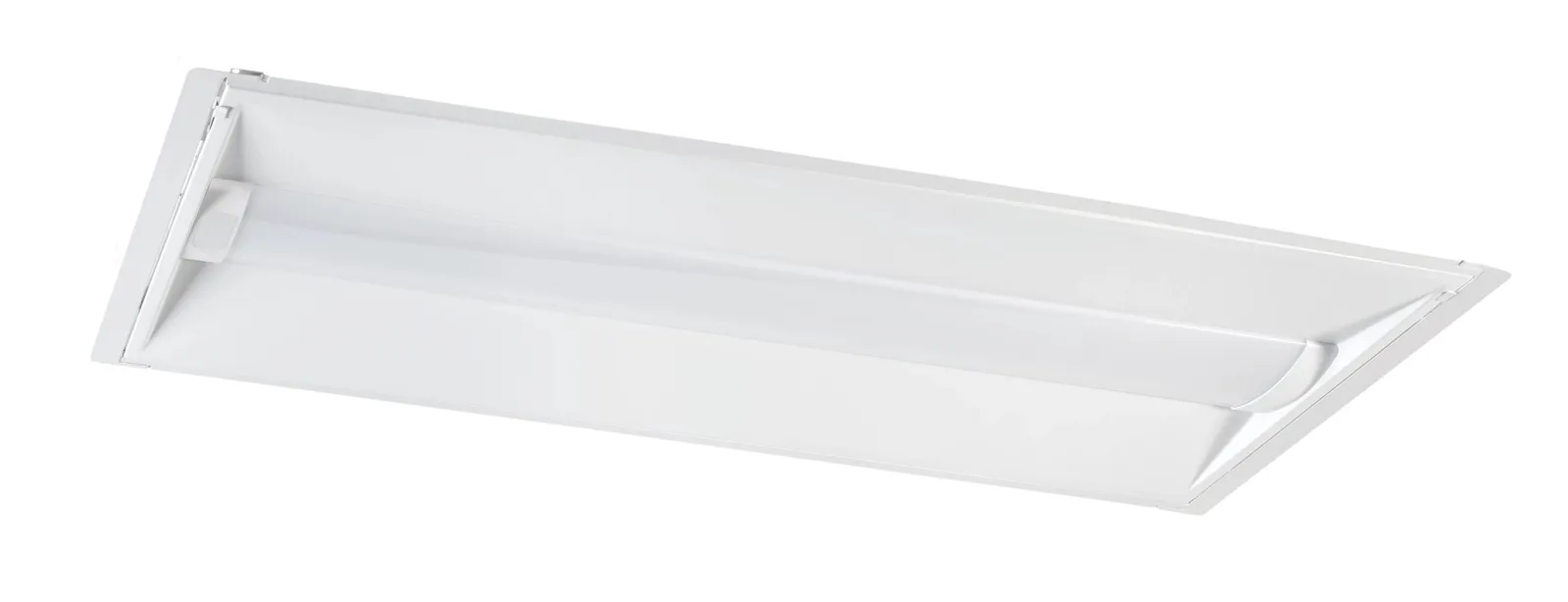

2x4 LED Center Basket Doorframe Retrofit Kit | Power Select 30/25/20W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program

1 / 10

Discount Kings· Manufactured by Discount Kings

2x4 LED Center Basket Doorframe Retrofit Kit | Power Select 30/25/20W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program

TRK-LED-24DC-30PS-8CSA /CR /2PK

20/25/30W · 2,600/3,250/3,900 lm · 3500K/4000K/5000K · 120–277V

Part of LED Retrofit Kits – Troffer Retrofit – Center Basket Troffer

$109.90 each · box of 2

Request a QuoteSpec sheet

Distributor pricing and stock: call 678-940-9002 or email sales@discountkings.net.

Specifications

Electrical
Wattage20/25/30W (selectable)
Voltage120–277V
Dimming0-10V
Photometric
Lumens2,600/3,250/3,900 lm
Efficacy130 lm/W
Color temperature3500K/4000K/5000K (selectable)
CRI80+
Physical
MountingRetrofit
Size2x4
FinishWhite
LensCenter Basket
Lifetime, warranty & ordering
Rated life50,000 hrs
Warranty5 years
UPC843654173368
Pack quantity2
