EnVision LED
2" DLJBX Regressed Downlights and Trims

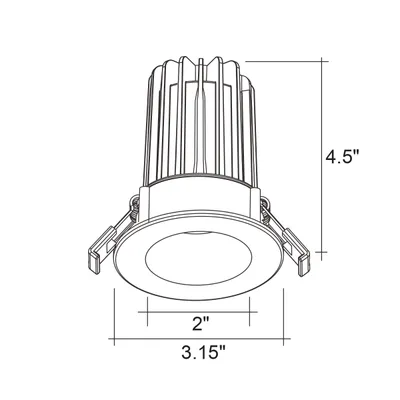

EnVision LED has developed a line of 2" LED Gimbal Downlight that eliminates the need for a can.
20 part numbers · DLJBX Series - COB LED Snaptrim (Canless) Remote J-Box Downlights
- Wattage
- 6–15W
- Lumens
- 450–1,000 lm
- Color temperature
- 1800K, 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V, 120–277V
- Dimming
- TRIAC/ELV, Dimmable, 0-10V
- CRI
- 90+
- Finish
- Black, Brushed Nickel, Bronze, Chrome, White
- Warranty
- 5 years
Overview

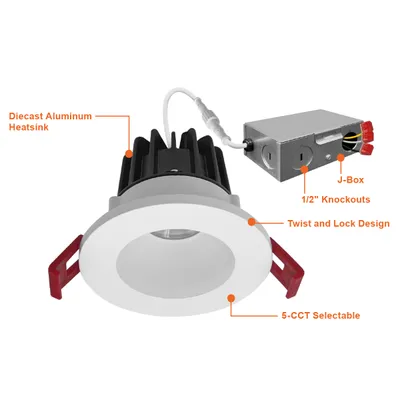

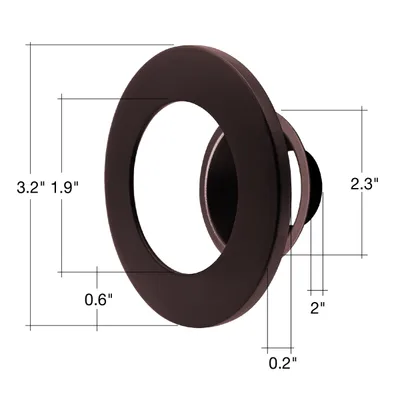

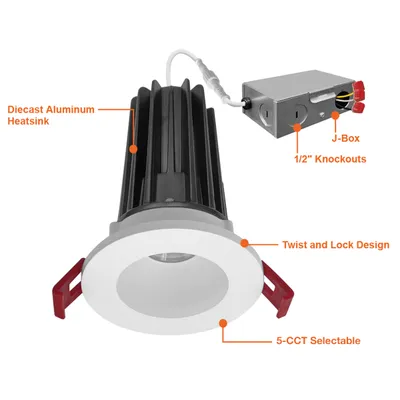

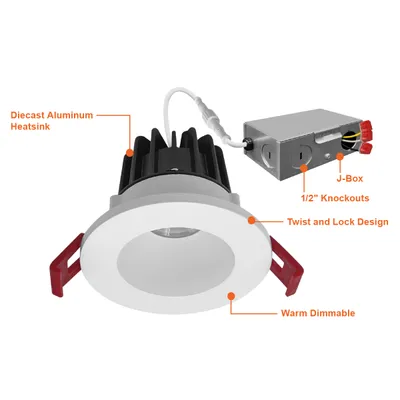

EnVision LED has developed a line of 2" LED Gimbal Downlight that eliminates the need for a can. The external remote junction box mounts inside the ceiling and the fixture is IC Rated. EnVisions 2" downlight features a trimchangable module. Trim changing accessories include: brushed nickel, smooth & baffle bronze, smooth & baffle black, smooth & baffle white, and a chrome finish that fits on any of the modules available for purchase. By reducing material cost and installation time, the EnVision SnapTrim is the ideal retrofit or new construction recessed lighting solution yet. Simply but a hole in the ceiling, power the J-Box to the wall switch, and "snap" the trim flush. Now available with 5CCT color changing technology! Switch from 27K, 30K, 35K, 40K, and 50K with the flick of a switch!
Key features
- 5CCT
- Select-N-Switch
- 1CCT
- WarmDim
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | DLJBX-2-TRIM-BL-BFL | DLJBX-2: Black Baffle trim | — | — | — | — | — | Black | — | Call for pricing | ||
| DLJBX-2-TRIM-BL-S-SQ | 2" Black Smooth Square Trim | — | — | — | — | — | Black | — | Call for pricing | ||
| DLJBX-2-TRIM-BLK-S | DLJBX-2: Black Smooth trim | — | — | — | — | — | Black | — | Call for pricing | ||
| DLJBX-2-TRIM-BN-S | DLJBX-2: Brushed Nickel Smooth trim | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| DLJBX-2-TRIM-BN-S-SQ | 2" Brushed Nickel Smooth Square Trim | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||
| DLJBX-2-TRIM-BZ-BFL | DLJBX-2: Bronze Baffle trim | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | DLJBX-2-TRIM-BZ-S | DLJBX-2: Bronze Smooth trim | — | — | — | — | — | Bronze | — | Call for pricing | ||
| DLJBX-2-TRIM-BZ-S-SQ | 2" Bronze Smooth Square Trim | — | — | — | — | — | Bronze | — | Call for pricing | ||
| DLJBX-2-TRIM-CH-S | DLJBX-2: Chrome Smooth trim | — | — | — | — | — | Chrome | — | Call for pricing | ||
| DLJBX-2-TRIM-WH-BFL | DLJBX-2: White Baffle trim | — | — | — | — | — | White | — | Call for pricing | ||
| DLJBX-2-TRIM-WH-S-SQ | DLJBX-2: White Smooth Square | — | — | — | — | — | White | — | Call for pricing | ||
 | LED-DLJBX-2-6W-3WD-W/W-S | 2" Smooth Downlight: SnapTrim-Line | 6W | 450 lm | 1800K/3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

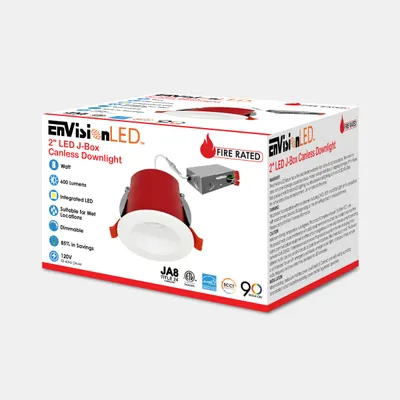

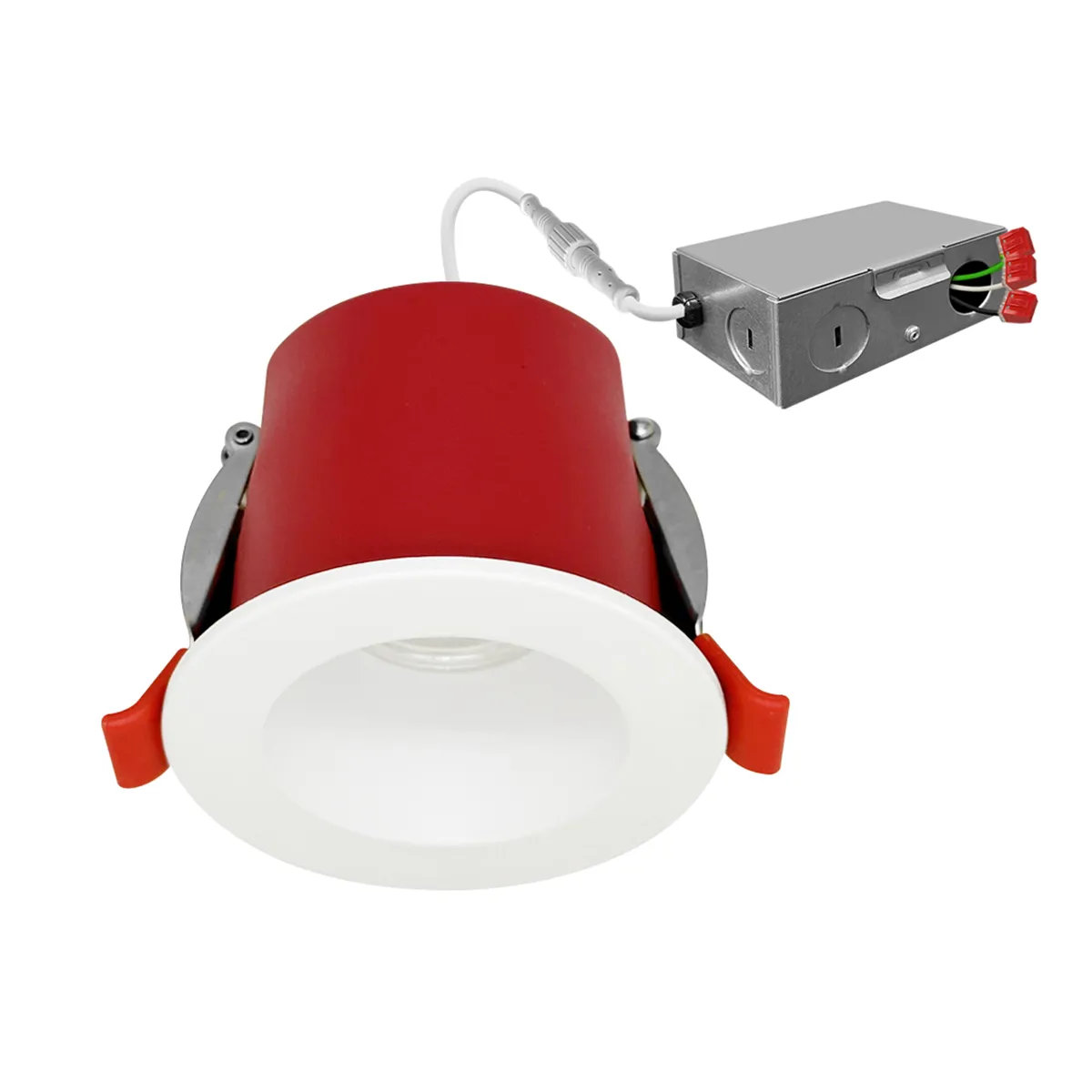

| LED-DLJBX-2-8W-5CCT-FR-WW-SM | 2" Smooth Downlight: SnapTrim-Line FIRE RATED (White Smooth Only) | 8W | 600 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-DLJBX-2-8W-5CCT-W/W-SM | 2" Smooth Downlight: SnapTrim-Line | 8W | 600 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-DLJBX-2-8W-5CCT-WW-SM | 2" Smooth Downlight: SnapTrim-Line | 8W | 600 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-DLJBX-2-12W-3WD-W/W-S | 2" Smooth Downlight: SnapTrim-Line | 12W | 850 lm | 1800K/3000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-DLJBX-2-15W-30K-W/W-S | 2" Smooth Downlight: SnapTrim-Line | 15W | 1,000 lm | 3000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-DLJBX-2-15W-50K-W/W-S | 2" Smooth Downlight: SnapTrim-Line | 15W | 1,000 lm | 5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-DLJBX-2-15W-5CCT-W/W-S | 2" Smooth Downlight: SnapTrim-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-DLJBX-2-15W-5CCT-W/W-S-0/10V | 2" Smooth Downlight: SnapTrim-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-dljbx-2-8w-38dg.ies
- IES fileled-dljbx-2-8w-24dg.ies
- IES fileled-dljbx-2-8w-60dg.ies
- IES fileled-dljbx-2-15w-60dg-ies.ies
- IES fileled-dljbx-2-15w-38dg-ies.ies
- IES fileled-dljbx-2-15w-24dg-ies.ies
- IES fileled-dljbx-2-8w-60dg.ies
- IES fileled-dljbx-2-8w-38dg.ies
- IES fileled-dljbx-2-8w-24dg.ies
