EnVision LED
3" DLJBX Round Regressed Gimbal Downlights

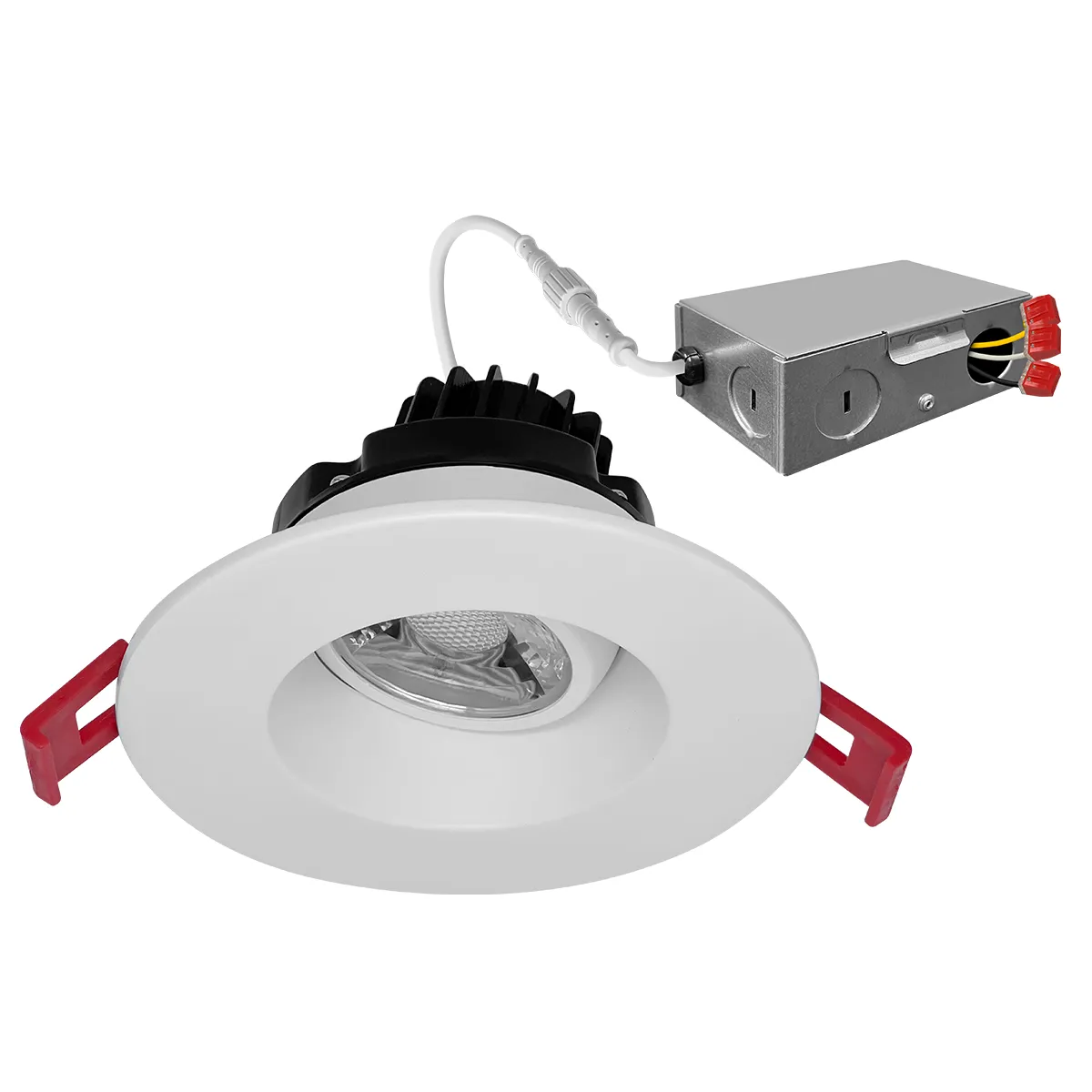

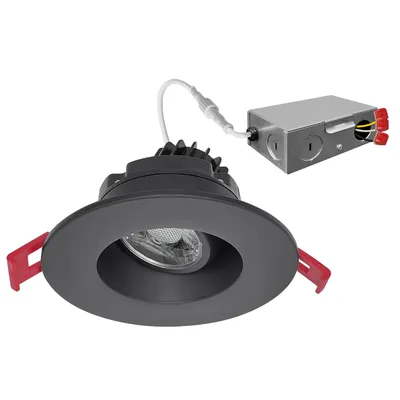

EnVision LED has developed a line of 3" LED Gimbal Downlight that eliminates the need for a can.
2 part numbers · DLJBX Series - COB LED Snaptrim (Canless) Remote J-Box Downlights
- Wattage
- 8W
- Lumens
- 600 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- Black, White
- Warranty
- 5 years
Overview

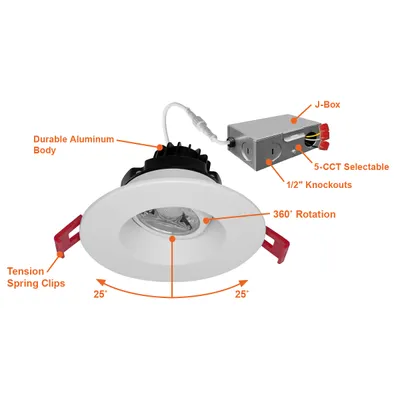

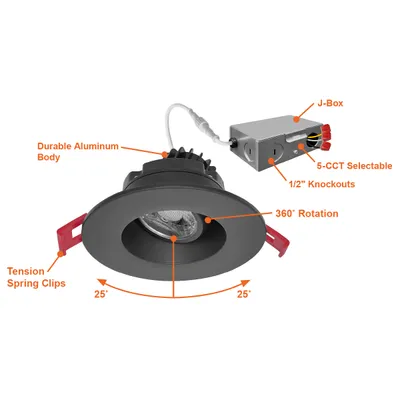

EnVision LED has developed a line of 3" LED Gimbal Downlight that eliminates the need for a can. The external remote junction box mounts inside the ceiling and the fixture is IC Rated. EnVisions 3" downlight features a trimchangable module. Trim changing accessories include: white square, brushed nickel round, brushed nickel square, and black square that fits on any of the modules available for purchase. By reducing material cost and installation time, the EnVision SnapTrim is the ideal retrofit or new construction recessed lighting solution yet. Simply but a hole in the ceiling, power the J-Box to the wall switch, and "snap" the trim flush. Now available with 5CCT color changing technology! Switch from 27K, 30K, 35K, 40K, and 50K with the flick of a switch!
Key features
- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R | 3" Regressed Gimbal Downlight: SnapTrim-Line | 8W | 600 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
![]() | LED-DLJBX-ADJ-3RG-8W-5CCT-WH-R | 3" Regressed Gimbal Downlight: SnapTrim-Line | 8W | 600 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-24d-5000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-24d-2700k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-24d-3500k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-24d-3000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-38d-4000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-38d-3000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-38d-3500k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-38d-2700k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-38d-5000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-60d-2700k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-60d-3500k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-60d-5000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-60d-3000k.ies
- IES fileled-dljbx-adj-3rg-8w-5cct-wh-r-60d-4000k.ies
