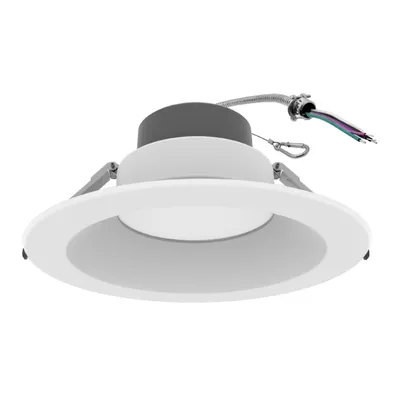

EnVision LED

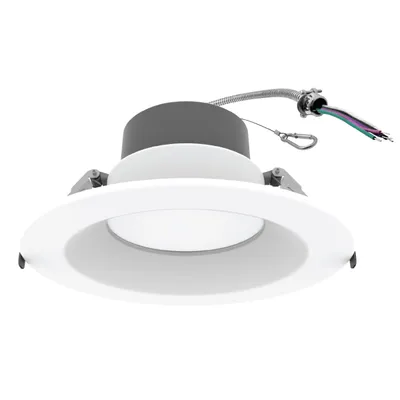

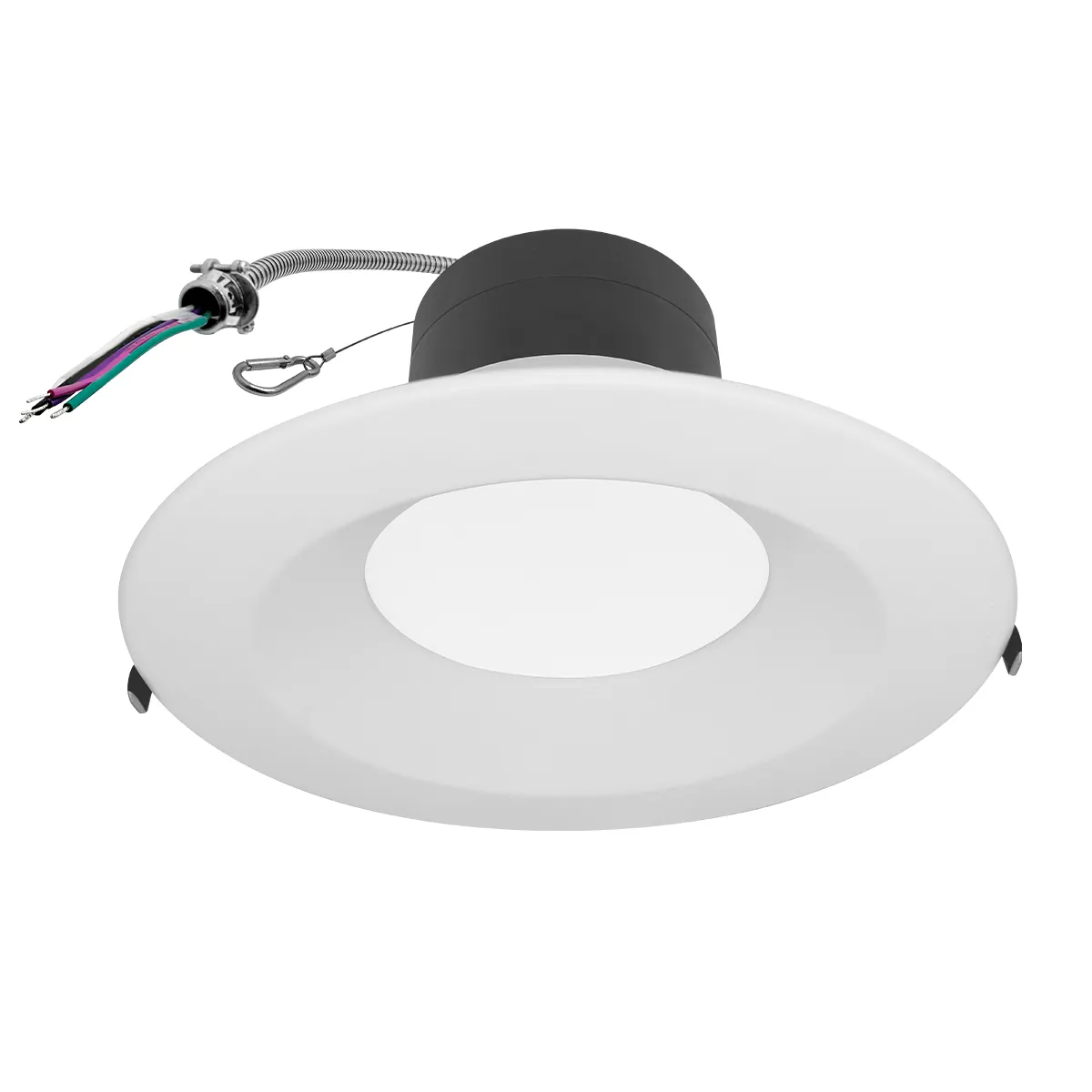

4, 6, 8, 10" CMD Downlight (Canless) - Wattage and CCT Selectable
Introducing EnVision LED's new Commercial Downlight with selectable wattage and color tuning!
8 part numbers · Commercial Downlights - CMD Series
- Wattage
- 9–38W
- Lumens
- 750–4,150 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V, 120–347V
- Dimming
- 0-10V, TRIAC/ELV
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years
Overview

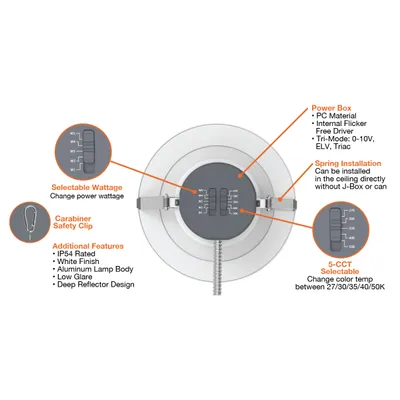

Introducing EnVision LED's new Commercial Downlight with selectable wattage and color tuning! With the flip of a switch on the back of this downlight, easily select between a number of different wattages, and choose between 3000K, 4000K, and 5000K. Select 9 different color and lumen packagees ALL-IN-ONE. Suitable for use in damp location with an IP54 rating and airtight rated fixture. With a J-Box, this fixtures allows for easy daisy chain installation also.

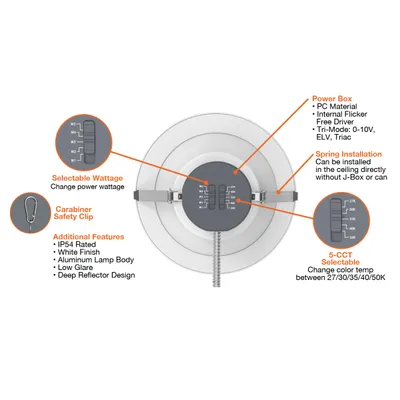

Key features
- Select-N-Switch
- 5CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-CMD-4-3M19-5CCT-UNV | 4" Commercial Downlight: CMD-Line | 9/14/19W | 750/1,000/1,500 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — | Call for pricing | ||
| LED-CMD-6-3M19-5CCT-UNV | 6" Commercial Downlight: CMD-Line | 9/13/19W | 800/1,200/1,600 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — | Call for pricing | ||
| LED-CMD-8-3M29-5CCT-UNV | 8" Commercial Downlight: CMD-Line | 16.5/23/29W | 1,500/2,000/2,500 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| LED-CMD-6-3M30-5CCT-CUNV | 6" Commercial Downlight: CMD-Line | 15/20/30W | 1,500/2,000/3,000 lm | 2700K/3000K/3500K/4000K/5000K | 120–347V | 0-10V, TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CMD-8-5P30-5CCT-UNV | 8" Commercial Downlight: CMD-Line | 16/20/23/27/30W | 2,050/2,450/2,700/3,200/3,350 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CMD-8-3M36-5CCT-CUNV | 8" Commercial Downlight: CMD-Line | 22/32/36W | 2,500/3,500/3,900 lm | 2700K/3000K/3500K/4000K/5000K | 120–347V | 0-10V | White | — | Call for pricing | ||
 | LED-CMD-10-3M38-5CCT-UNV | 10" Commercial Downlight: CMD-Line | 21/30/38W | 2,000/2,500/3,300 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-CMD-10-5P38-5CCT-UNV | 10" Commercial Downlight: CMD-Line | 20/24/28/32/38W | 2,550/2,850/3,200/3,600/4,150 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V, TRIAC/ELV | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-cmd-8-16-5w.ies
- IES fileled-cmd-8-23w.ies
- IES fileled-cmd-8-29w.ies
- IES fileled-cmd-8-3m29-5cct-unv-16-5w-wall-wash.ies
- IES fileled-cmd-8-3m29-5cct-unv-23w-wall-wash.ies
- IES fileled-cmd-8-3m29-5cct-unv-29w-wall-wash.ies
- IES fileled-cmd-8-3m36-5cct-cunv-32w.ies
- IES fileled-cmd-8-3m36-5cct-cunv-22w-wall-wash.ies
- IES fileled-cmd-8-3m36-5cct-cunv-22w.ies
- IES fileled-cmd-8-3m36-5cct-cunv-32w-wall-wash.ies
- IES fileled-cmd-8-3m36-5cct-cunv-36w-wall-wash.ies
- IES fileled-cmd-8-3m36-5cct-cunv-36w.ies
- IES fileled-cmd-10-5p38-30w.ies
- IES fileled-cmd-10-5p38-21w.ies
- IES fileled-cmd-10-5p38-38w.ies
- IES fileled-cmd-8-5p30-5cct-unv-23w-4000k.ies
- IES fileled-cmd-8-5p30-5cct-unv-27w-4000k.ies
- IES fileled-cmd-8-5p30-5cct-unv-30w-4000k.ies
- IES fileled-cmd-8-5p30-5cct-unv-16w-4000k.ies
- IES fileled-cmd-8-5p30-5cct-unv-20w-4000k.ies
- IES fileled-cmd-10-5p38-5cct-unv-24w-4000k.ies
- IES fileled-cmd-10-5p38-5cct-unv-32w-4000k.ies
- IES fileled-cmd-10-5p38-5cct-unv-38w-4000k.ies
- IES fileled-cmd-10-5p38-5cct-unv-20w-4000k.ies
- IES fileled-cmd-10-5p38-5cct-unv-28w-4000k.ies
