EnVision LED
4" Square SnapTrim Slim J-Box Downlights and Trims
NewAnd just like that...
7 part numbers · Slim Panel LED Downlights
- Wattage
- 8–12W
- Lumens
- 500–840 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V, 120V
- Dimming
- 0-10V, Dimmable, TRIAC/ELV
- CRI
- 90+
- Finish
- Black, Brushed Nickel, Bronze, White
- Warranty
- 5 years
Overview

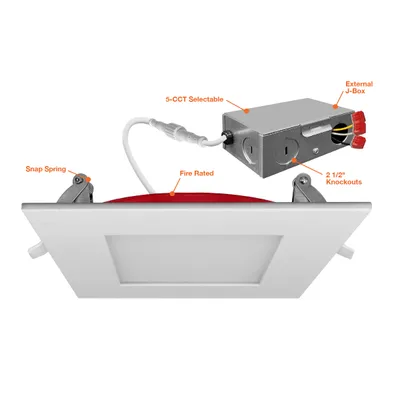

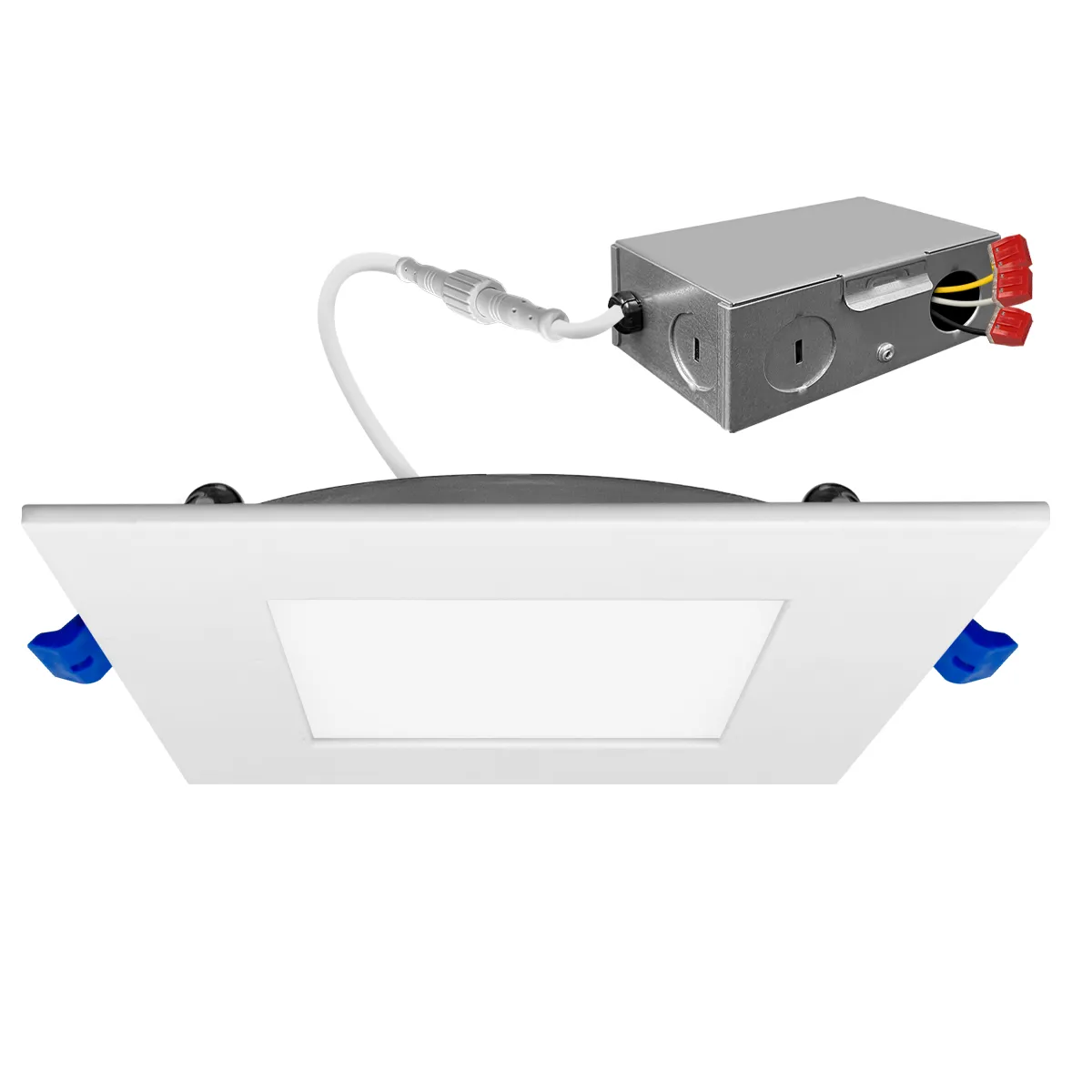

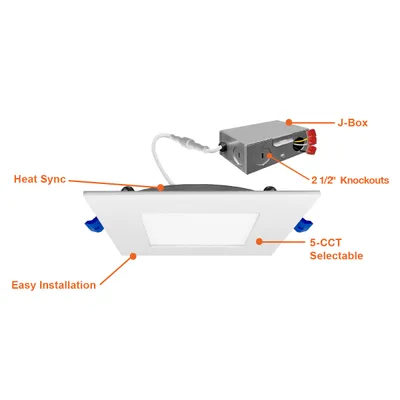

And just like that... the recessed can is gone. EnVision LED has developed a liine of LED Downlight that is super slim and eliminates the need for a can. The external remote junction box mounts inside the ceiling and the fixture is IC Rated. EnVisions downlight can be can adapt to the end users needs with a flip of the switch. Inside the remote j-box is a switch that changes the color to 3000k, 4000k, or 5000k. The end user can switch the color during or after installation. Distributors can be worry free by stocking 1 SKU that illuminates in 3 different colors, reducing the amount of stock needed on the shelves. By reducing material cost and installation time, the EnVision SnapTrim is the ideal retrofit or new construction recessed lighting solution yet. Available accessories include different color finish rings, extender cable from the trim to driver, and a high voltage 277-347V driver.
Key features
- 3CCT
- Select-N-Switch
- 5CCT
- Black
- Bronze
- Nickel
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

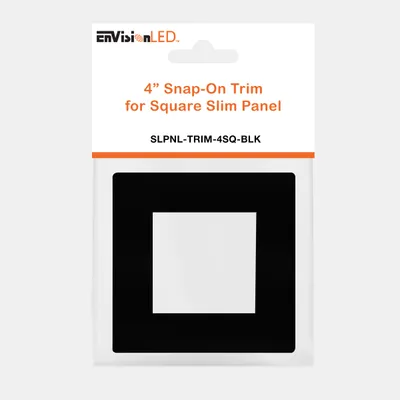

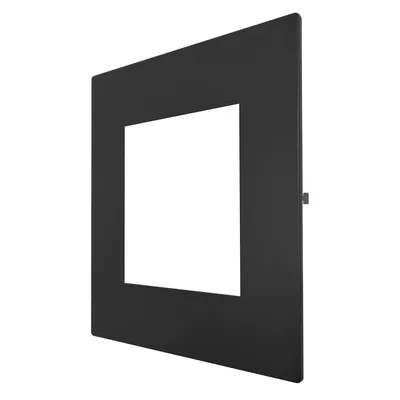

 | SLPNL-TRIM-4SQ-BLK | SL-PNL-4SQ Black Trim | — | — | — | — | — | Black | — | Call for pricing | ||

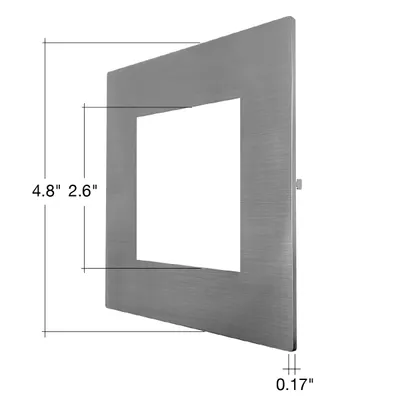

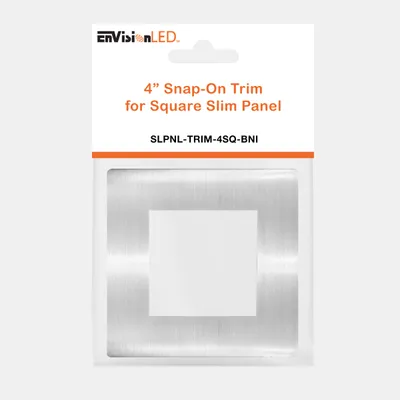

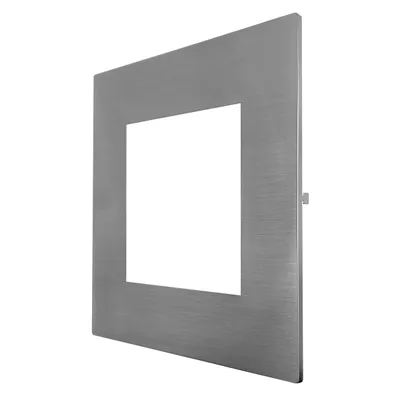

 | SLPNL-TRIM-4SQ-BNI | SL-PNL-4SQ Brushed Nickel Trim | — | — | — | — | — | Brushed Nickel | — | Call for pricing | ||

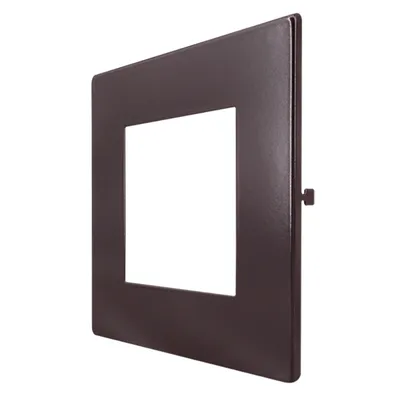

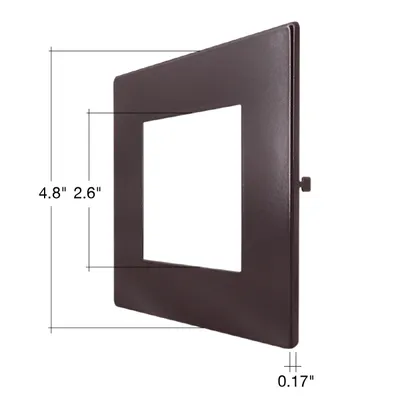

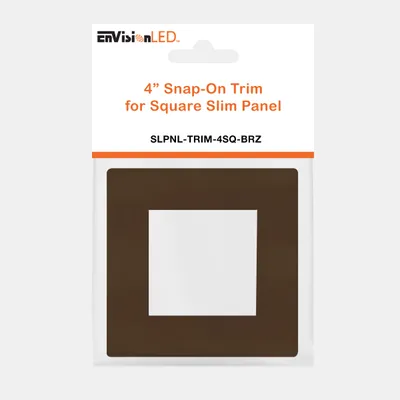

 | SLPNL-TRIM-4SQ-BRZ | SL-PNL-4SQ Bronze Trim | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | LED-SL-PNL-4SQ-11W-5CCT-0/10V | 4" External J-Box Square Downlight: Slim-Line | 11W | 750 lm | 2700K/3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | LED-SL-PNL-4SQ-11W-TRI | 4" External J-Box Square Downlight: Slim-Line | 11W | 750 lm | 3000K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||

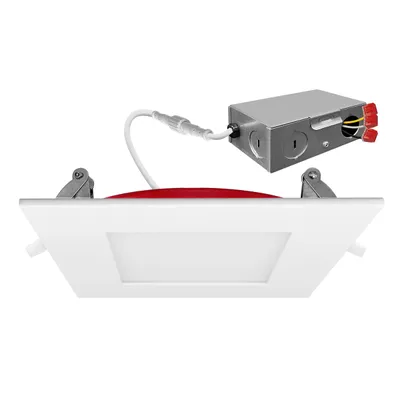

 | LED-SL-PNL-4SQ-12W-5CCT-FR-WH | 4" External J-Box Round Downlight: Slim-Line: FIRE RATED | 12W | 840 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||

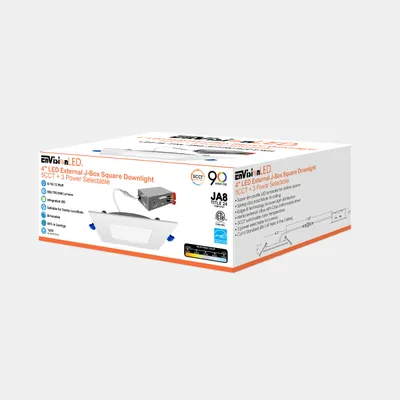

| LED-SL-PNL-4SQ-3P12W-5CCT-WH | 4" External J-Box Square Downlight: Slim-Line | 8/10/12W | 500/700/840 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
