EnVision LED

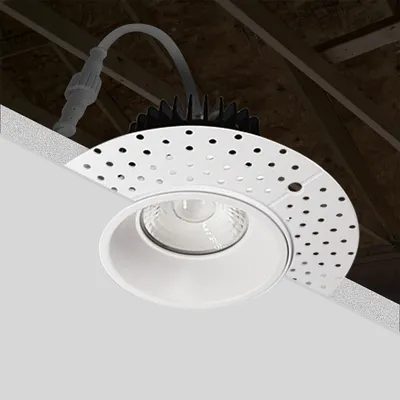

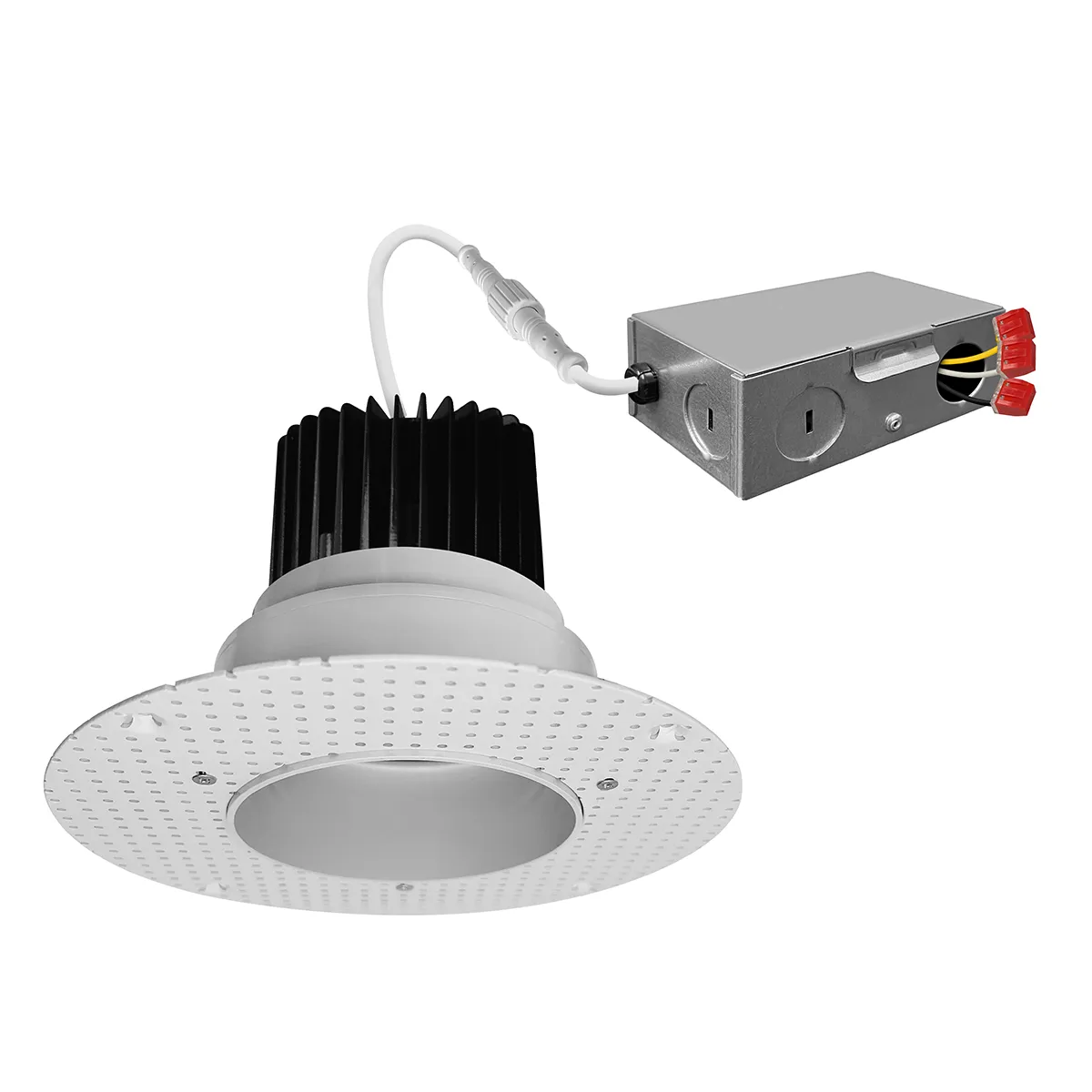

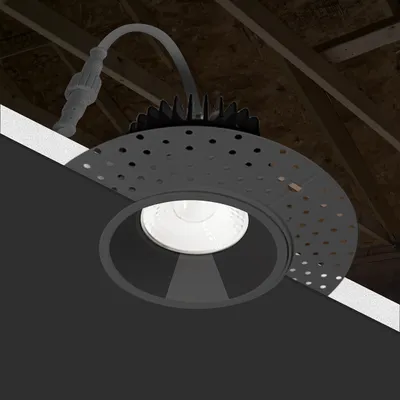

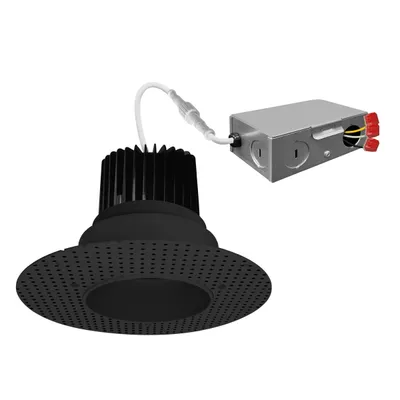

4" Trimless Round Downlights
• External J-Box Eliminates Recessed Can • New Construction Mounting Plate Available • Suitable for Use in Wet Locations • IC & Airtight-Rated Fixture
2 part numbers · Trimless (Canless) J-Box Downlights
- Wattage
- 15W
- Lumens
- 1,000 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- White
- Warranty
- 5 years
Overview
• External J-Box Eliminates Recessed Can • New Construction Mounting Plate Available • Suitable for Use in Wet Locations • IC & Airtight-Rated Fixture
Key features
- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-DLJBX-TML-4R-15W-5CCT-BLK | 4" Round Downlight: Trimless-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-DLJBX-TML-4R-15W-5CCT-WH | 4" Round Downlight: Trimless-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-dljbx-tml-4r-15w-5cct-wh-60d-2700k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-60d-3500k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-60d-5000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-60d-3000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-60d-4000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-38d-2700k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-38d-3500k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-38d-3000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-38d-5000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-38d-4000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-24d-3000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-24d-2700k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-24d-5000k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-24d-3500k.ies
- IES fileled-dljbx-tml-4r-15w-5cct-wh-24d-4000k.ies
