EnVision LED

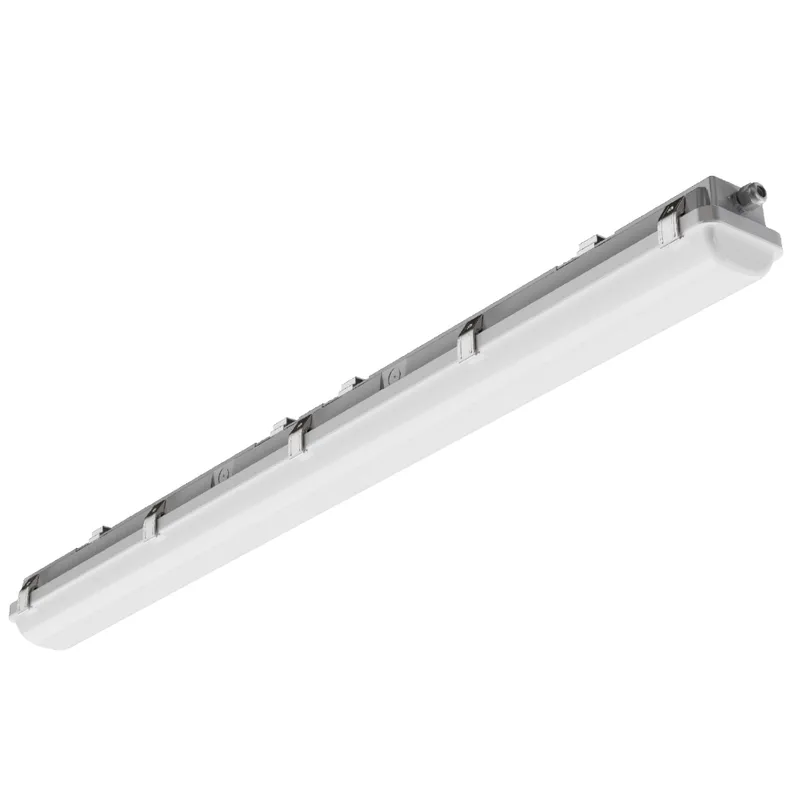

5-CCT + 3-Power Models: Bolt-Line

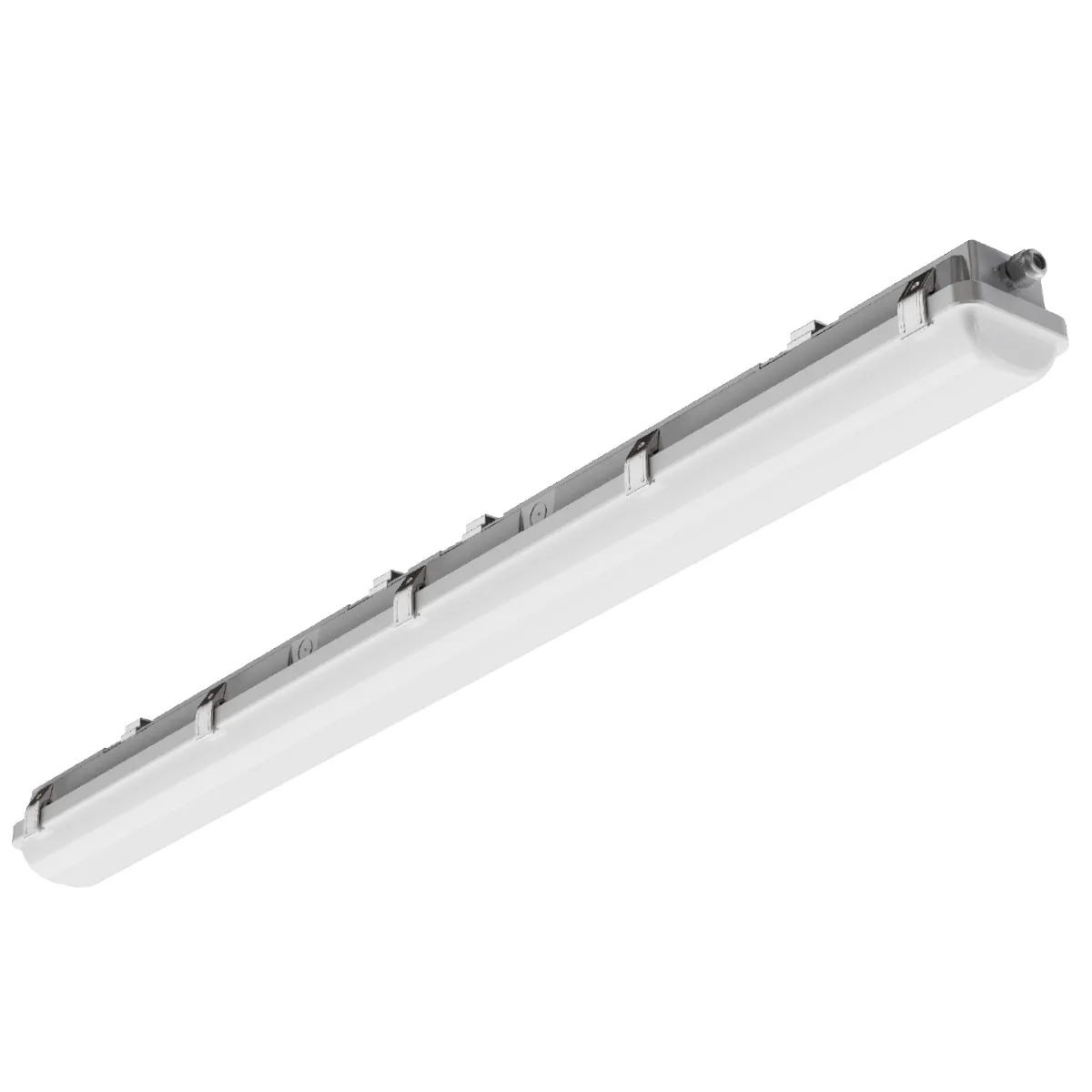

New4 part numbers · LED Vapor Tight: Bolt-Line
- Wattage
- 15–100W
- Lumens
- 2,250–15,000 lm
- Color temperature
- 3500K, 4000K, 5000K, 6500K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Gray
- DLC
- DLC Premium
- Warranty
- 5 years

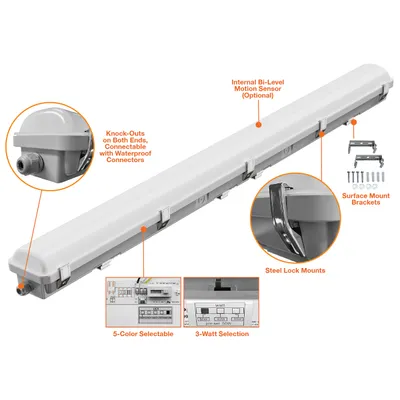

Key features
- 5CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
- -BMS — HD407VC-R Bi Level Motion + Daylight Sensor
- 20KV — SG-20KV-UNV: 20KV Surge Protector
- -HV — 347-480V Step Down Transformer
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

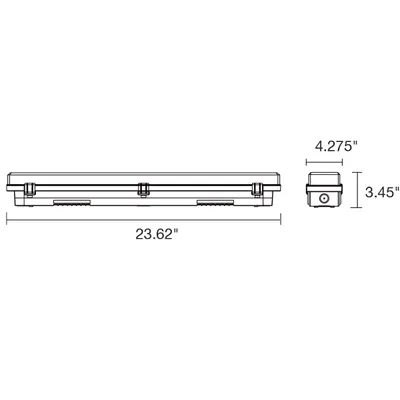

 | LED-VPT-2FT-3P25-5CCT-UNV | 2ft Vapor Tight | 15/20/25W | 2,250/3,000/3,750 lm | 3500K/4000K/5000K/6500K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||

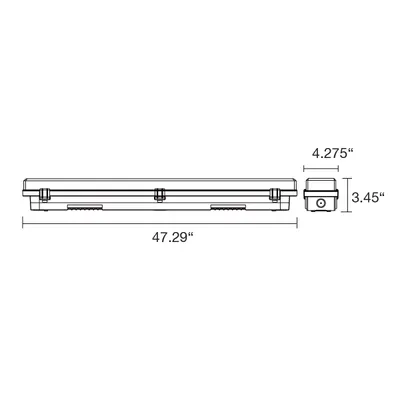

 | LED-VPT-4FT-3P50-5CCT-UNV | 4ft Vapor Tight | 30/40/50W | 4,500/6,000/7,500 lm | 3500K/4000K/5000K/6500K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
 | LED-VPT-4FT-3P80-5CCT-UNV | 4ft Vapor Tight High Output | 60/70/80W | 9,000/10,500/12,000 lm | 3500K/4000K/5000K/6500K | 120–277V | 0-10V | Gray | Premium | Call for pricing | ||
 | LED-VPT-8FT-3P100-5CCT-UNV | 8ft Vapor Tight | 60/80/100W | 9,000/12,000/15,000 lm | 3500K/4000K/5000K/6500K | 120–277V | 0-10V | Gray | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-vpt-2ft-3p25-25w.ies
- IES fileled-vpt-2ft-3p25-20w.ies
- IES fileled-vpt-2ft-3p25-15w.ies
- IES fileled-vpt-4ft-3p50-50w.ies
- IES fileled-vpt-4ft-3p50-40w.ies
- IES fileled-vpt-4ft-3p50-30w.ies
- IES fileled-vpt-4ft-3p80-60w.ies
- IES fileled-vpt-4ft-3p80-70w.ies
- IES fileled-vpt-4ft-3p80-80w.ies
- IES fileled-vpt-8ft-3p100-5cct-35k-120v.ies
