6, 8, 10" Module: CADM-Line

Introducing EnVision LED's new High Performance Commercial Downlight !

1 part number · Downlights

Wattage: 35–56W
Lumens: 3,500–5,000 lm
Color temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Voltage: 120–277V
Dimming: 0-10V, TRIAC/ELV
CRI: 90+
Finish: Black
Warranty: 5 years

Overview

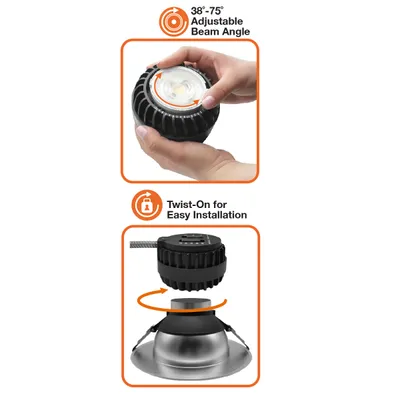

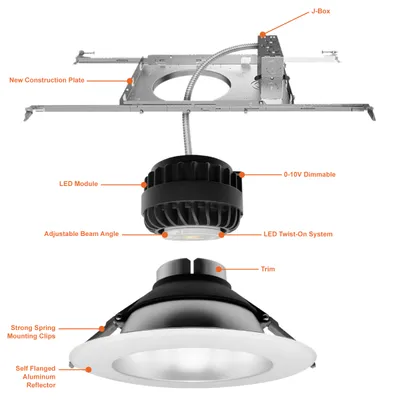

Introducing EnVision LED's new High Performance Commercial Downlight ! EnVisions CADM series features a module which can be mounted on to your trim of choice; field selectable power and optics; and color temperature on our CADM-3M20 model. Achieve up to 5,000 lumens on our 6", 8" or 10" models with our 3M55 module.

Key features

5CCT

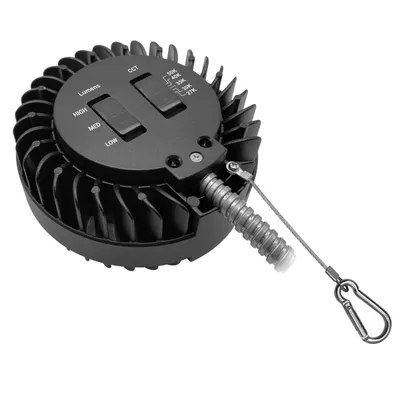

Select-N-Switch

Part numbers & ordering

	Part #	Description	Watts	Lumens	CCT	Voltage	Dimming	Finish	DLC	Price	Add to cart	Compare
	LED-CADM-3M56-5CCT-UNV	6, 8, 10" Module: CADM-Line	35/45/56W	3,500/4,000/5,000 lm	2700K/3000K/3500K/4000K/5000K	120–277V	0-10V, TRIAC/ELV	Black	—	Call for pricing	Quantity for LED-CADM-3M56-5CCT-UNV
