EnVision LED

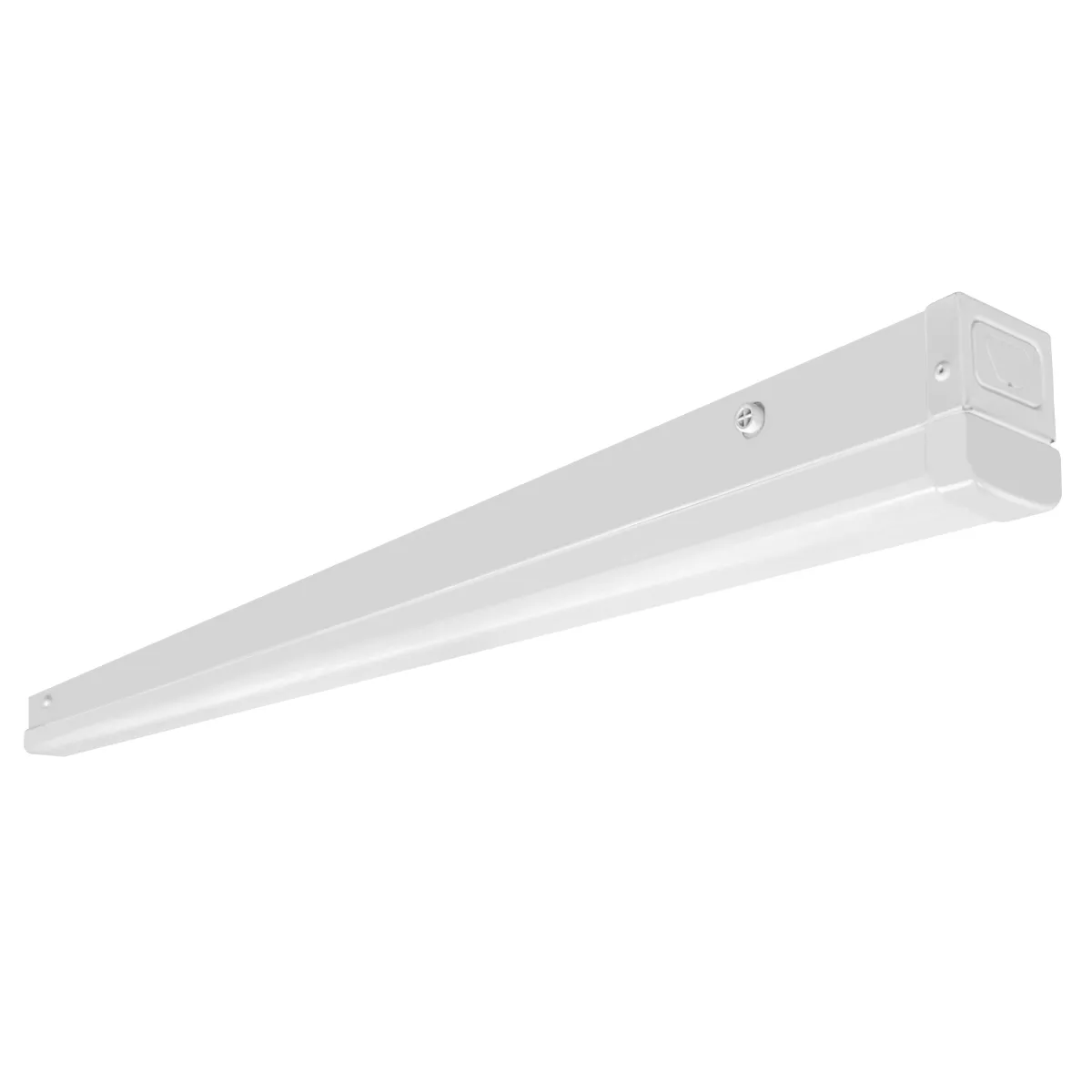

8' Mini Square LED Strip Fixtures
New4 part numbers · Strips (Linkable)
- Wattage
- 20–40W
- Lumens
- 6,000–12,000 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K, 6500K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed
- Warranty
- 5 years

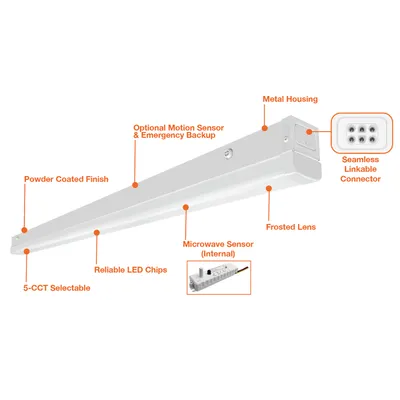

Key features
- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-MSTL-8FT-3P80-5CCT-HL | 8' Mini Square LED Strip Fixtures | 20/30/40W | 6,000/9,000/12,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
| LED-MSTL-8FT-3P80-5CCT-HL-BMS | 8' Mini Square LED Strip Fixtures | 20/30/40W | 6,000/9,000/12,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
| LED-MSTL-8FT-3P80-5CCT-HL-BMS-EMB | 8' Mini Square LED Strip Fixtures | 20/30/40W | 6,000/9,000/12,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
| LED-MSTL-8FT-3P80-5CCT-HL-EMB | 8' Mini Square LED Strip Fixtures | 20/30/40W | 6,000/9,000/12,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-mstl-8ft-3p80-5cct-hl-40w-50k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-60w-40k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-60w-30k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-80w-50k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-40w-30k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-40w-35k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-40w-40k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-80w-30k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-60w-65k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-80w-65k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-60w-35k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-80w-40k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-60w-50k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-40w-65k.ies
- IES fileled-mstl-8ft-3p80-5cct-hl-80w-35k.ies
