AFC-Line Full Cut Off Wall Packs Adjustable

1 / 24

EnVision LED

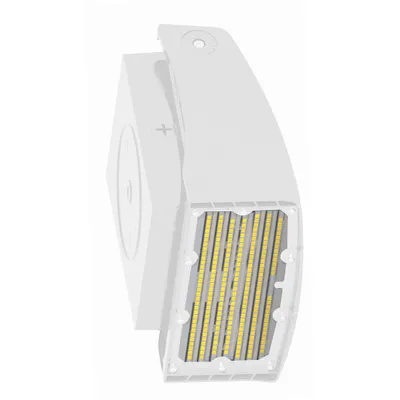

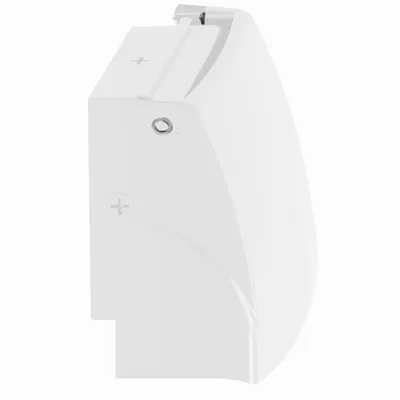

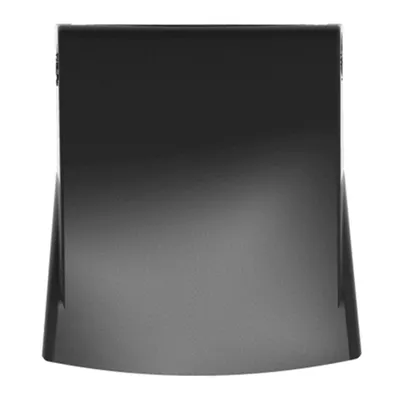

AFC-Line Full Cut Off Wall Packs Adjustable

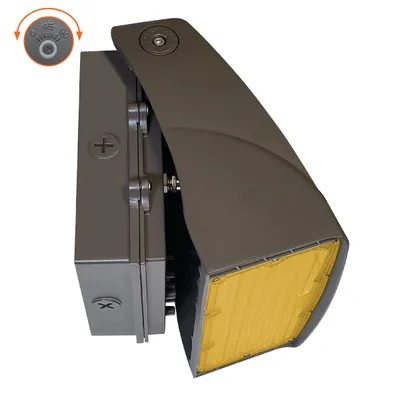

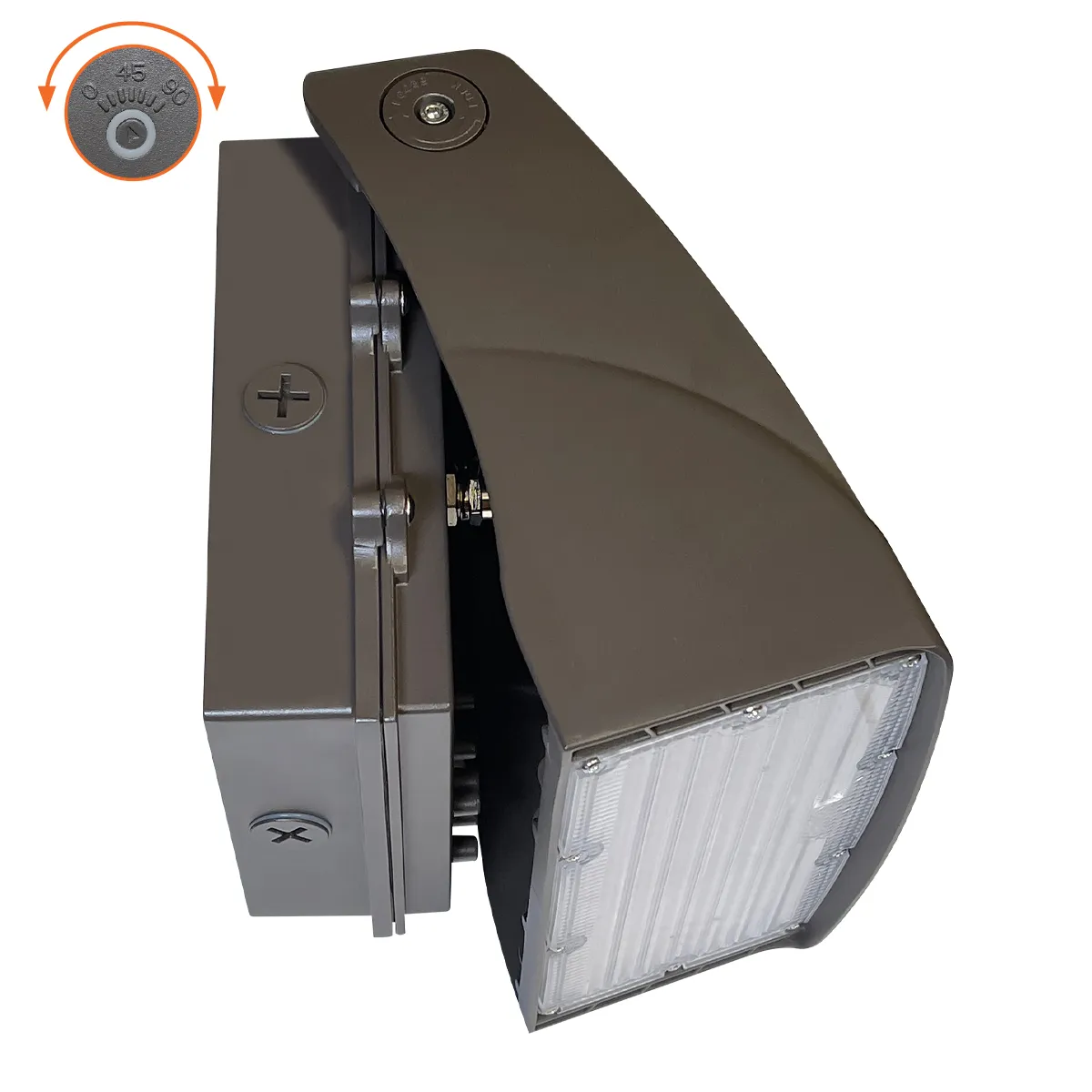

Full Cut Off Wall Packs Adjustable • Optical lens on individual LED chips, full forward throw light • Slim and architectural IP67-rated housing • Dark sky compliant • Adjustable up to 90° with an easy lock system

13 part numbers · Full Cut Off Wall Packs Adjustable

Wattage
10–80W
Lumens
1,350–13,882 lm
Color temperature
2200K, 3000K, 4000K, 5000K
Voltage
120–277V
Dimming
0-10V, Non-dimming
CRI
80+
IP rating
IP65
Finish
Bronze, Black, White
DLC
DLC Premium, DLC Listed
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

Full Cut Off Wall Packs Adjustable • Optical lens on individual LED chips, full forward throw light • Slim and architectural IP67-rated housing • Dark sky compliant • Adjustable up to 90° with an easy lock system

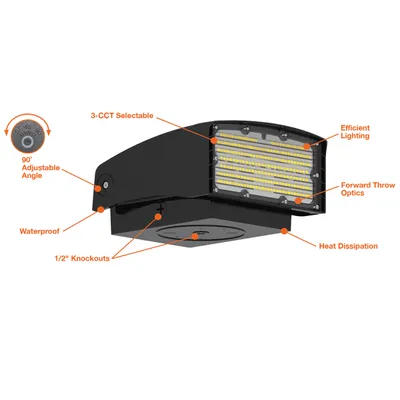

Key features

  • 3CCT
  • Select-N-Switch

Factory options

  • -EMB — 90 Minute Emergency Backup 30-120F
  • -CEMB — 90 Minute Emergency Backup Cold Weather -4-120F
  • -BMS — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
  • -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)

Add the suffix to the part number when ordering. See the spec sheet for compatibility.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
LED-WPFC-ADJ-30W-TRI-BZWall Pack: AFC-Line30W4,050 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPFC-ADJ-3P30W-TRI-BLFull Cut Off Wall Packs Adjustable: AFC-Line10/20/30W1,350/2,700/4,050 lm3000K/4000K/5000K120–277V0-10VBlackListedCall for pricing
LED-WPFC-ADJ-3P30W-TRI-BZFull Cut Off Wall Packs Adjustable: AFC-Line10/20/30W1,350/2,700/4,050 lm3000K/4000K/5000K120–277V0-10VBronzeListedCall for pricing
LED-WPFC-ADJ-3P30W-TRI-WHFull Cut Off Wall Packs Adjustable: AFC-Line10/20/30W1,350/2,700/4,050 lm3000K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
LED-WPFC-ADJ-3P50W-TRI-BLWall Pack: AFC-Line30/40/50W4,350/5,800/7,250 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPFC-ADJ-3P50W-TRI-BZWall Pack: AFC-Line30/40/50W4,350/5,800/7,250 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPFC-ADJ-3P50W-TRI-WHWall Pack: AFC-Line30/40/50W4,350/5,800/7,250 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
LED-WPFC-ADJ-55W-50K-BZWall Pack FC Adj. Final Prod55W6,150 lm5000K120–277VNon-dimmingBronze—Call for pricing
LED-WPFC-ADJ-3P80W-22K-BLFull Cut Off Wall Packs Adjustable: AFC-Line60/70/80W8,100/9,450/13,882 lm2200K120–277V0-10VBlackListedCall for pricing
LED-WPFC-ADJ-3P80W-22K-BZFull Cut Off Wall Packs Adjustable: AFC-Line60/70/80W8,100/9,450/13,882 lm2200K120–277V0-10VBronzeListedCall for pricing
LED-WPFC-ADJ-3P80W-TRI-BLWall Pack: AFC-Line60/70/80W8,100/9,450/13,882 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPFC-ADJ-3P80W-TRI-BZWall Pack: AFC-Line60/70/80W8,100/9,450/13,882 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPFC-ADJ-3P80W-TRI-WHWall Pack: AFC-Line60/70/80W8,100/9,450/13,882 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
