EnVision LED
Architectural COB Track Heads

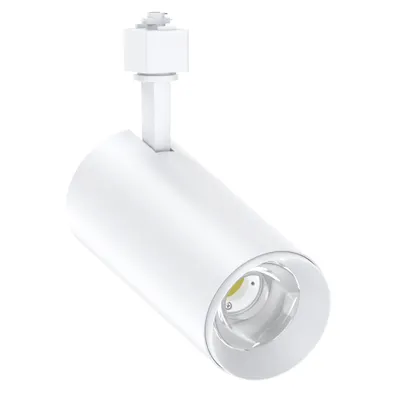

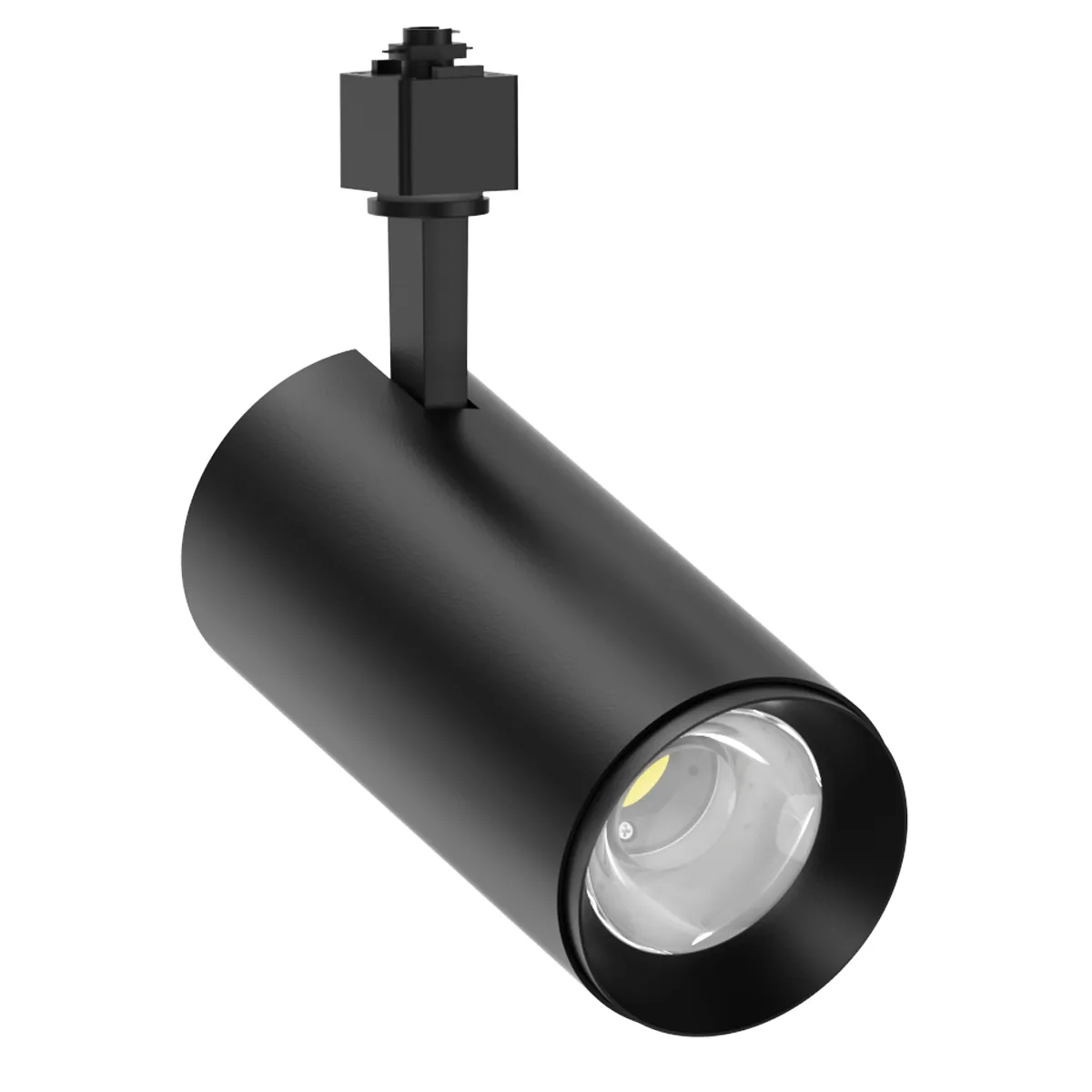

The EnVision ARCY-Line track head is the latest architectural line of fixtures launching in 2023.
6 part numbers · Architectural COB Track Heads
- Wattage
- 10–30W
- Lumens
- 1,000–3,000 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- TRIAC/ELV
- CRI
- 90+
- Finish
- Black, White
- Warranty
- 5 years
Overview

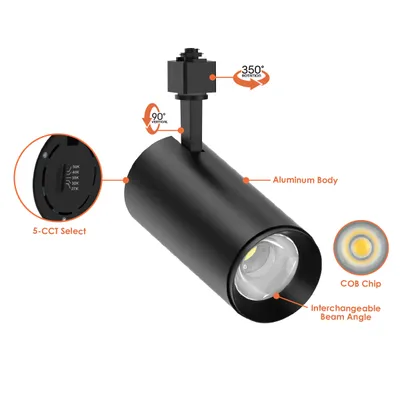

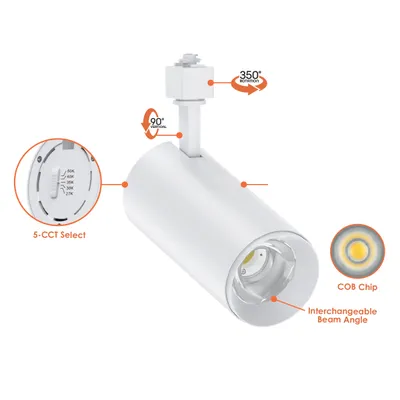

The EnVision ARCY-Line track head is the latest architectural line of fixtures launching in 2023. Available in 3 different lumen outputs,5CCT selectable, white or black finish, and different beam angles; find the perfect track solution for your next project.
Key features
- 5CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-ATH-10W-5CCT-30D-BLK | Track Heads: ACRY-Line | 10W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
| LED-ATH-10W-5CCT-30D-WH | Track Heads: ACRY-Line | 10W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-ATH-20W-5CCT-36D-BLK | Track Heads: ACRY-Line | 20W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
 | LED-ATH-20W-5CCT-36D-WH | Track Heads: ACRY-Line | 20W | 2,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-ATH-30W-5CCT-36D-BLK | Track Heads: ACRY-Line | 30W | 3,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Black | — | Call for pricing | ||
| LED-ATH-30W-5CCT-36D-WH | Track Heads: ACRY-Line | 30W | 3,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-ath-10w-5cct-30d-3500k.ies
- IES fileled-ath-10w-5cct-30d-2700k.ies
- IES fileled-ath-10w-5cct-60d-2700k.ies
- IES fileled-ath-10w-5cct-60d-4000k.ies
- IES fileled-ath-10w-5cct-24d-5000k.ies
- IES fileled-ath-10w-5cct-30d-3000k.ies
- IES fileled-ath-10w-5cct-24d-4000k.ies
- IES fileled-ath-10w-5cct-60d-3500k.ies
- IES fileled-ath-10w-5cct-30d-4000k.ies
- IES fileled-ath-10w-5cct-24d-3000k.ies
- IES fileled-ath-10w-5cct-24d-3500k.ies
- IES fileled-ath-10w-5cct-60d-3000k.ies
- IES fileled-ath-10w-5cct-24d-2700k.ies
- IES fileled-ath-10w-5cct-60d-5000k.ies
- IES fileled-ath-10w-5cct-30d-5000k.ies
- IES fileled-ath-20w-5cct-36d-4000k.ies
- IES fileled-ath-20w-5cct-36d-3000k.ies
- IES fileled-ath-20w-5cct-24d-4000k.ies
- IES fileled-ath-20w-5cct-60d-3500k.ies
- IES fileled-ath-20w-5cct-24d-3500k.ies
- IES fileled-ath-20w-5cct-24d-2700k.ies
- IES fileled-ath-20w-5cct-60d-5000k.ies
- IES fileled-ath-20w-5cct-60d-3000k.ies
- IES fileled-ath-20w-5cct-60d-4000k.ies
- IES fileled-ath-20w-5cct-24d-5000k.ies
- IES fileled-ath-20w-5cct-60d-2700k.ies
- IES fileled-ath-20w-5cct-24d-3000k.ies
- IES fileled-ath-30w-5cct-24d-3000k.ies
- IES fileled-ath-30w-5cct-36d-3500k.ies
- IES fileled-ath-30w-5cct-60d-2700k.ies
- IES fileled-ath-30w-5cct-60d-3500k.ies
- IES fileled-ath-30w-5cct-60d-5000k.ies
- IES fileled-ath-30w-5cct-36d-2700k.ies
- IES fileled-ath-30w-5cct-36d-4000k.ies
- IES fileled-ath-30w-5cct-60d-4000k.ies
- IES fileled-ath-30w-5cct-60d-3000k.ies
- IES fileled-ath-30w-5cct-24d-4000k.ies
- IES fileled-ath-30w-5cct-36d-3000k.ies
- IES fileled-ath-30w-5cct-36d-5000k.ies
