EnVision LED

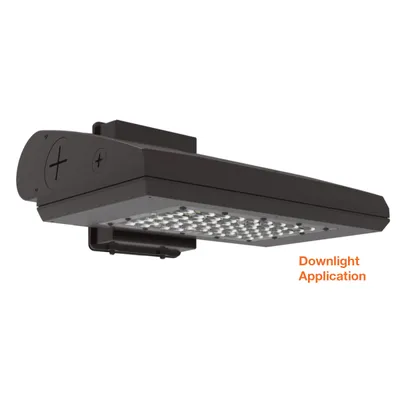

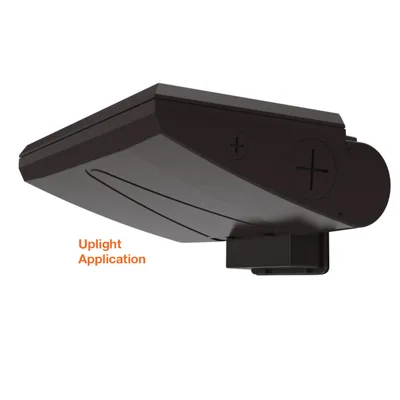

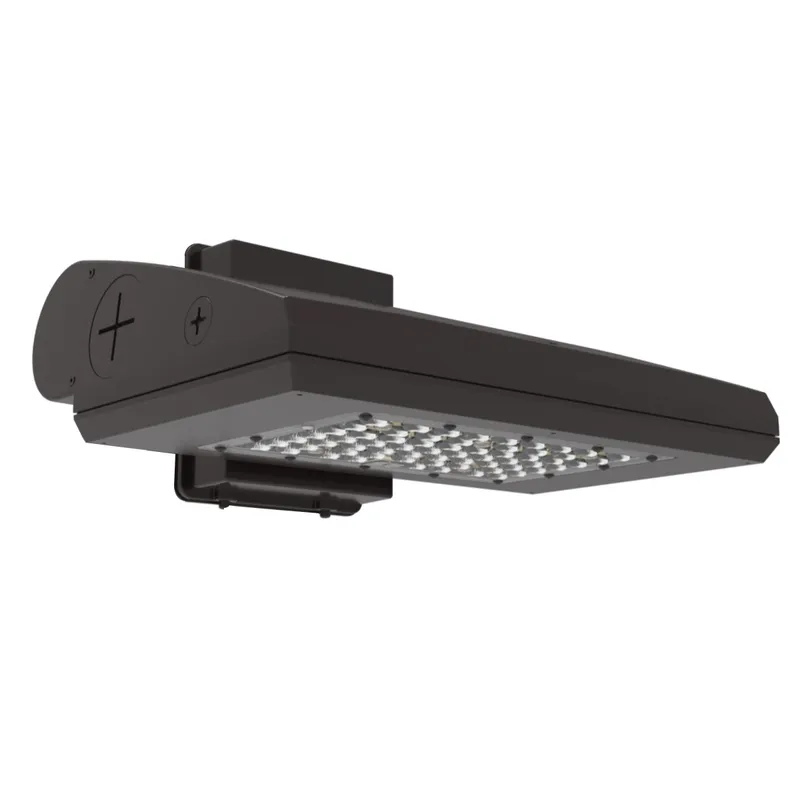

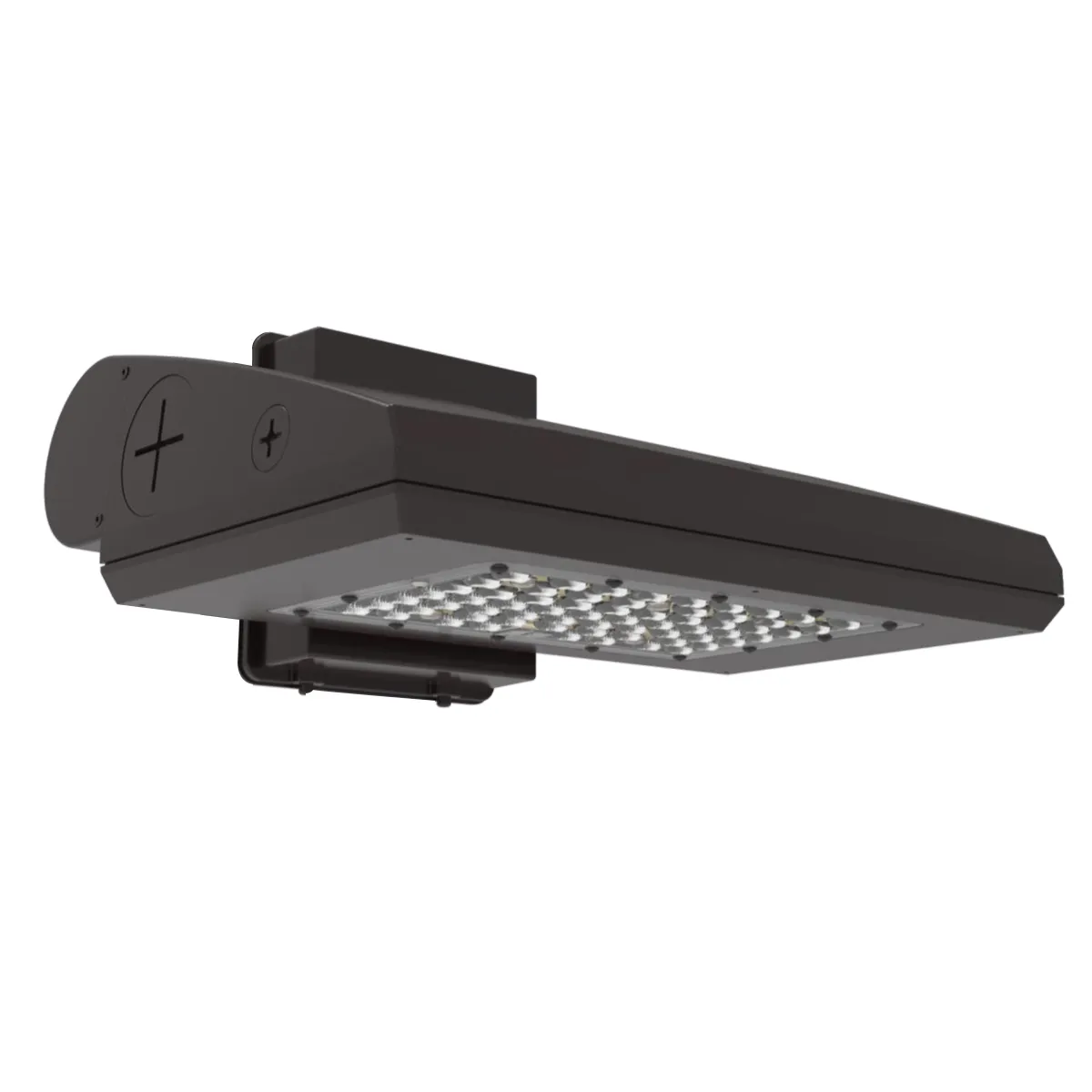

ARCY-Line: Full Cut Off Wall Packs w/ Photocell

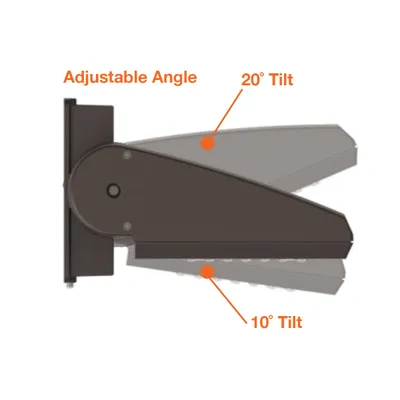

New10 part numbers · Full Cut Off Wall Packs Adjustable
- Wattage
- 30–100W
- Lumens
- 4,000–12,000 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–347V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Black, Bronze, White
- DLC
- DLC Premium
- Warranty
- 5 years

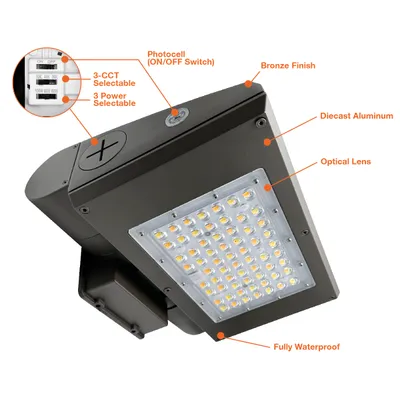

Key features
- 3CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
- -PC — On/off photocell
- -BMS — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
- -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
- 20KV — SG-20KV-UNV: 20KV Surge Protector
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

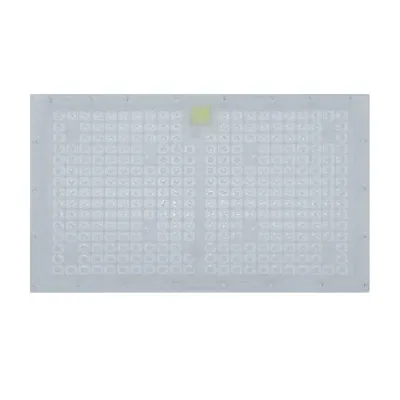

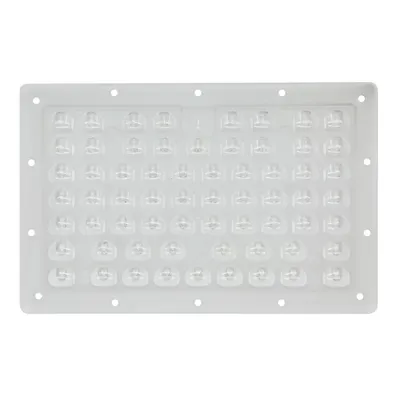

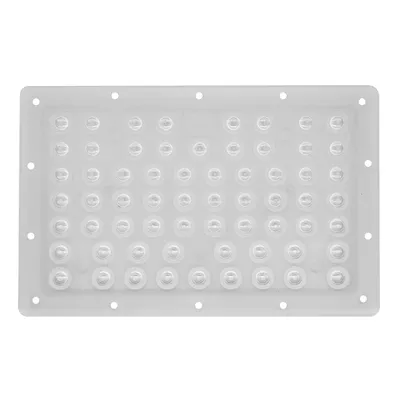

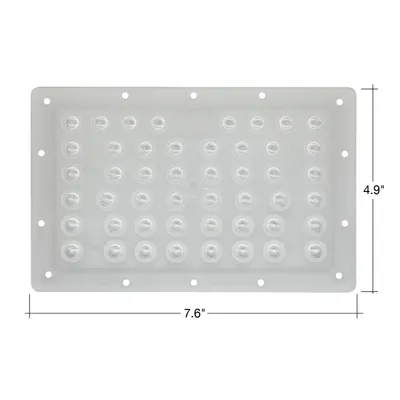

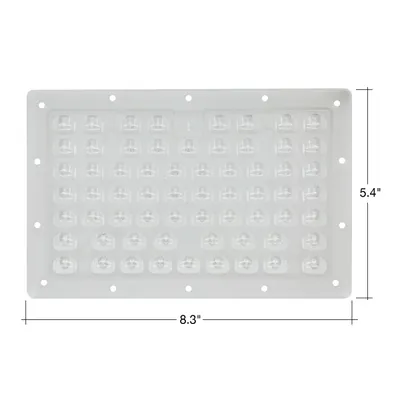

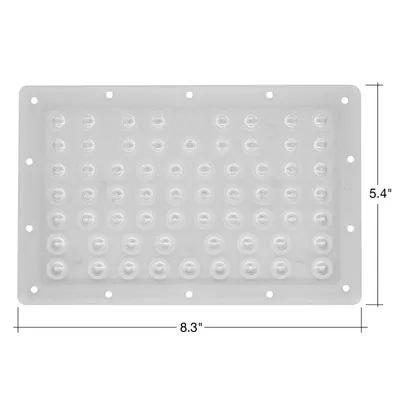

 | WPFC-ARC-M-T-IV | Wall Pack: ARCY-Line Optic for 3P100 | — | — | — | — | — | — | — | Call for pricing | ||
 | WPFC-ARC-M-T-V | Wall Pack: ARCY-Line Optic for 3P100 | — | — | — | — | — | — | — | Call for pricing | ||

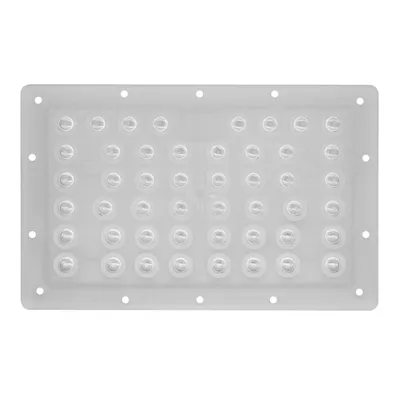

 | WPFC-ARC-S-T-IV | Wall Pack: ARCY-Line Optic for 3P65 | — | — | — | — | — | — | — | Call for pricing | ||
 | WPFC-ARC-S-T-V | Wall Pack: ARCY-Line Optic for 3P65 | — | — | — | — | — | — | — | Call for pricing | ||
 | LED-WPFC-ARC-3P65-TRI-BL-PC | Wall Pack: ARCY-Line | 30/50/65W | 4,000/6,250/8,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-WPFC-ARC-3P65-TRI-BZ-PC | Wall Pack: ARCY-Line | 30/50/65W | 4,000/6,250/8,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Bronze | Premium | Call for pricing | ||

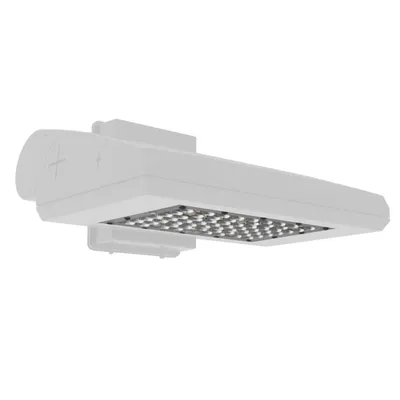

 | LED-WPFC-ARC-3P65-TRI-WH-PC | Wall Pack: ARCY-Line | 30/50/65W | 4,000/6,250/8,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | White | Premium | Call for pricing | ||
 | LED-WPFC-ARC-3P100-TRI-BL-PC | Wall Pack: ARCY-Line | 60/80/100W | 7,800/10,000/12,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-WPFC-ARC-3P100-TRI-BZ-PC | Wall Pack: ARCY-Line | 60/80/100W | 7,800/10,000/12,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-WPFC-ARC-3P100-TRI-WH-PC | Wall Pack: ARCY-Line | 60/80/100W | 7,800/10,000/12,000 lm | 3000K/4000K/5000K | 120–347V | 0-10V | White | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-wpfc-arc-3p65-tri-type-iii-30w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-iii-50w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-iii-65w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-30w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-50w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-65w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-30w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-50w-iesna2002.ies
- IES fileled-wpfc-arc-3p65-tri-type-65w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-60w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-80w_iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-100w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-60w_iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-80w_iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-100w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-iii-60w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-iii-80w-iesna2002.ies
- IES fileled-wpfc-arc-3p100-tri-type-iii-100w-iesna2002.ies
