EnVision LED
Area Light 2 Shoebox Flood Fixtures 3CCT+ 3 Power Selectable w/ Twist-C Technology: Control Ready
Light up your outdoor area with the new EnVision Bolt Series, our latest line of Area Light fixtures with high lumen per watt efficacy combined with a stunning finish.
13 part numbers · Area Light 2 Fixtures
- Wattage
- 60–300W
- Lumens
- 8,329–40,195 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Bronze
- DLC
- DLC Premium, DLC Listed
- Warranty
- 5–7 years
Overview

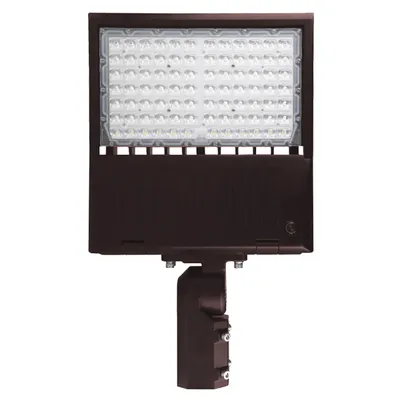

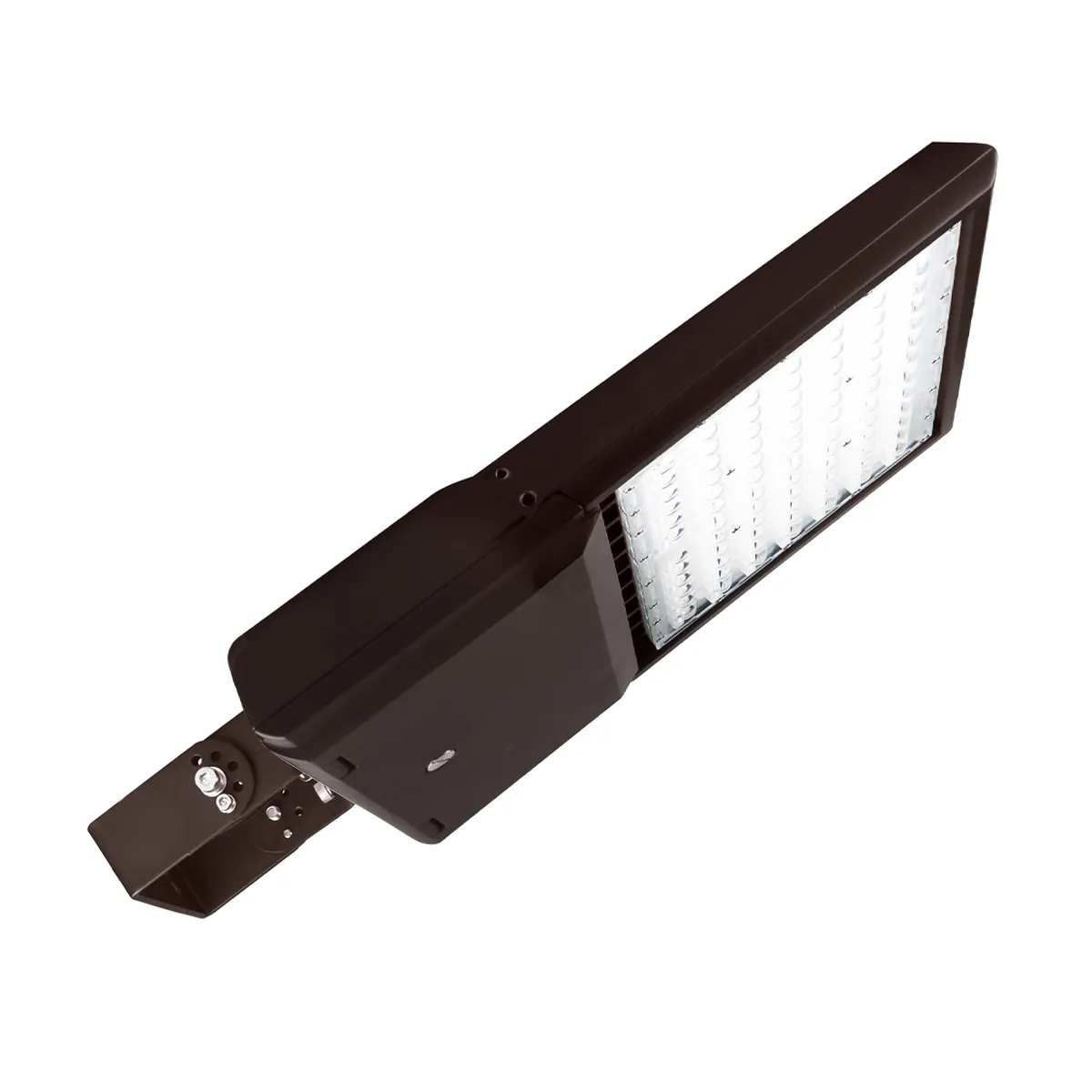

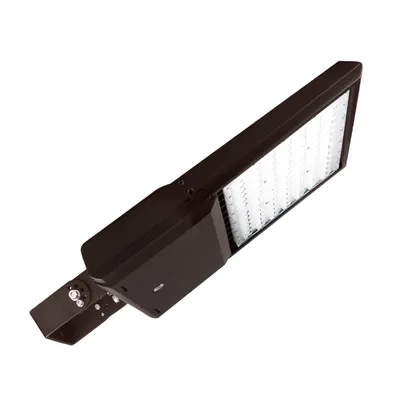

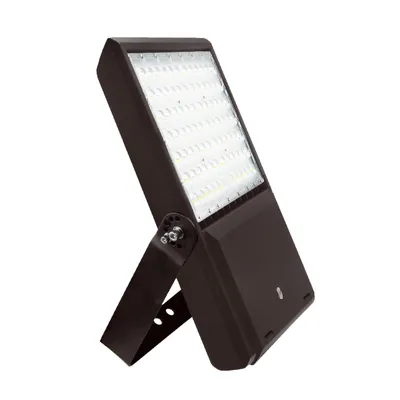

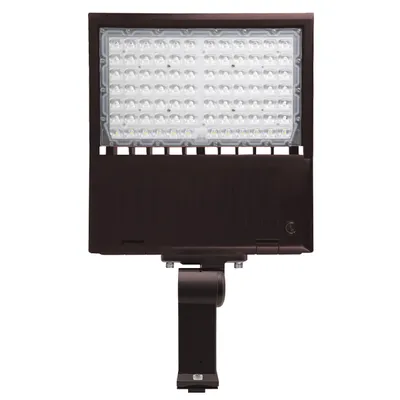

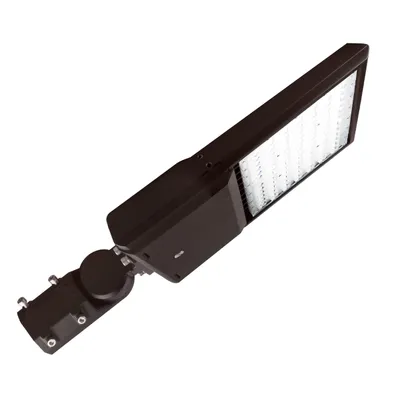

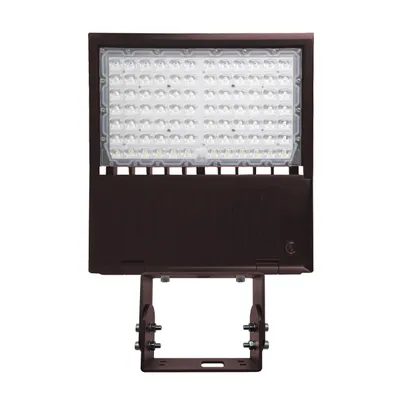

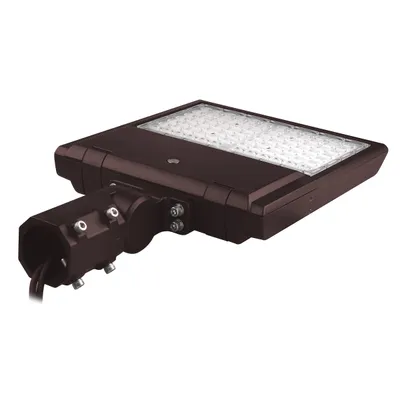

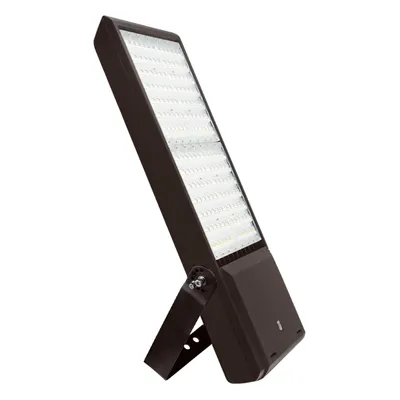

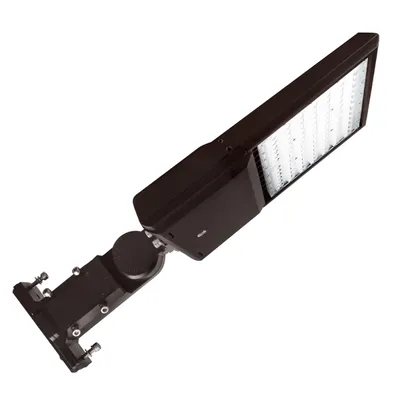

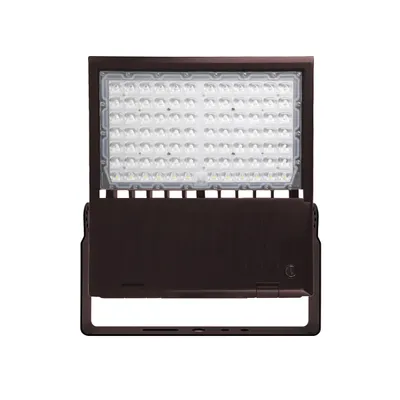

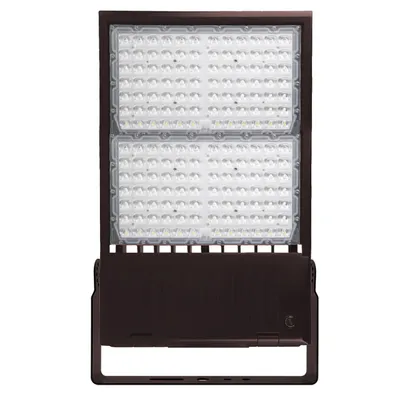

Light up your outdoor area with the new EnVision Bolt Series, our latest line of Area Light fixtures with high lumen per watt efficacy combined with a stunning finish. The EnVision area flood lights are equipped with a die-cast aluminum housing, finished with a matte bronze powder coat paint, and anti-corrosion priming. The Large BOLT series are available in a trunnion, yoke, slip fitter, or straight arm mount. Enjoy lighting up your outdoor are with over 140-145lm/w+ efficiency.
Key features
- 3CCT
- Select-N-Switch
- Twist-C
- 1CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-ARL2-3P100W-TRI-BZ-TR-UNV | Area Light TRI: Bolt-Line w/ Trunnion | 60/80/100W | 8,329/11,106/13,882 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-ARL2-3P100W-TRI-BZ-YK-UNV | Area Light TRI: Bolt-Line w/ Yoke | 60/80/100W | 8,329/11,106/13,882 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-ARL2-150W-50K-BZ-SF-UNV | Area Light: Bolt-Line w/ Slip Fitter | 150W | 21,750 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-ARL2-150W-50K-BZ-TR-UNV | Area Light: Bolt-Line w/ Trunnion | 150W | 21,750 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL2-3P150W-TRI-BZ-SF-UNV | Area Light TRI: Bolt-Line w/ Slip Fitter | 120/135/150W | 16,658/18,740/20,823 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
 | LED-ARL2-3P150W-TRI-BZ-SFA-HV | Area Light TRI: Bolt-Line w/ Slip Fitter/ Straight Arm Combo | 120/135/150W | 16,658/18,740/20,823 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL2-240W-50K-BZ-SFA-UNV | Area Light: Bolt-Line w/ Slip Fitter/ Straight Arm Combo | 240W | 33,790 lm | 5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL2-3P240W-TRI-BZ-SF-UNV | Area Light TRI: Bolt-Line w/ Slip Fitter | 180/210/240W | 26,100/30,450/34,800 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
 | LED-ARL2-3P240W-TRI-BZ-YK-UNV | Area Light TRI: Bolt-Line w/ Yoke | 180/210/240W | 26,100/30,450/34,800 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL2-300W-50K-BZ-SF-UNV | Area Light: Bolt-Line w/ Slip Fitter | 300W | 40,195 lm | 5000K | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
| LED-ARL2-300W-50K-BZ-SFA-UNV | Area Light: Bolt-Line w/ Slip Fitter/ Straight Arm Combo | 300W | 40,195 lm | 5000K | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
| LED-ARL2-300W-50K-BZ-TR-UNV | Area Light: Bolt-Line w/ Trunnion | 300W | 40,195 lm | 5000K | 120–277V | 0-10V | Bronze | Listed | Call for pricing | ||
| LED-ARL2-3P300W-TRI-BZ-YK-UNV | Area Light TRI: Bolt-Line w/ Yoke | 260/280/300W | 34,835/37,515/40,195 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing |
