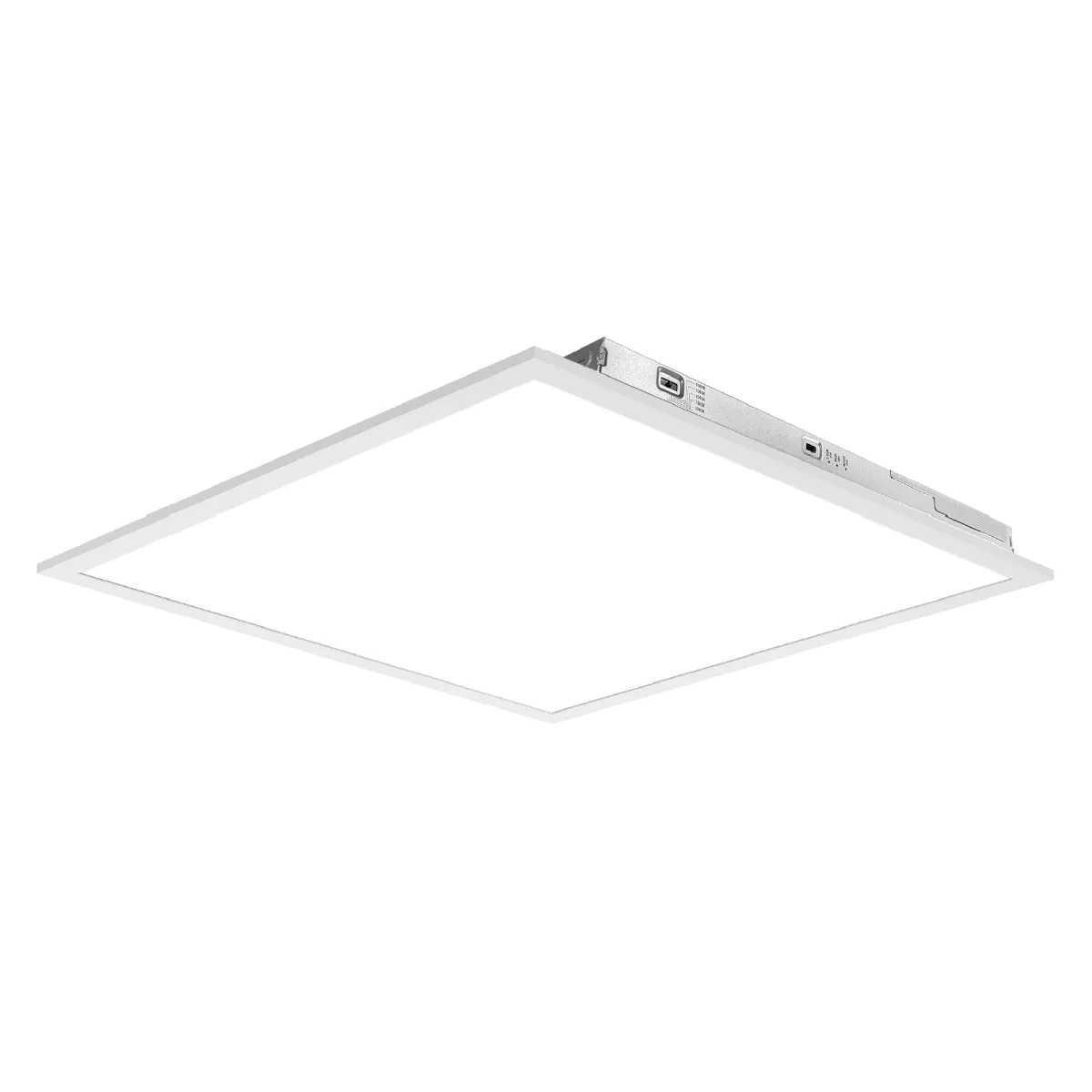

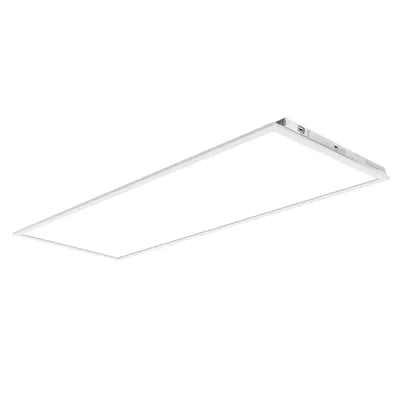

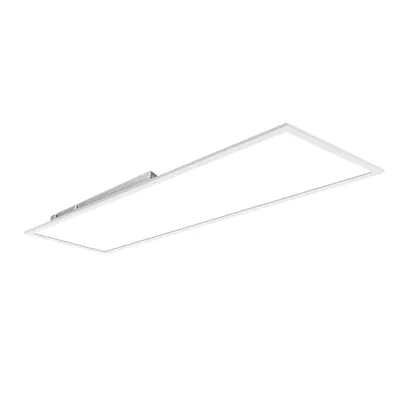

EnVision LED
Backlit Panels 5-CCT and 3-Power Selectable - Dim to Off

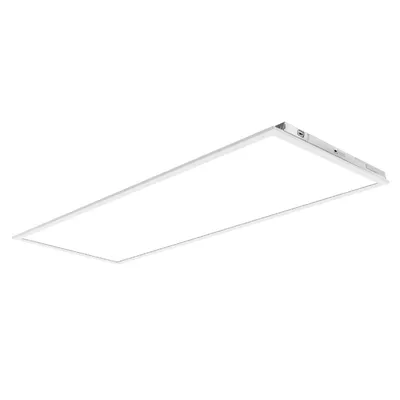

The EnVision LED Back-lit Panel has a unique modern design configured to combine high performance LED chips and our leading technology diffuser, which makes the ideal solution for any commercial lighting need.
8 part numbers · Backlit Panels
- Wattage
- 12–65W
- Lumens
- 1,500–8,125 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K, 6500K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed, DLC Premium
- Warranty
- 5 years
Overview
The EnVision LED Back-lit Panel has a unique modern design configured to combine high performance LED chips and our leading technology diffuser, which makes the ideal solution for any commercial lighting need. This high efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10v dimming capacity. Switchable between 20, 30, 40 watts of power usage and between 35, 40, and 50k color temperatures!

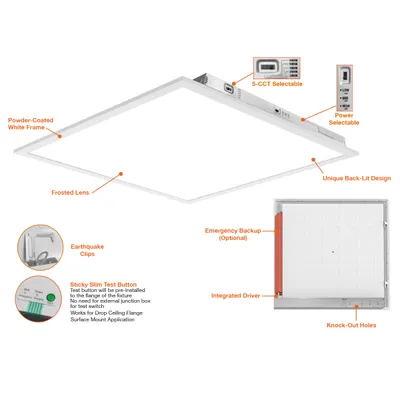

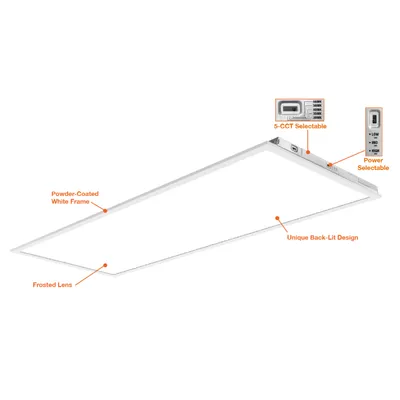

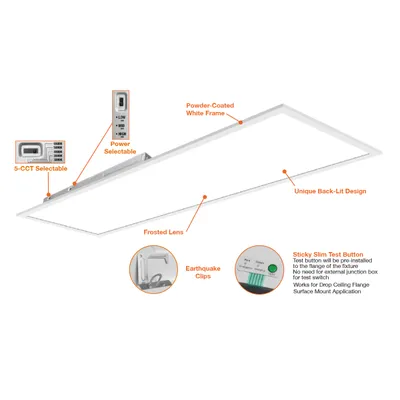

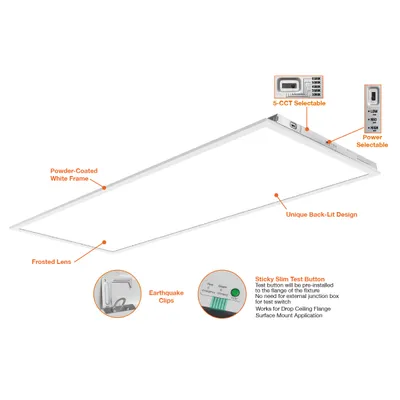

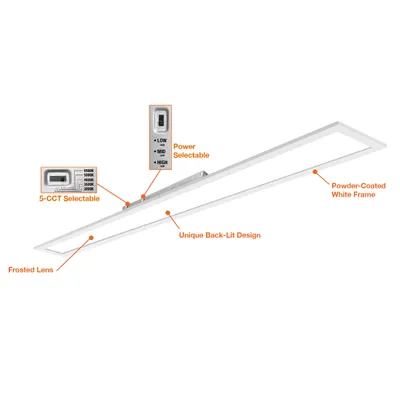

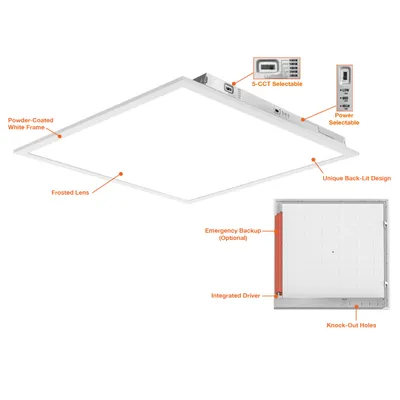

Key features
- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-BPL-1x4-5P32-5CCT-HL-SR | 1x4 LED Panel: BackLit Line | 12/17/22/27/32W | 1,500/2,125/2,750/3,375/4,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||

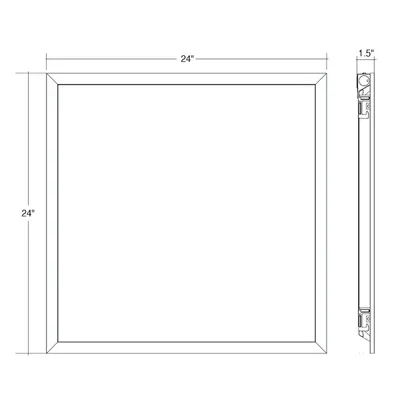

 | LED-BPL-2x2-5P32-5CCT-HL-SR | 2x2 LED Panel: BackLit Line | 12/17/22/27/32W | 1,500/2,125/2,750/3,375/4,000 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||

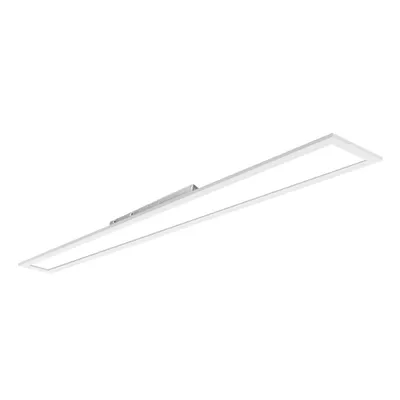

 | LED-BPL-1x4-3M40-5CCT | 1x4 LED Panel: Backlit-Line | 20/30/40W | 2,200/3,300/4,400 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-BPL-2x2-3M40-5CCT | 2x2 LED Panel: Backlit-Line | 20/30/40W | 2,200/3,300/4,400 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-BPL-2x2-3M50-5CCT-HL | 2x2 LED Panel: Backlit-Line | 30/40/50W | 3,750/5,000/6,250 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||

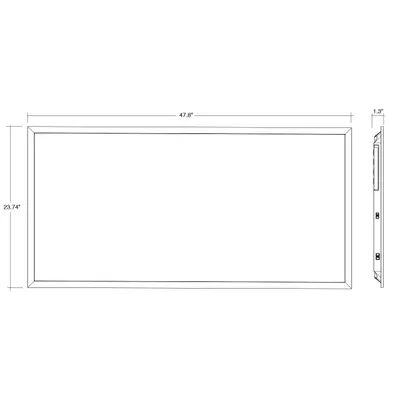

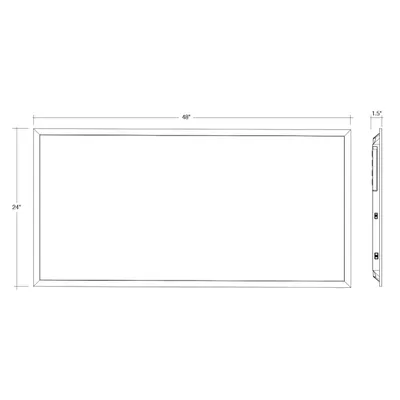

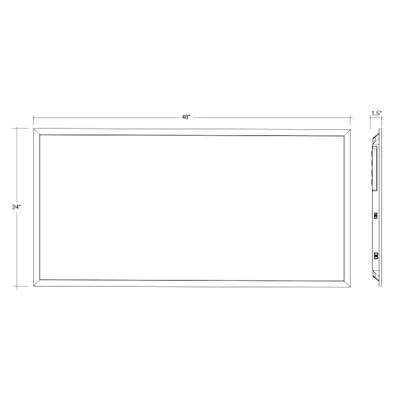

 | LED-BPL-2x4-3M50-5CCT | 2x4 LED Panel: Backlit-Line | 30/40/50W | 3,300/4,400/5,500 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-BPL-2x4-5P50-5CCT-HL-SR | 2x4 LED Panel: BackLit Line | 20/25/30/40/50W | 2,500/3,125/3,750/5,000/6,250 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-BPL-2x4-3M65-5CCT-HL | 2x4 LED Panel: Backlit-Line | 45/55/65W | 6,250/6,875/8,125 lm | 3000K/3500K/4000K/5000K/6500K | 120–277V | 0-10V | White | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-bpl2x2-3m40-5cct-20w.ies
- IES fileled-bpl2x2-3m40-5cct-30w.ies
- IES fileled-bpl2x2-3m40-5cct-40w.ies
- IES fileled-bpl-2x4-3m50-5cct-30w.ies
- IES fileled-bpl-2x4-3m50-5cct-50w.ies
- IES fileled-bpl-2x4-3m50-5cct-40w.ies
- IES fileled-bpl1x4-3m40-5cct-40w-7-25.ies
- IES fileled-bpl1x4-3m40-5cct-30w-7-25.ies
- IES fileled-bpl1x4-3m40-5cct-20w-7-25.ies
- IES fileled-bpl-2x2-3m50-5cct-hl-40w.ies
- IES fileled-bpl-2x2-3m50-5cct-hl-50w.ies
- IES fileled-bpl-2x2-3m50-5cct-hl-30w.ies
- IES fileled-bpl-2x4-3m65-hl-65w-ies.ies
- IES fileled-bpl-2x4-3m65-hl-45w-ies.ies
- IES fileled-bpl-2x4-3m65-hl-55w-ies.ies
- IES fileled-bpl-2x2-5p32-5cct-hl-sr-32w.ies
- IES fileled-bpl-2x2-5p32-5cct-hl-sr-17w.ies
- IES fileled-bpl-2x2-5p32-5cct-hl-sr-20w.ies
- IES fileled-bpl-2x2-5p32-5cct-hl-sr-25w.ies
- IES fileled-bpl-2x2-5p32-5cct-hl-sr-12w.ies
- IES fileled-bpl-2x4-5p50-5cct-hl-sr-20w.ies
- IES fileled-bpl-2x4-5p50-5cct-hl-sr-25w.ies
- IES fileled-bpl-2x4-5p50-5cct-hl-sr-30w.ies
- IES fileled-bpl-2x4-5p50-5cct-hl-sr-40w.ies
- IES fileled-bpl-2x4-5p50-5cct-hl-sr-50w.ies
