EnVision LED

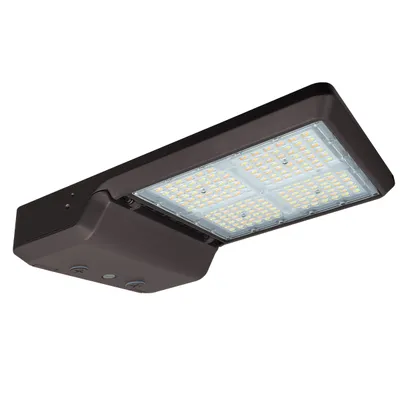

Bolt-Line: Area Lights- 3CCT+ 5 Power Selectable w/ Twist-C Technology: Control Ready - Fixture Body + Bracket Sold Seperately

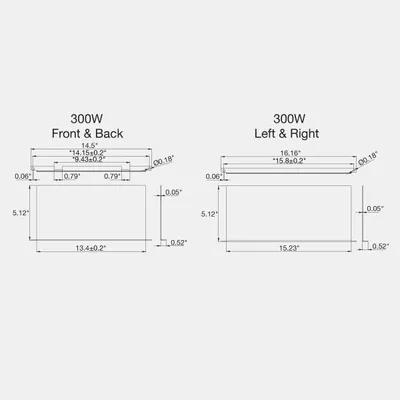

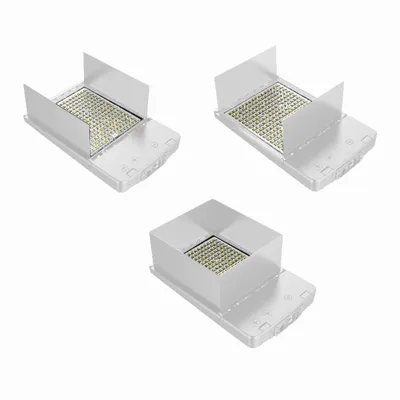

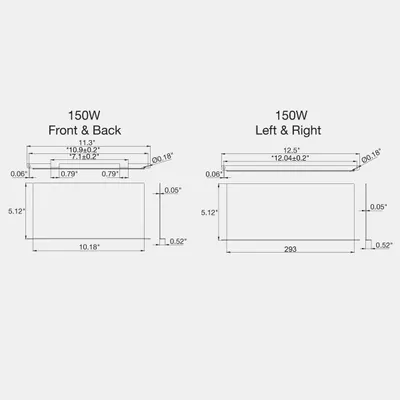

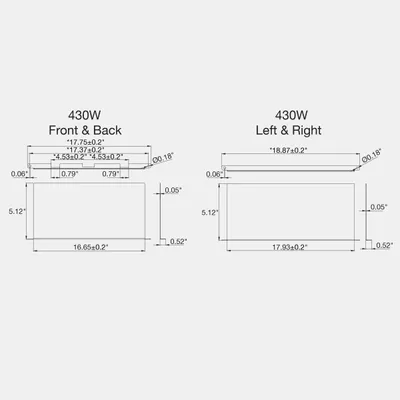

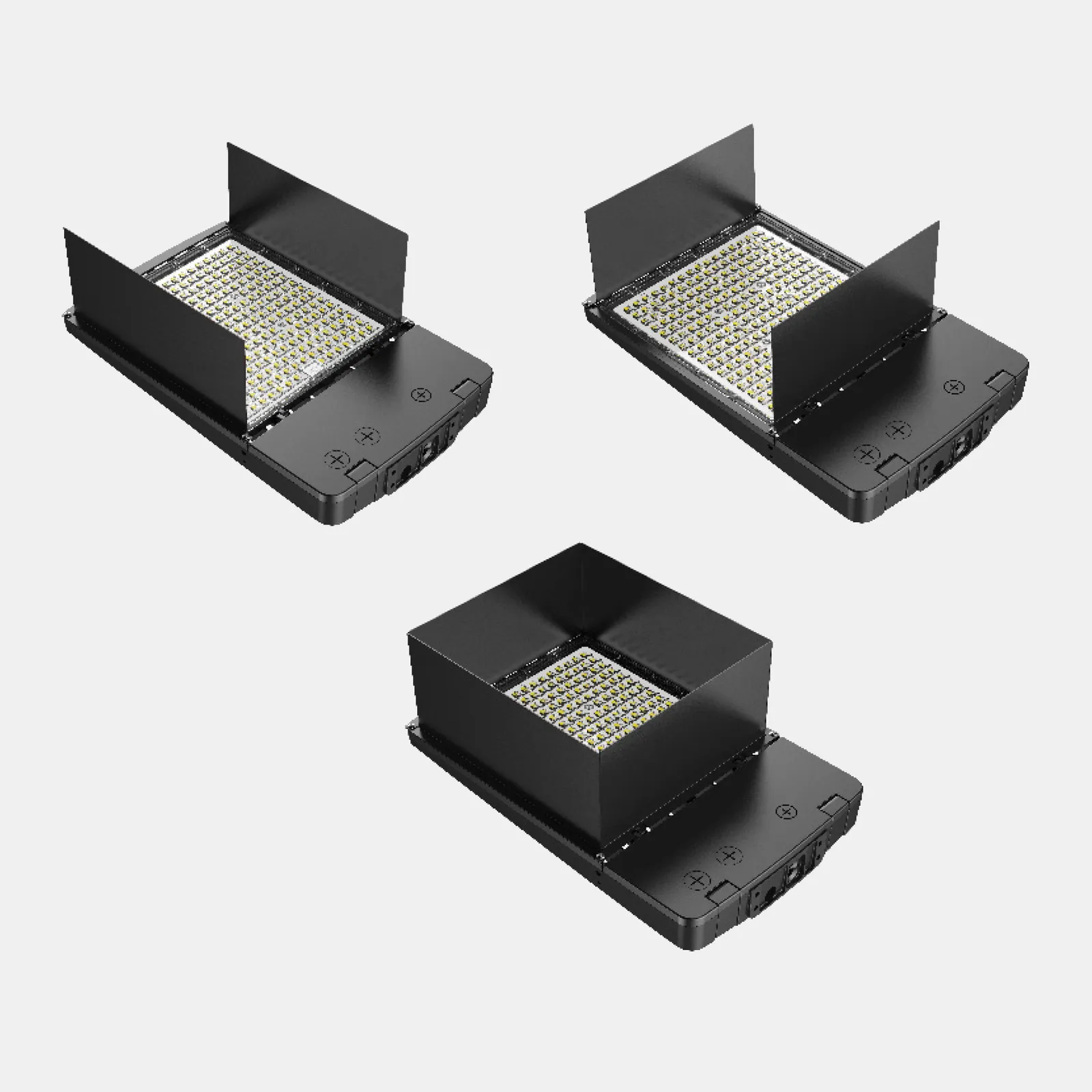

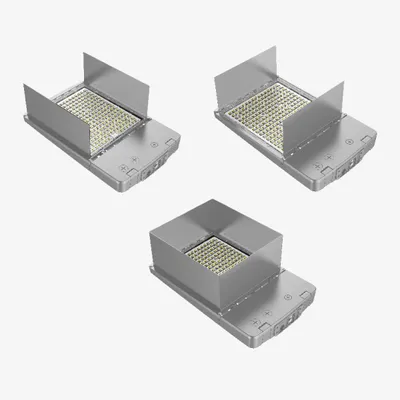

NewThe ARL3 house side shield can be mounted to the back or front of the fixture.
8 part numbers · Area & Flood Light 3 Fixtures - 3-CCT + Power Selectable
- Wattage
- 20–450W
- Lumens
- 10,150–63,000 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Bronze
- DLC
- DLC Premium
- Warranty
- 7 years
Overview
The ARL3 house side shield can be mounted to the back or front of the fixture.
Key features
- 3CCT
- Twist-C
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-ARL3-5P100-TRI-BZ-UNV | Area Light G3: Bolt-Line | 20/40/60/80/100W | — | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P150-TRI-BZ-HV | Area Light G3: Bolt-Line | 70/90/110/130/150W | — | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-ARL3-5P150-TRI-BZ-UNV | Area Light G3: Bolt-Line | 70/90/110/130/150W | 10,150/12,600/15,400/18,200/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P240-TRI-BZ-UNV | Area Light G3: Bolt-Line | 140/165/190/215/240W | 33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P300-TRI-BZ-HV | Area Light G3: Bolt-Line | 200/225/250/275/300W | 42,000 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P300-TRI-BZ-UNV | Area Light G3: Bolt-Line | 200/225/250/275/300W | 42,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P450-TRI-BZ-HV | Area Light G3: Bolt-Line | 330/360/390/420/450W | 46,200/50,400/54,600/58,800/63,000 lm | 3000K/4000K/5000K | 277–480V | 0-10V | Bronze | Premium | Call for pricing | ||
| LED-ARL3-5P450-TRI-BZ-UNV | Area Light G3: Bolt-Line | 330/360/390/420/450W | 46,200/50,400/54,600/58,800/63,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- Product video
- IES fileled-arl3-5p100-040w-hss-shield-t5.ies
- IES fileled-arl3-5p100-100w-hss-shield-t3.ies
- IES fileled-arl3-5p100-060w-hss-shield-t2.ies
- IES fileled-arl3-5p100-040w-hss-shield-t2.ies
- IES fileled-arl3-100w-t4.ies
- IES fileled-arl3-5p100-100w-hss-shield-t5.ies
- IES fileled-arl3-5p100-040w-hss-shield-t4.ies
- IES fileled-arl3-5p100-025w-hss-shield-t4.ies
- IES fileled-arl3-5p100-100w-hss-shield-t2.ies
- IES fileled-arl3-5p100-040w-hss-shield-t3.ies
- IES fileled-arl3-080w-t4.ies
- IES fileled-arl3-060w-t3.ies
- IES fileled-arl3-5p100-060w-hss-shield-t3.ies
- IES fileled-arl3-025w-t5.ies
- IES fileled-arl3-025w-t3.ies
- IES fileled-arl3-100w-t5.ies
- IES fileled-arl3-5p100-080w-hss-shield-t2.ies
- IES fileled-arl3-060w-t5.ies
- IES fileled-arl3-5p100-025w-hss-shield-t3.ies
- IES fileled-arl3-100w-t3.ies
- IES fileled-arl3-025w-t4.ies
- IES fileled-arl3-5p100-100w-hss-shield-t4.ies
- IES fileled-arl3-040w-t2.ies
- IES fileled-arl3-5p100-025w-hss-shield-t5.ies
- IES fileled-arl3-5p100-080w-hss-shield-t4.ies
- IES fileled-arl3-060w-t2.ies
- IES fileled-arl3-080w-t3.ies
- IES fileled-arl3-040w-t3.ies
- IES fileled-arl3-025w-t2.ies
- IES fileled-arl3-080w-t2.ies
- IES fileled-arl3-060w-t4.ies
- IES fileled-arl3-5p100-080w-hss-shield-t5.ies
- IES fileled-arl3-100w-t2.ies
- IES fileled-arl3-5p100-080w-hss-shield-t3.ies
- IES fileled-arl3-040w-t4.ies
- IES fileled-arl3-5p100-025w-hss-shield-t2.ies
- IES fileled-arl3-080w-t5.ies
- IES fileled-arl3-040w-t5.ies
- IES fileled-arl3-5p150-070w-hss-shield-t3-ies.ies
- IES fileled-arl3-5p150-070w-hss-shield-t2-ies.ies
