EnVision LED

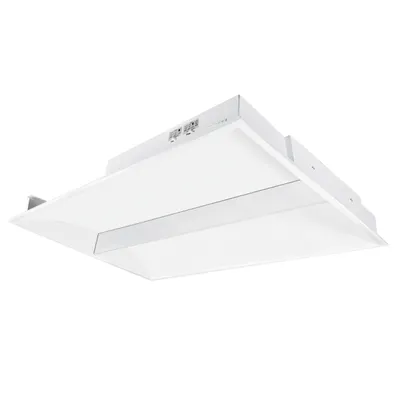

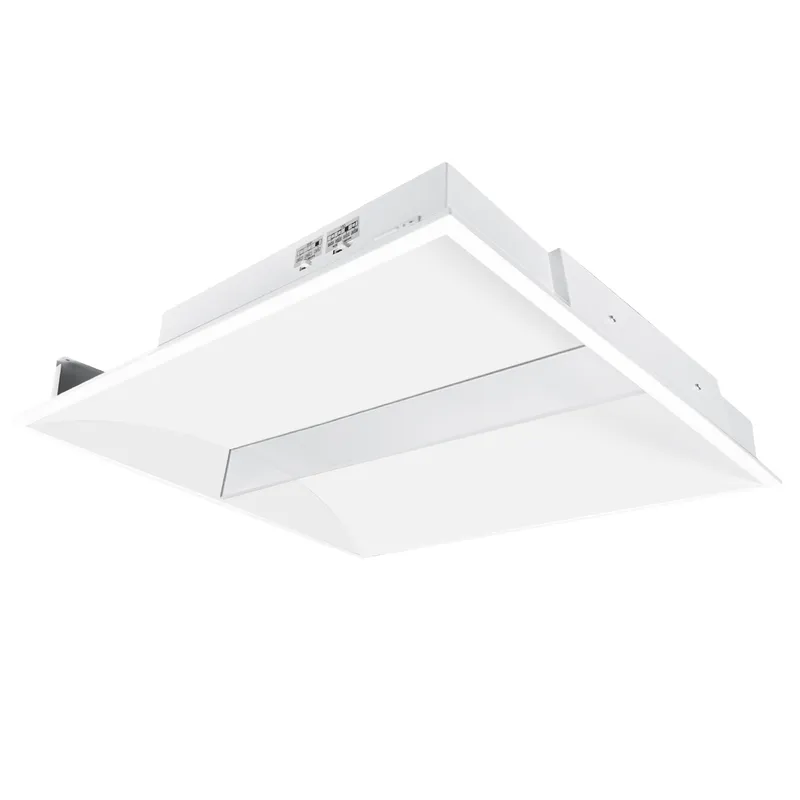

Center Basket Thin LuxLume Troffer Metal Body- Must buy in 2 pack box quantities
New2 part numbers · Center Basket Troffers
- Wattage
- 24–50W
- Lumens
- 2,880–6,000 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed
- Warranty
- 5 years

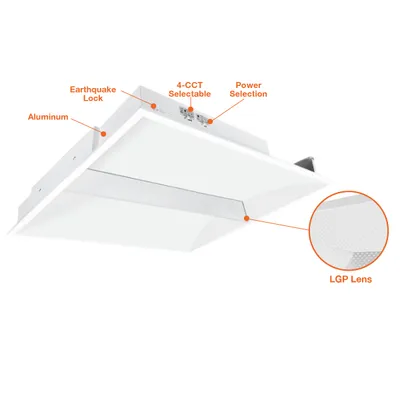

Key features
- 4CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup
- -BMS — S-BMS-INT-1: Bi Level Motion + Daylight Sensor
- -BMS-BT — S-BMS-INT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
- -HV — 347-480V Step Down Transformer
- -90CRI — CRI90 LED Board
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

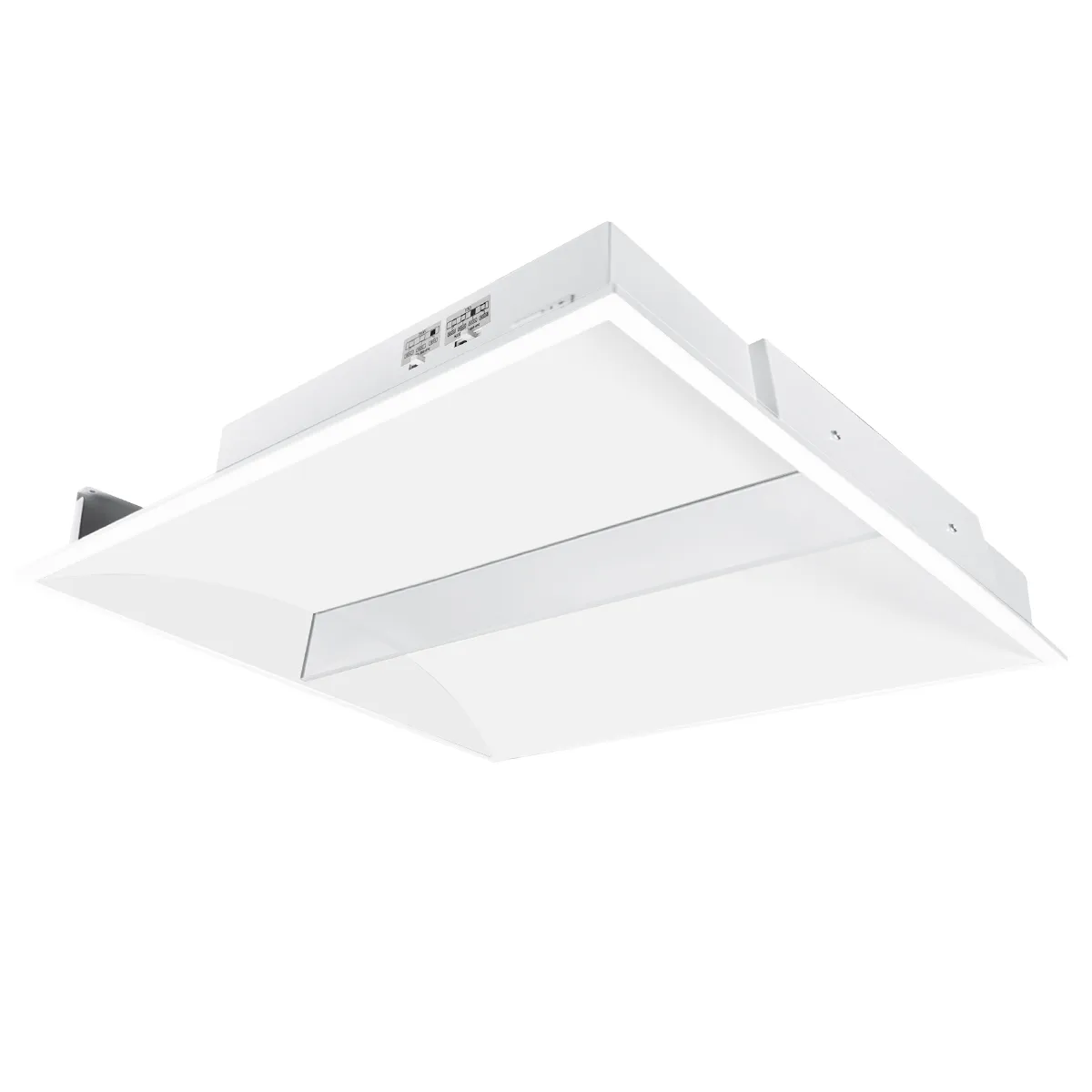

 | LED-CBT-TL-2X2-3P40-4CCT | 2x2 Thin LuxLume Troffer: ARCY-Line | 24/35/40W | 2,880/4,200/4,800 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing | ||

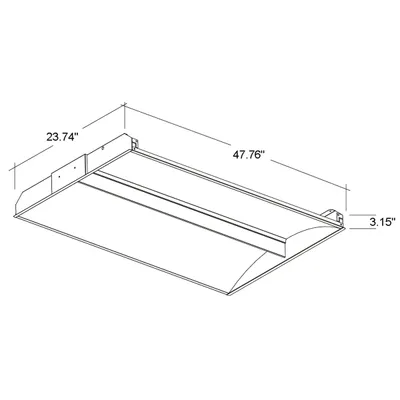

 | LED-CBT-TL-2X4-3P50-4CCT | 2x4 Thin LuxLume Troffer: ARCY-Line | 30/40/50W | 3,600/4,800/6,000 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing |
