EnVision LED

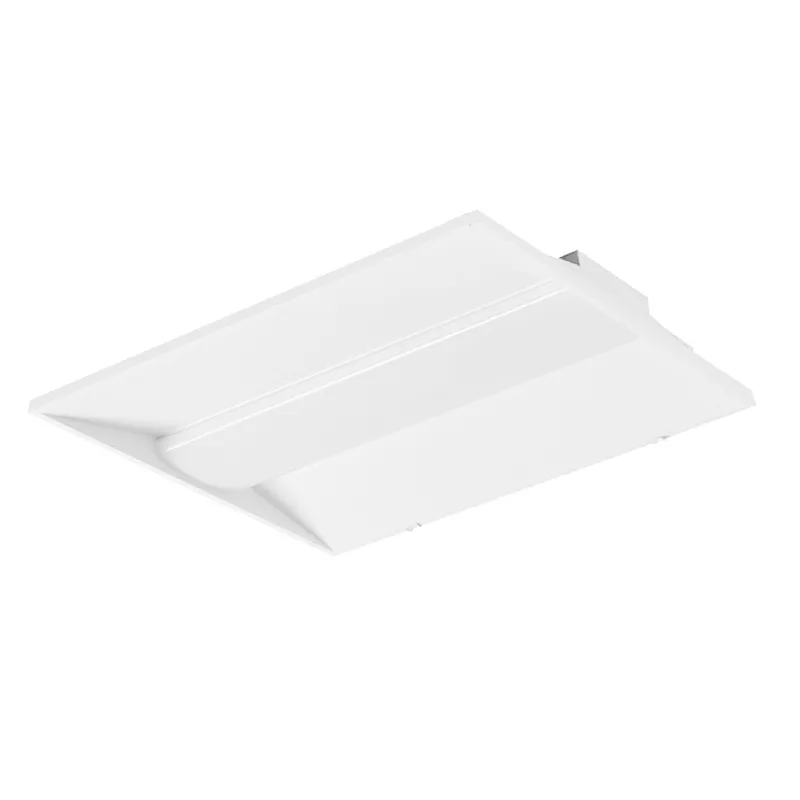

Center Basket Troffer Metal Body - 5-Power + 5-CCT Selectable
NewThe latest EnVision LED Center Basket Troffer Series is compact & light for easy installation.
2 part numbers · Center Basket Troffers
- Wattage
- 20–50W
- Lumens
- 2,500–6,250 lm
- Color temperature
- 3000K, 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed, DLC Premium
- Warranty
- 5 years
Overview
The latest EnVision LED Center Basket Troffer Series is compact & light for easy installation. In addition, EnVision's troffer features 3-Power Select and 4-CCT select options. Retrofit existing fluorescent troffers used in drop ceilings, enjoy minimal power consumption, long lifespan, and bright illumination.

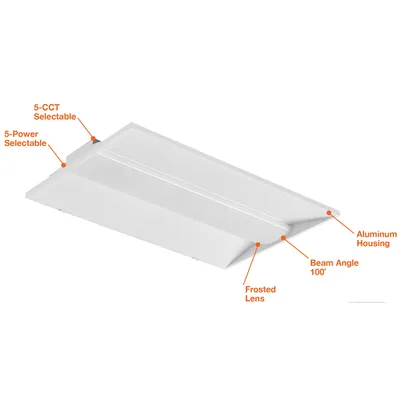

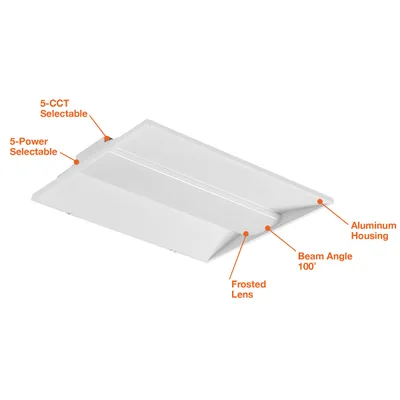

Key features
- 5CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-CBT-2X2-5P40-5CCT | 2x2 LED Center Basket Troffer: C-Line | 20/25/30/35/40W | 2,500/3,125/3,750/4,375/5,000 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-CBT-2X4-5P50-5CCT | 2x2 LED Center Basket Troffer: C-Line | 20/25/30/40/50W | 3,750/4,375/5,000/5,625/6,250 lm | 3000K/3500K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-cbt-2x2-5p40-5cct-20w.ies
- IES fileled-cbt-2x2-5p40-5cct-35w.ies
- IES fileled-cbt-2x2-5p40-5cct-30w.ies
- IES fileled-cbt-2x2-5p40-5cct-40w.ies
- IES fileled-cbt-2x2-5p40-5cct-25w.ies
- IES fileled-cbt-2x4-5p50-5cct-20w.ies
- IES fileled-cbt-2x4-5p50-5cct-40w.ies
- IES fileled-cbt-2x4-5p50-5cct-50w.ies
- IES fileled-cbt-2x4-5p50-5cct-25w.ies
- IES fileled-cbt-2x4-5p50-5cct-30w.ies
