EnVision LED

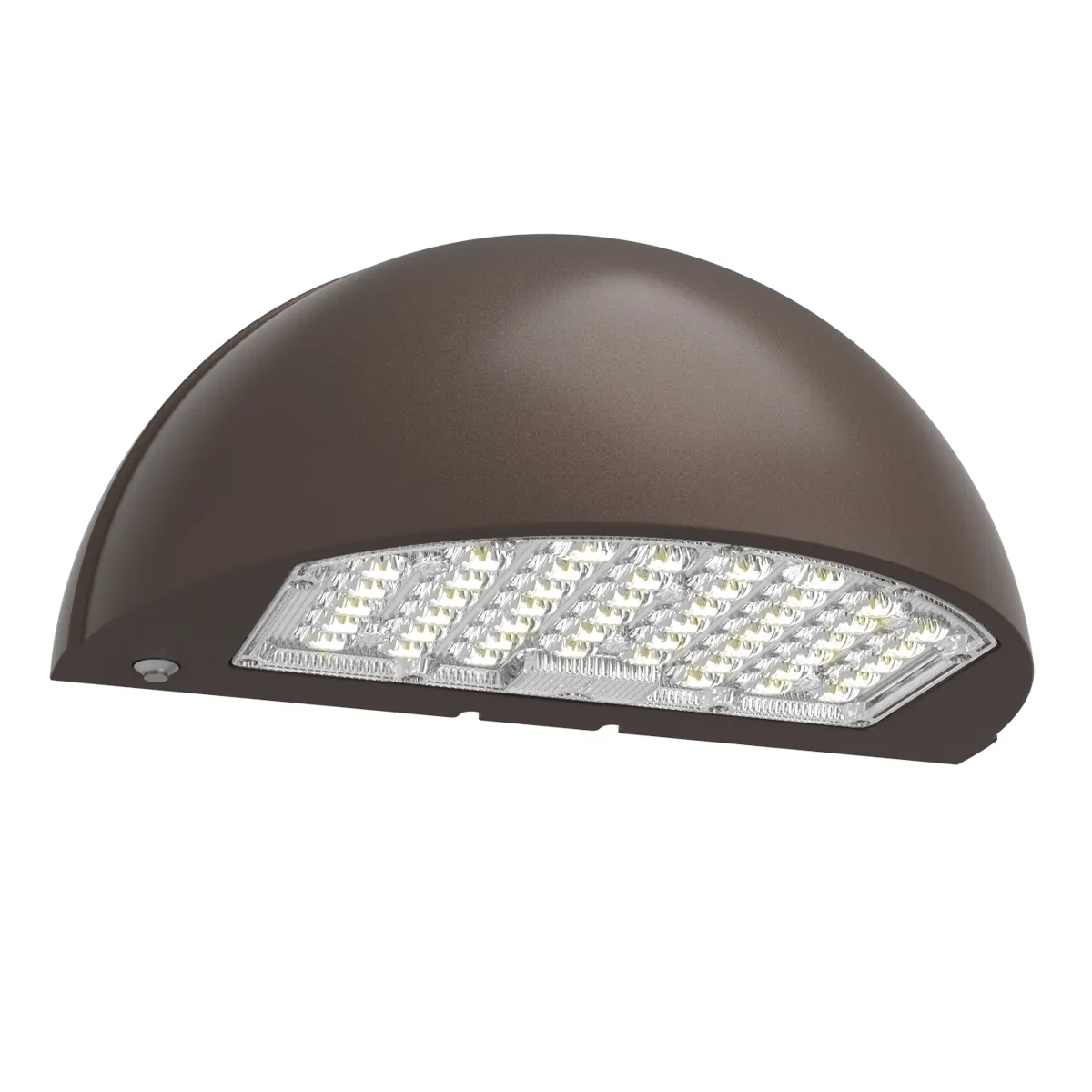

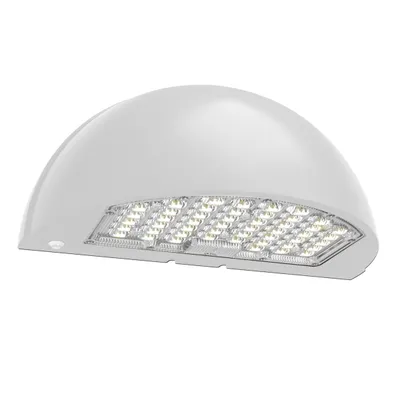

CIRCLE-Line: Semi-Circle Full Cut Off Wall Pack w/ Selectable Photocell
New3 part numbers · Circular Wall Packs
- Wattage
- 48–80W
- Lumens
- 6,480–10,800 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–347V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Black, Bronze, White
- DLC
- DLC Premium
- Warranty
- 5 years

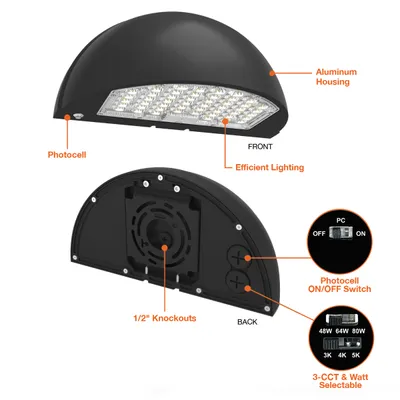

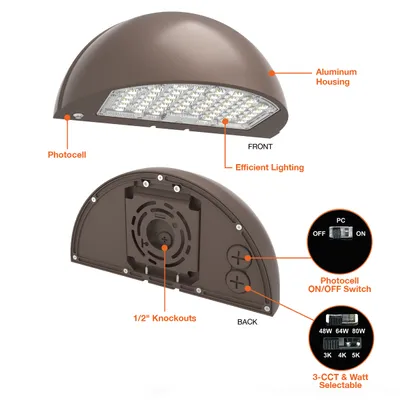

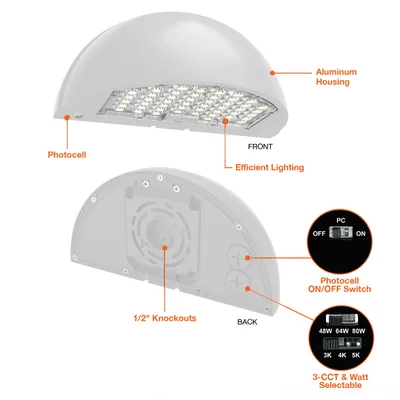

Key features
- 3CCT
- Select-N-Switch
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-WPFC-SC-3P80-TRI-BL-PC | Wall Pack: CIRCLE-Line Down | 48/64/80W | 6,480/8,640/10,800 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-WPFC-SC-3P80-TRI-BZ-PC | Wall Pack: CIRCLE-Line Down | 48/64/80W | 6,480/8,640/10,800 lm | 3000K/4000K/5000K | 120–347V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-WPFC-SC-3P80-TRI-WH-PC | Wall Pack: CIRCLE-Line Down | 48/64/80W | 6,480/8,640/10,800 lm | 3000K/4000K/5000K | 120–347V | 0-10V | White | Premium | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-wpfc-sc-48w-30k.ies
- IES fileled-wpfc-sc-48w-40k.ies
- IES fileled-wpfc-sc-48w-50k.ies
- IES fileled-wpfc-sc-64w-30k.ies
- IES fileled-wpfc-sc-64w-40k.ies
- IES fileled-wpfc-sc-64w-50k.ies
- IES fileled-wpfc-sc-80w-30k.ies
- IES fileled-wpfc-sc-80w-40k.ies
- IES fileled-wpfc-sc-80w-50k.ies
