FC-Line: Full Cut Off Wall Packs w/ Photocell

1 / 24

EnVision LED

FC-Line: Full Cut Off Wall Packs w/ Photocell

New

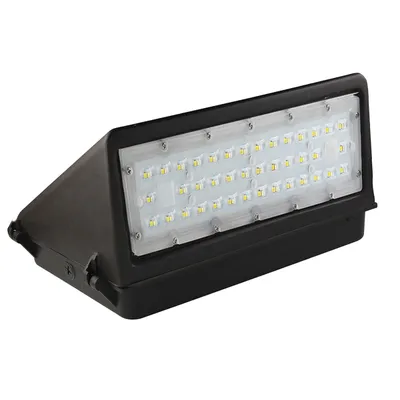

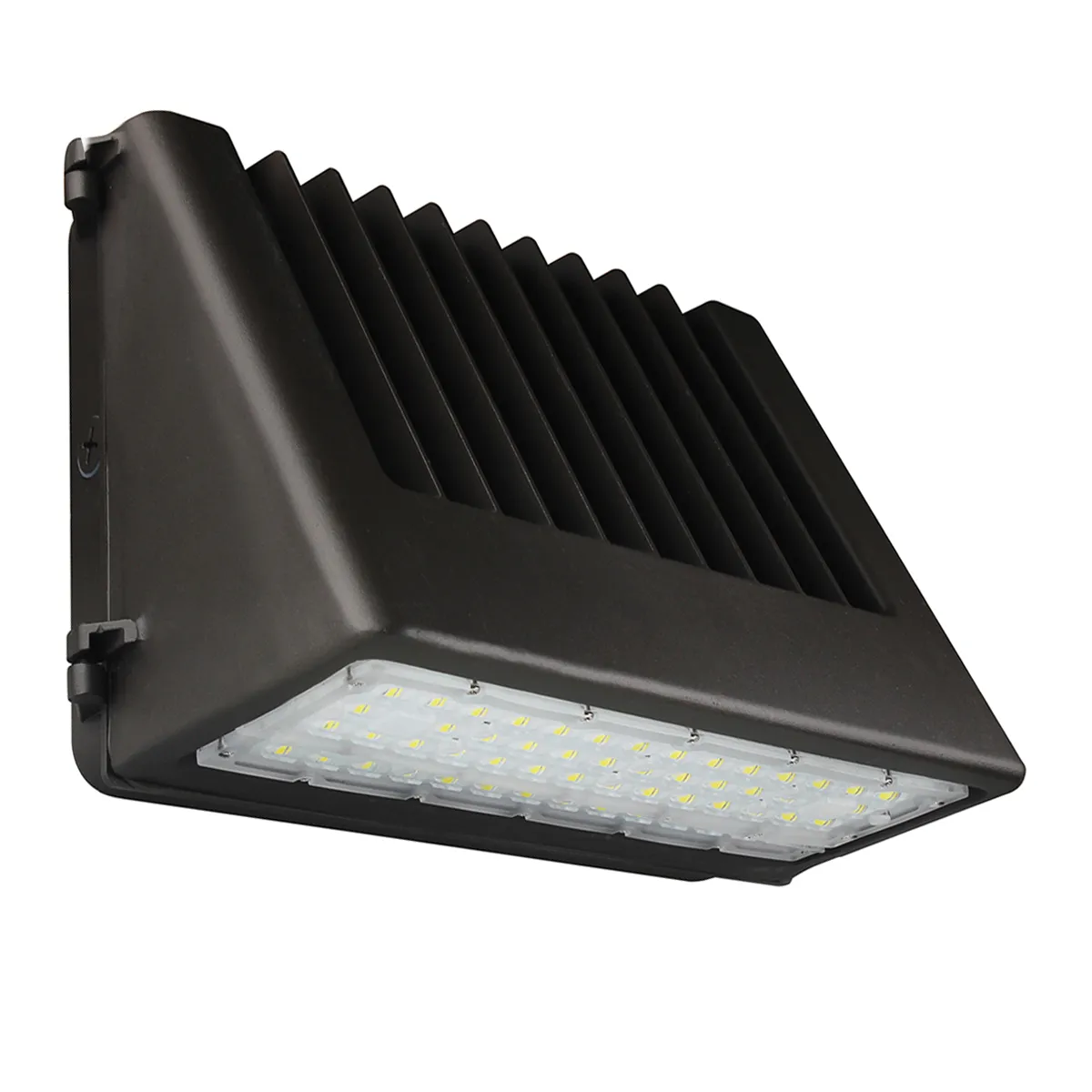

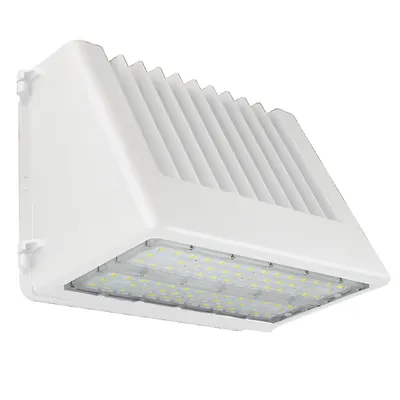

The EnVision LED Full Cut Off Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage.

9 part numbers · Full Cut Off Wall Packs

Wattage
16–150W
Lumens
2,320–21,750 lm
Color temperature
3000K, 4000K, 5000K
Voltage
120–277V, 277–480V
Dimming
0-10V
CRI
80+
IP rating
IP65
Finish
Black, Bronze, White
DLC
DLC Premium
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

The EnVision LED Full Cut Off Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage. Select-N-Switch from 120/110/100/90/80w and 60/50/40/30/20w all in one fixture. Photocell is included standard and can easily be removed.

Key features

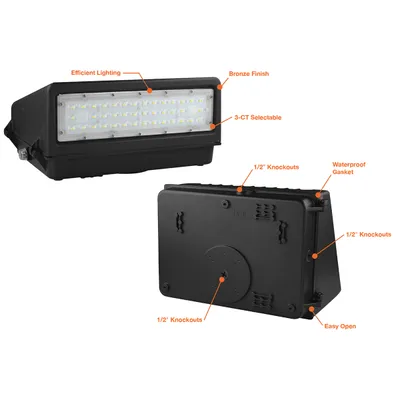

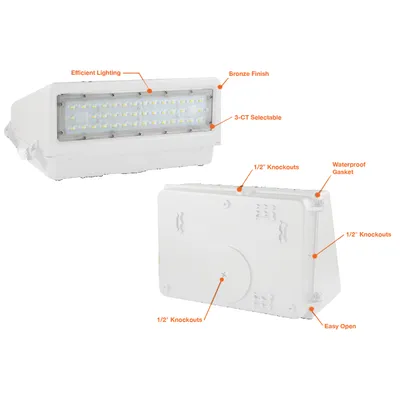

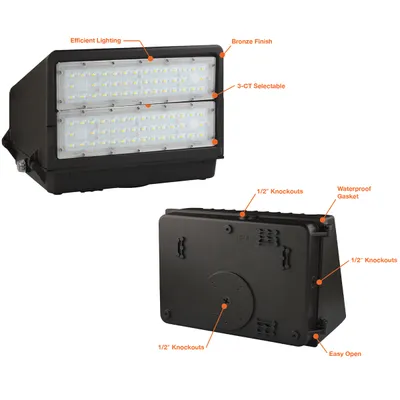

  • 3CCT
  • Select-N-Switch

Factory options

  • -EMB — 90 Minute Emergency Backup 30-120F
  • -CEMB — 90 Minute Emergency Backup Cold Weather -4-120F
  • -BMS — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
  • -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
  • 20KV — SG-20KV-UNV: 20KV Surge Protector

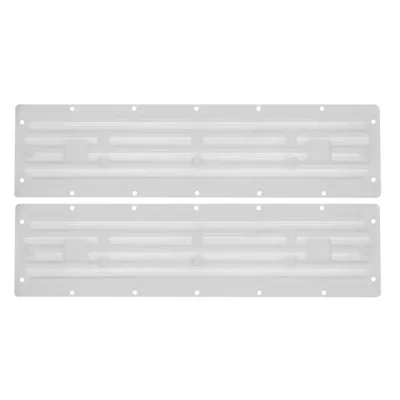

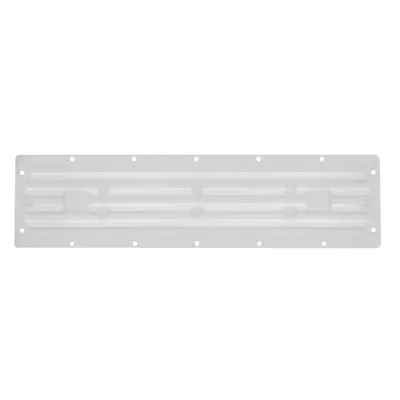

  • -T2 — Factory Installed Type II Optic (80W: 1 PC) (150W: 2 PCs)
  • -T4 — Factory Installed Type IV Optic (80W: 1 PC) (150W: 2 PCs)

Add the suffix to the part number when ordering. See the spec sheet for compatibility.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
WPFC-T-IIWall Pack: FC-Line: Type II Optics Lens Req'd: (80W: 1 PC) (150W: 2 PCs)———————Call for pricing
WPFC-T-IVWall Pack: FC-Line: TypeI V Optics Lens Req'd: (80W: 1 PC) (150W: 2 PCs)———————Call for pricing

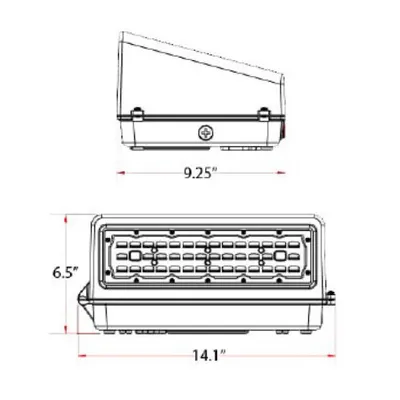

LED-WPFC-5P80-TRI-BL-PCWall Pack: FC-Line16/32/48/64/80W2,320/4,640/6,960/9,280/11,600 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPFC-5P80-TRI-BZ-HV-PCWall Pack: FC-Line16/32/48/64/80W2,320/4,640/6,960/9,280/11,600 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing
LED-WPFC-5P80-TRI-BZ-PCWall Pack: FC-Line16/32/48/64/80W2,320/4,640/6,960/9,280/11,600 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPFC-5P80-TRI-WH-PCWall Pack: FC-Line16/32/48/64/80W2,320/4,640/6,960/9,280/11,600 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing

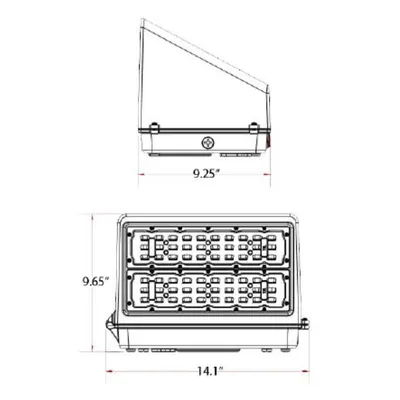

LED-WPFC-5P150-TRI-BL-PCWall Pack: FC-Line30/60/90/120/150W4,350/8,700/13,050/17,400/21,750 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPFC-5P150-TRI-BZ-PCWall Pack: FC-Line30/60/90/120/150W4,350/8,700/13,050/17,400/21,750 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPFC-5P150-TRI-WH-PCWall Pack: FC-Line30/60/90/120/150W4,350/8,700/13,050/17,400/21,750 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
