EnVision LED

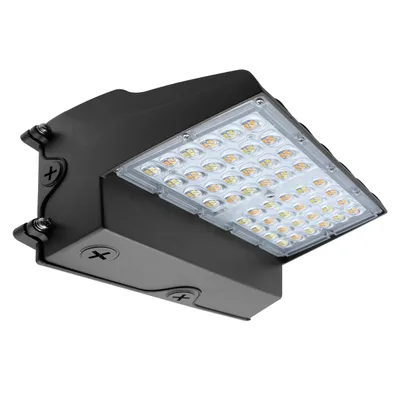

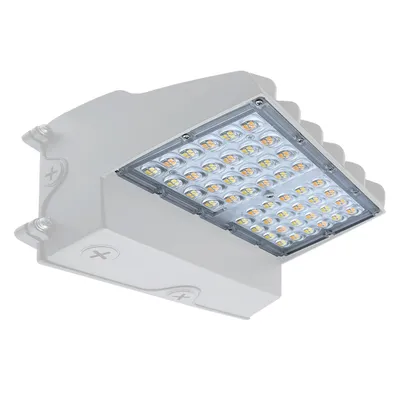

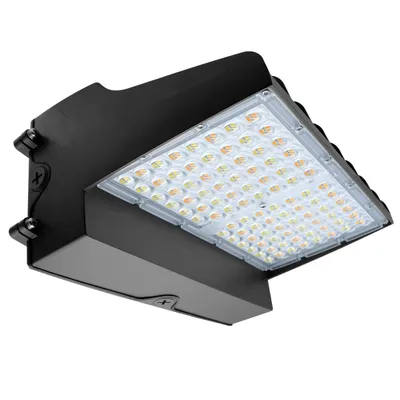

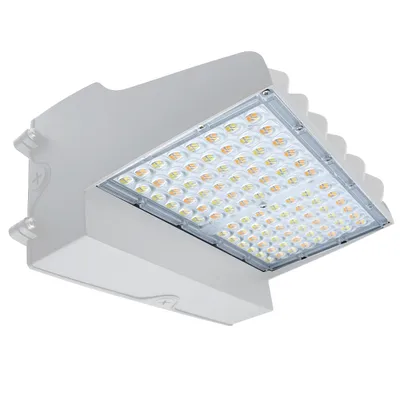

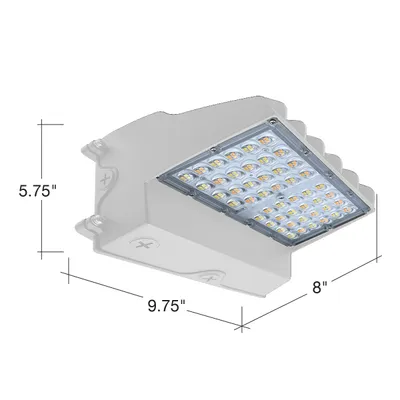

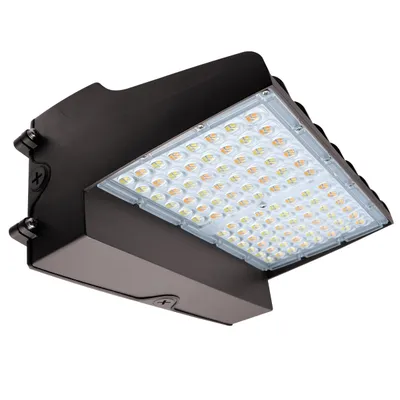

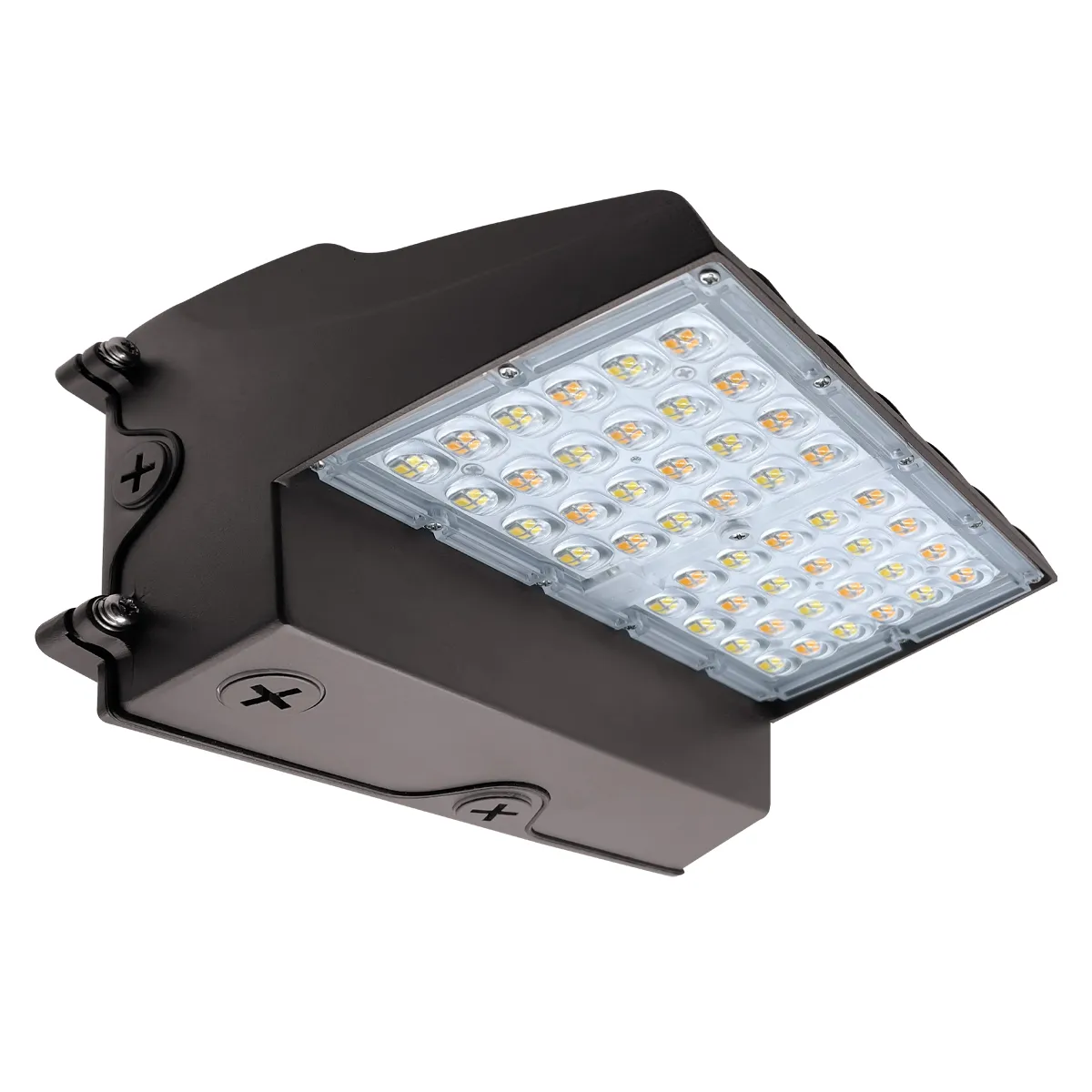

Flat-FC-Line: Full Cut Off Wall Packs w/ Photocell
NewThe EnVision LED Full Cut Off Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage.
6 part numbers · Full Cut Off Wall Packs Adjustable
- Wattage
- 20–120W
- Lumens
- 2,900–17,400 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- IP rating
- IP65
- Finish
- Black, Bronze, White
- DLC
- DLC Premium
- Warranty
- 5 years
Overview

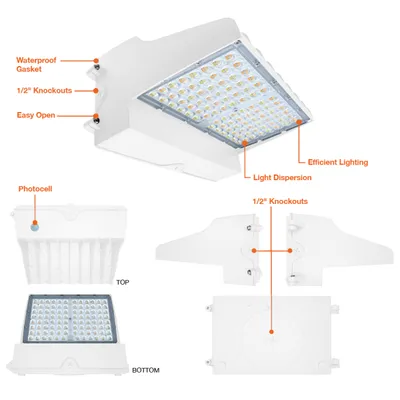

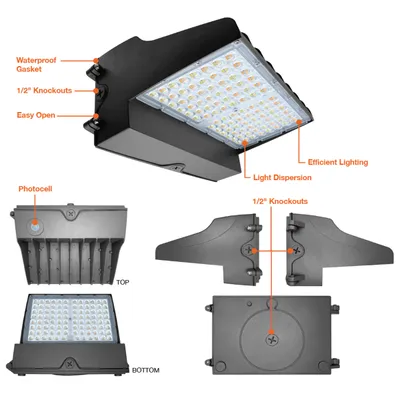

The EnVision LED Full Cut Off Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage. Select-N-Switch from 120/110/100/90/80w and 60/50/40/30/20w all in one fixture. Photocell is included standard and can easily be removed.
Key features
- 3CCT
- Select-N-Switch
Factory options
- -EMB — 90 Minute Emergency Backup 30-120F
- -CEMB — 90 Minute Emergency Backup Cold Weather -4-120F
- -BMS — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
- -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
Add the suffix to the part number when ordering. See the spec sheet for compatibility.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-WPFC-FL-5P60W-TRI-BL-PC | Wall Pack: Flat-FC-Line | 20/30/40/50/60W | 2,900/4,350/5,800/7,250/8,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-WPFC-FL-5P60W-TRI-BZ-PC | Wall Pack: Flat-FC-Line | 20/30/40/50/60W | 2,900/4,350/5,800/7,250/8,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-WPFC-FL-5P60W-TRI-WH-PC | Wall Pack: Flat-FC-Line | 20/30/40/50/60W | 2,900/4,350/5,800/7,250/8,700 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | LED-WPFC-FL-5P120W-TRI-BL-PC | Wall Pack: Flat-FC-Line | 80/90/100/110/120W | 11,600/13,050/14,500/15,950/17,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-WPFC-FL-5P120W-TRI-BZ-PC | Wall Pack: Flat-FC-Line | 80/90/100/110/120W | 11,600/13,050/14,500/15,950/17,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | LED-WPFC-FL-5P120W-TRI-WH-PC | Wall Pack: Flat-FC-Line | 80/90/100/110/120W | 11,600/13,050/14,500/15,950/17,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing |
