EnVision LED

Full-Line: Regular Wall Packs

New

The EnVision LED Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage.

17 part numbers · Non-Cut Off Wall Packs

Wattage
20–120W
Lumens
2,300–16,800 lm
Color temperature
3000K, 4000K, 5000K
Voltage
120–277V, 277–480V
Dimming
0-10V
CRI
80+
IP rating
IP65
Finish
Bronze, Silver, Black, White
DLC
DLC Premium
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

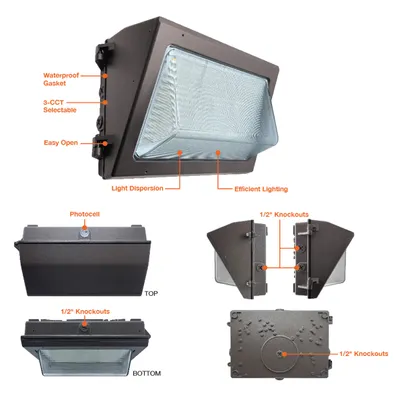

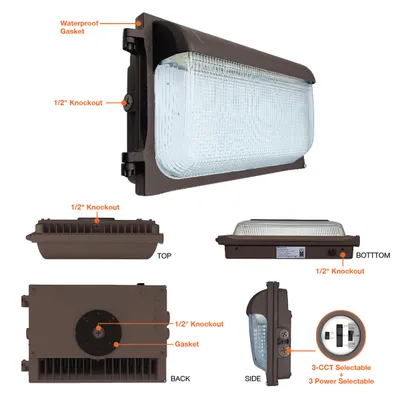

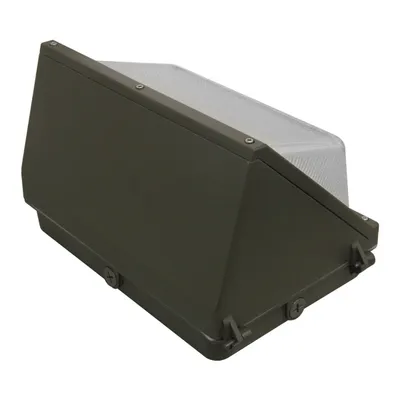

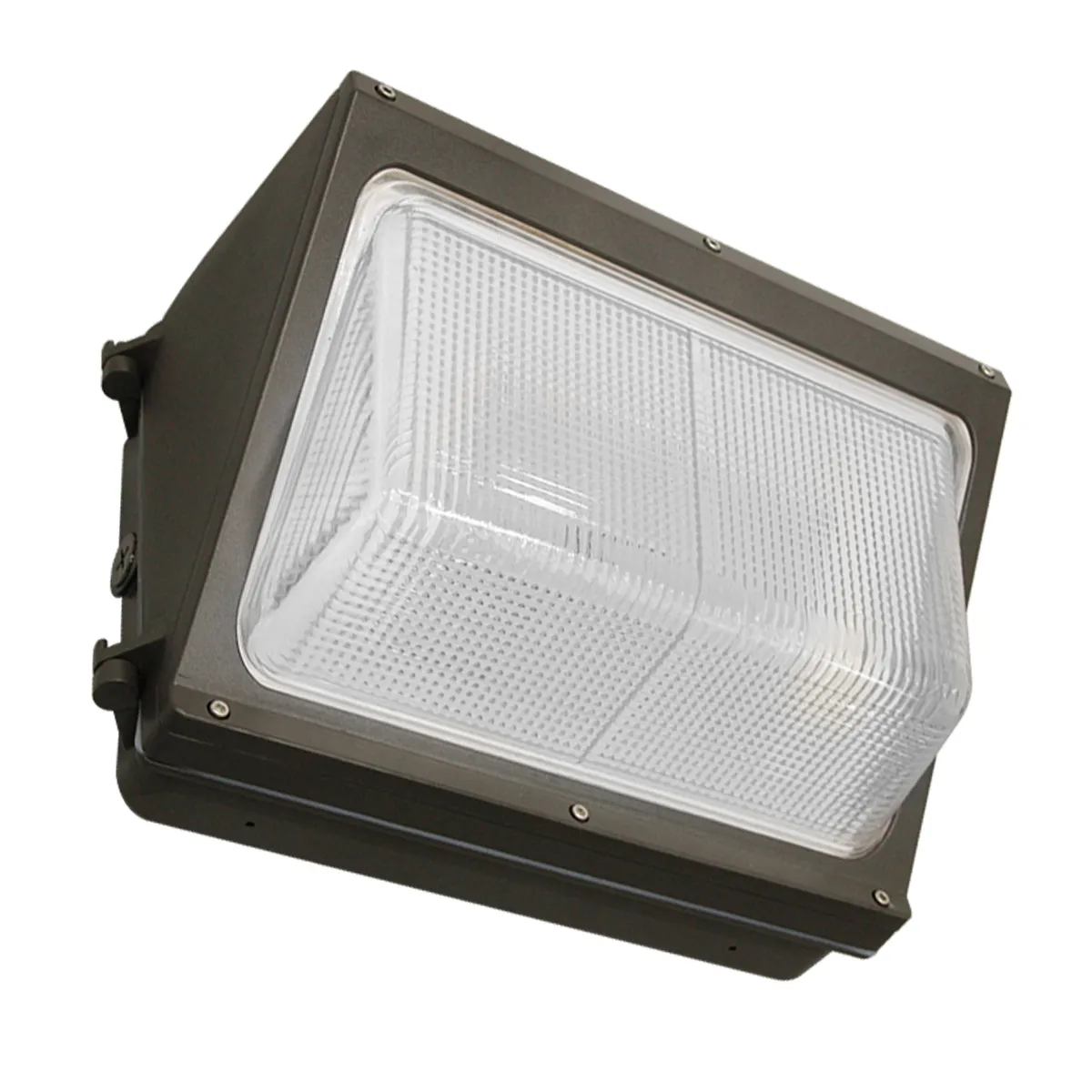

The EnVision LED Wall Pack fixture is powerful, waterproof, and is compatible with universal voltage. The EnVision LED flood light is equipped with die cast aluminum housing, finished with a matte bronze powder paint, and anti-corrosion priming.

Key features

  • 1CCT
  • 3CCT
  • Bronze
  • Select-N-Switch

Factory options

  • -EMB — 90 Minute Emergency Backup 30-120F
  • -CEMB — 90 Minute Emergency Backup Cold Weather -4-120F
  • -BMS — HB01-DMS-C: Bi Level Motion + Daylight Sensor
  • -BMS1 — S-BMS-EXT-1: Bi Level Motion + Daylight Sensor
  • -BMS1BT — S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/ Bluetooth Control (ENVISION SMART APP)
  • 20KV — SG-20KV-UNV: 20KV Surge Protector
  • -HV — 347-480V Step Down Transformer

Add the suffix to the part number when ordering. See the spec sheet for compatibility.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare

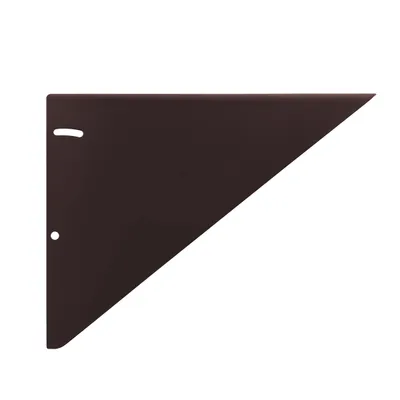

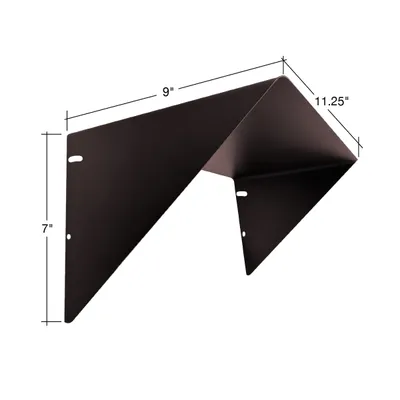

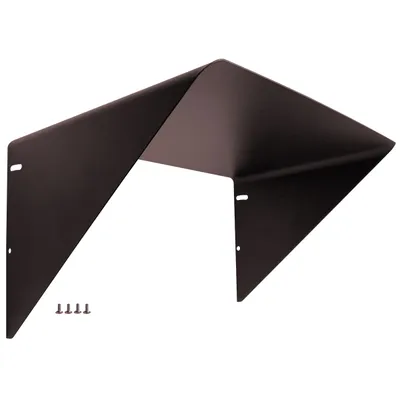

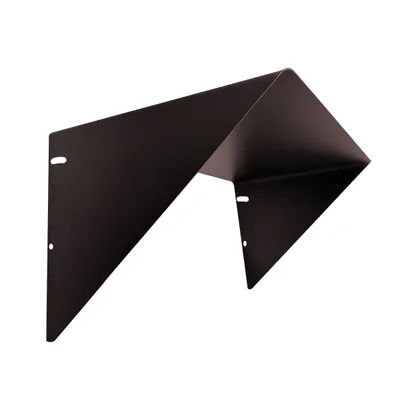

WPF-SHIELDWPF: Cut off shield—————Bronze—Call for pricing
WPF-SL-SHIELDWall Pack: SL-Line Shield—————Silver—Call for pricing

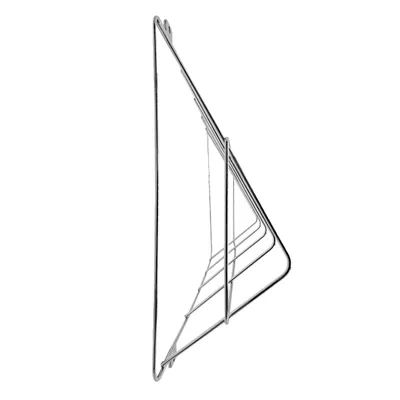

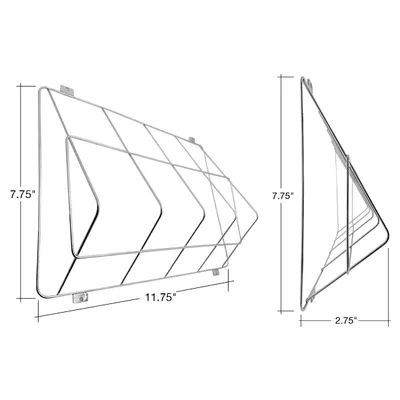

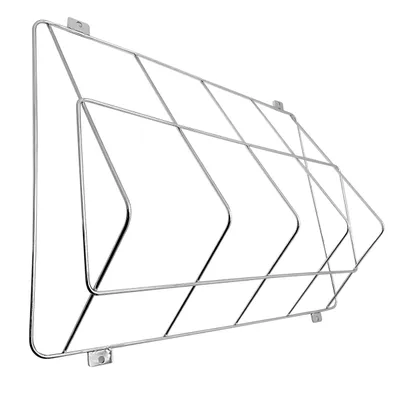

WPF-WGWPF: Wire guard—————Silver—Call for pricing
LED-WPF-40W-40K-BZWall Pack: Full-Line40W5,600 lm4000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-5P60-TRI-BL-PCWall Pack Full-Line w/ Photocell20/30/40/50/60W2,300/4,200/5,600/7,000/8,400 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPF-5P60-TRI-BZ-PCWall Pack Full-Line w/ Photocell20/30/40/50/60W2,300/4,200/5,600/7,000/8,400 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing

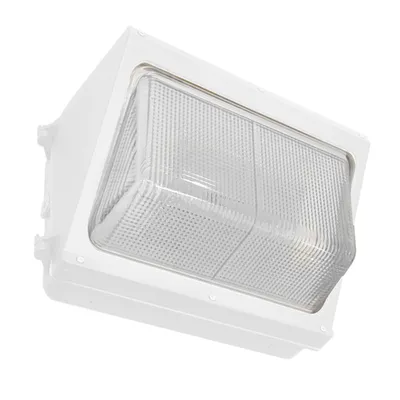

LED-WPF-5P60-TRI-WH-PCWall Pack Full-Line w/ Photocell20/30/40/50/60W2,300/4,200/5,600/7,000/8,400 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing

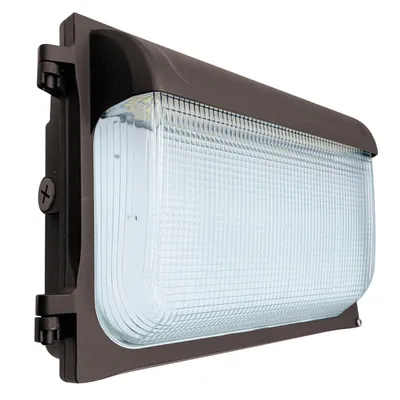

LED-WPF-SL-3P60-TRI-BZ-HV-PCWall Pack: SL-Line30/40/60W3,900/5,200/7,800 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing
LED-WPF-SL-3P60-TRI-BZ-UNV-PCWall Pack: SL-Line30/40/60W3,900/5,200/7,800 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-80W-40K-BZWall Pack: Full-Line80W11,200 lm4000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-80W-50K-BZWall Pack: Full-Line80W11,200 lm5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-120W-40K-BZWall Pack: Full-Line120W16,800 lm4000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-5P120-TRI-BL-PCWall Pack Full-Line w/ Photocell40/60/80/100/120W5,600/8,400/11,200/14,000/16,800 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-WPF-5P120-TRI-BZ-PCWall Pack Full-Line w/ Photocell40/60/80/100/120W5,600/8,400/11,200/14,000/16,800 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
LED-WPF-5P120-TRI-WH-PCWall Pack Full-Line w/ Photocell40/60/80/100/120W5,600/8,400/11,200/14,000/16,800 lm3000K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
LED-WPF-SL-3P120-TRI-BZ-HV-PCWall Pack: SL-Line80/100/120W10,400/13,000/15,600 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing
LED-WPF-SL-3P120-TRI-BZ-UNV-PCWall Pack: SL-Line80/100/120W10,400/13,000/15,600 lm3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
