Highbay Fixture - Linear w/ Twist-C Technology - Compact Design - 4CCT + 3-Power Selectable - Adjustable Lens (except 3p450)

1 / 18

EnVision LED

Highbay Fixture - Linear w/ Twist-C Technology - Compact Design - 4CCT + 3-Power Selectable - Adjustable Lens (except 3p450)

New

The EnVision C-Line LHB is our latest innovative linear high bay design.

8 part numbers · Highbay Fixture - Linear

Wattage
60–440W
Lumens
9,000–66,000 lm
Color temperature
3000K, 3500K, 4000K, 5000K
Voltage
277–480V, 120–277V
Dimming
0-10V
CRI
80+
Finish
White Frosted
DLC
DLC Premium
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

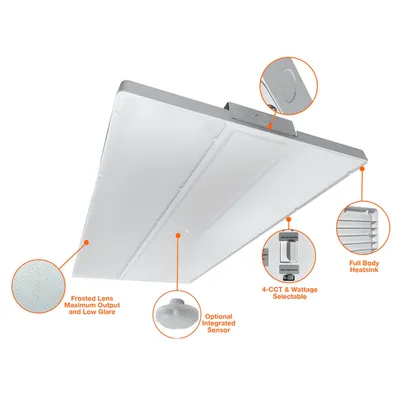

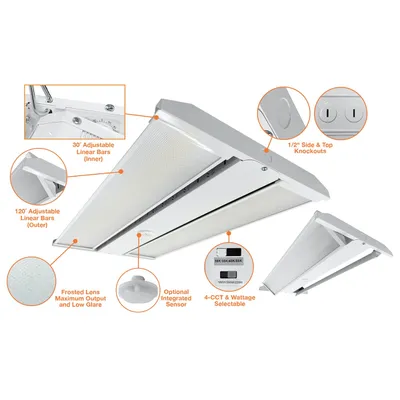

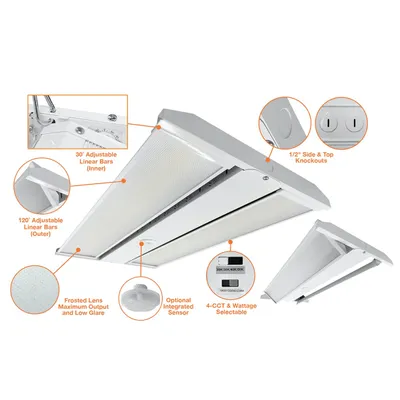

The EnVision C-Line LHB is our latest innovative linear high bay design. C-Line: "compact line" is a smaller body fixture but filled with the same power as our traditional 2' and 4' linear fixtures, and will not compensate your lighting layout! Pick and chooose during installation with 3 Power Options and 4 different CCT's all in one. Equipped with our Twist-C technology, you can always decide to add our Twist-C sensors before or after installation! • 3 Power + 4CCT Selectable with Twist-C Technology • 0-10V dimmable integrated driver • Available in 120-277V or 277-480V • Standard 90° Beam with optional 60° beam available • Angle adjustable up to 35°

Key features

  • 4CCT
  • Select-N-Switch
  • Twist-C

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
LED-LHB-1FT-3P165-4CCT-HVLinear Highbay: C-Line60/110/165W9,000/16,500/24,750 lm3000K/3500K/4000K/5000K277–480V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-1FT-3P165-4CCT-UNVLinear Highbay: C-Line60/110/165W9,000/16,500/24,750 lm3000K/3500K/4000K/5000K120–277V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P220-4CCT-HVLinear Highbay: C-Line180/200/220W27,000/30,000/33,000 lm3000K/3500K/4000K/5000K277–480V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P220-4CCT-UNVLinear Highbay: C-Line180/200/220W27,000/30,000/33,000 lm3000K/3500K/4000K/5000K120–277V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P320-4CCT-HVLinear Highbay: C-Line260/290/320W39,000/43,500/48,000 lm3000K/3500K/4000K/5000K277–480V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P320-4CCT-UNVLinear Highbay: C-Line260/290/320W39,000/43,500/48,000 lm3000K/3500K/4000K/5000K120–277V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P440-4CCT-HVLinear Highbay: C-Line380/410/440W57,000/61,500/66,000 lm3000K/3500K/4000K/5000K277–480V0-10VWhite FrostedPremiumCall for pricing
LED-LHB-2FT-3P440-4CCT-UNVLinear Highbay: C-Line380/410/440W57,000/61,500/66,000 lm3000K/3500K/4000K/5000K120–277V0-10VWhite FrostedPremiumCall for pricing
