EnVision LED

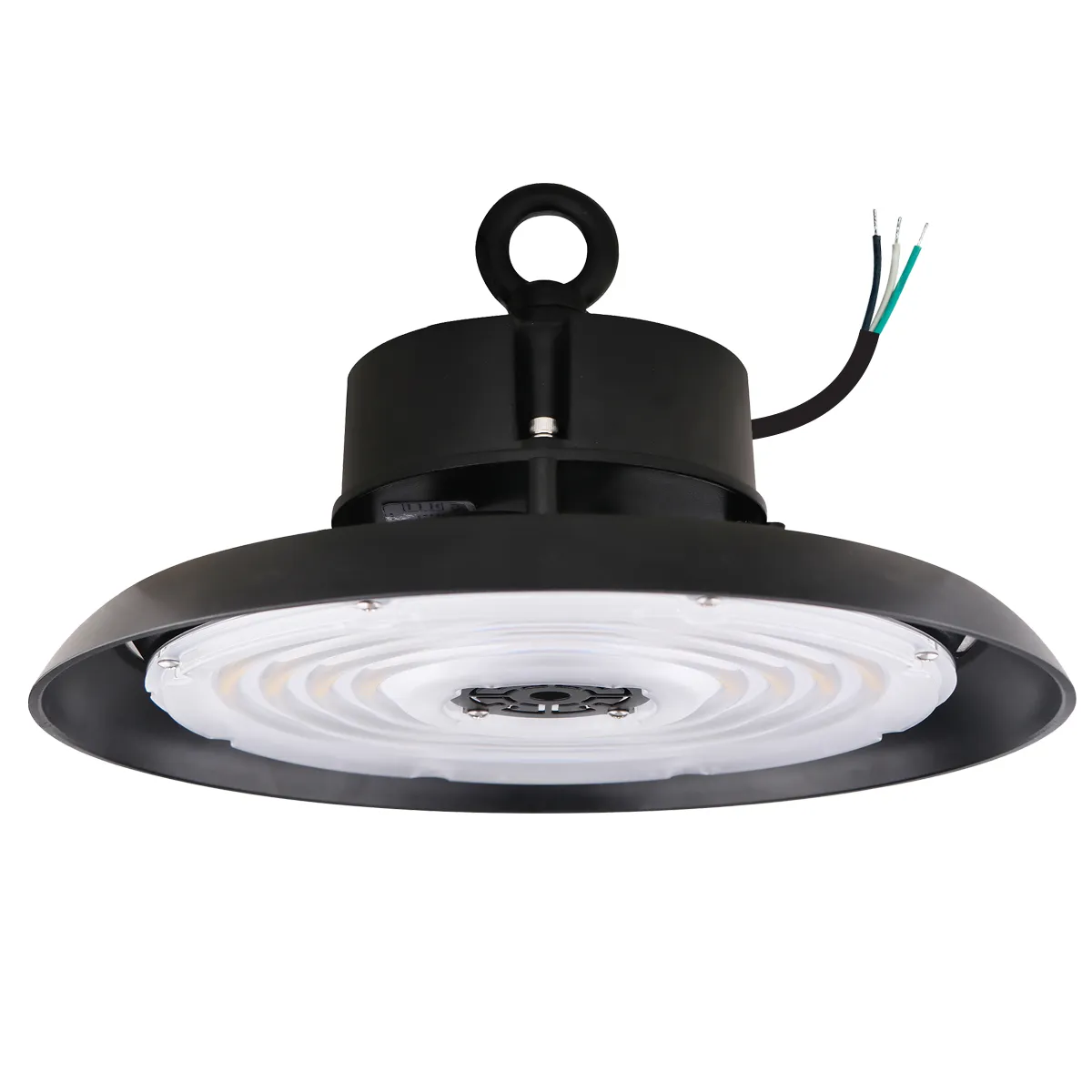

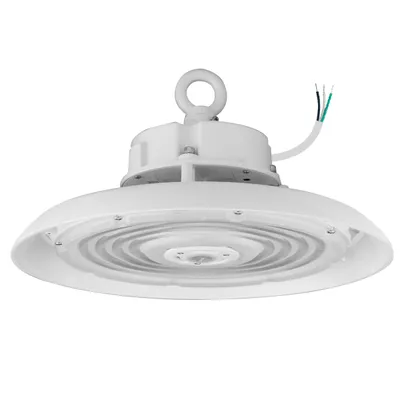

Highbay Fixture - UFO Round - 6' Whip w/ Twist-C Technology
The EnVision round UFO high bay generation 3 uses advanced LED technology in order to achieve a high lumen output with low power consumption.
9 part numbers · Highbay Fixture - UFO Round - 6' Whip w/ Twist-C Technology
- Wattage
- 100–240W
- Lumens
- 14,000–33,600 lm
- Color temperature
- 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Black, White
- DLC
- DLC Premium
- Warranty
- 5 years
Overview
The EnVision round UFO high bay generation 3 uses advanced LED technology in order to achieve a high lumen output with low power consumption. With the integration of a Sosen driver and Lumileds 3030 chips, the end user will be extremely satisfied with the ouput and longevity of the fixture. EnVision’s NEW Highbay fixture is 0-10V Dimmable, available in 3-power & lumen & CCT selectable, has various accessory options, and achieves 140 LM/W+ to qualify for DLC 5.1 Premium. Additional accessories available include surface mount kit, motion sensor, emergency back up, acrylic and PC reflectors. Fixture includes suspension hook for chain install.
Key features
- 1CCT
- Twist-C
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-RHB3-100W-40K-BL-6 | RHB3 Highbay: UFO-Line | 100W | 14,000 lm | 4000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| LED-RHB3-100W-40K-WH-6 | RHB3 Highbay: UFO-Line | 100W | 14,000 lm | 4000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| LED-RHB3-100W-50K-BL-6 | RHB3 Highbay: UFO-Line | 100W | 14,000 lm | 5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| LED-RHB3-100W-50K-WH-6 | RHB3 Highbay: UFO-Line | 100W | 14,000 lm | 5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| LED-RHB3-150W-40K-BL-6 | RHB3 Highbay: UFO-Line | 150W | 21,000 lm | 4000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| LED-RHB3-150W-40K-WH-6 | RHB3 Highbay: UFO-Line | 150W | 21,000 lm | 4000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | LED-RHB3-240W-40K-BL-6 | RHB3 Highbay: UFO-Line | 240W | 33,600 lm | 4000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | LED-RHB3-240W-40K-WH-6 | RHB3 Highbay: UFO-Line | 240W | 33,600 lm | 4000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | LED-RHB3-240W-50K-BL-6 | RHB3 Highbay: UFO-Line | 240W | 33,600 lm | 5000K | 120–277V | 0-10V | Black | Premium | Call for pricing |
