Highbay Fixture - UFO Round Compact -3CCT + 3-Power Selectable, 10' Whip w/ Twist-C Technology

1 / 10

EnVision LED

Highbay Fixture - UFO Round Compact -3CCT + 3-Power Selectable, 10' Whip w/ Twist-C Technology

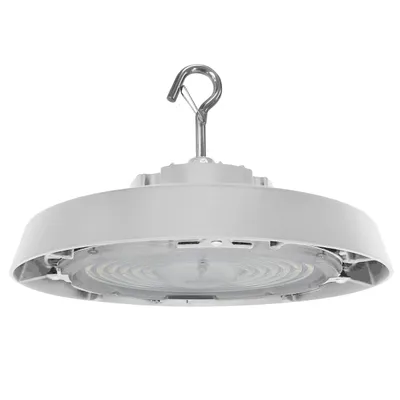

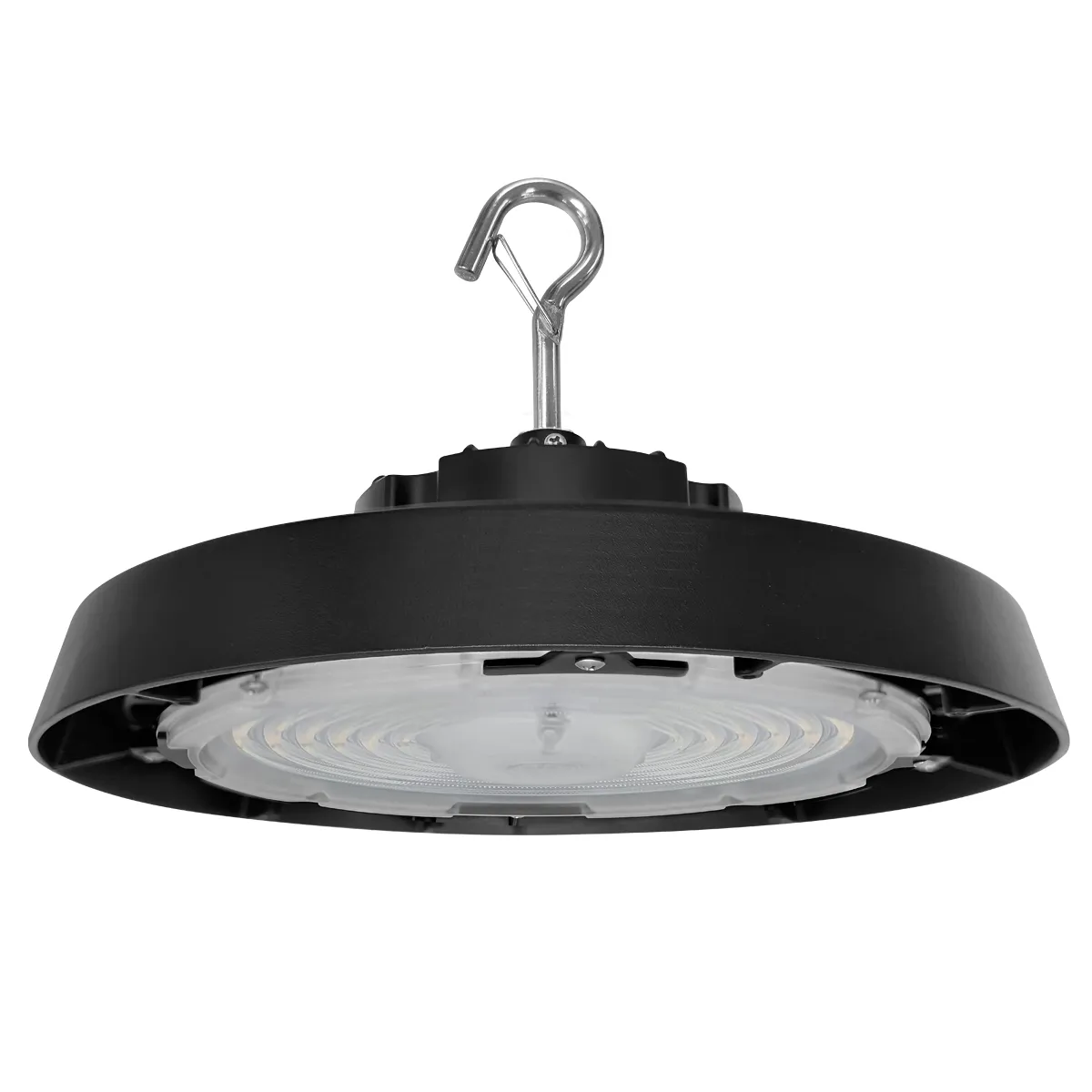

The EnVision round UFO high bay generation 3 uses advanced LED technology in order to achieve a high lumen output with low power consumption.

8 part numbers · Highbay Fixture - UFO Round - 6' Whip w/ Twist-C Technology

Wattage
60–240W
Lumens
9,000–36,000 lm
Color temperature
3500K, 4000K, 5000K
Voltage
277–480V, 120–277V
Dimming
0-10V
CRI
80+
Finish
Black, White
DLC
DLC Premium
Warranty
5 years
Request a QuoteSpec sheet678-467-5515

Overview

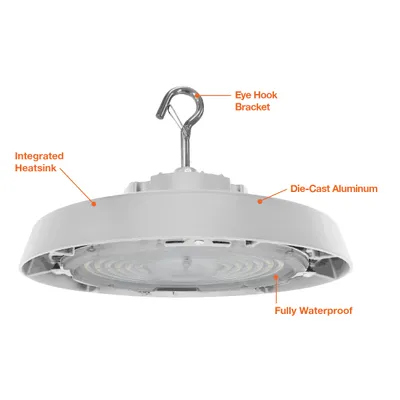

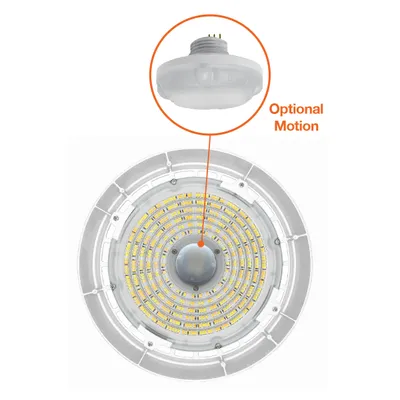

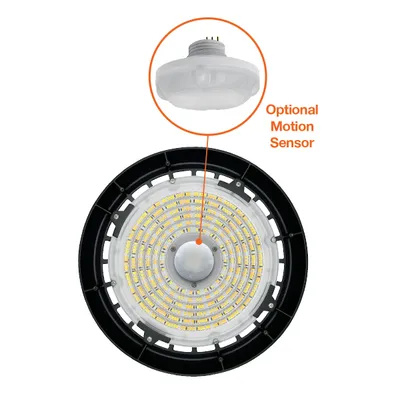

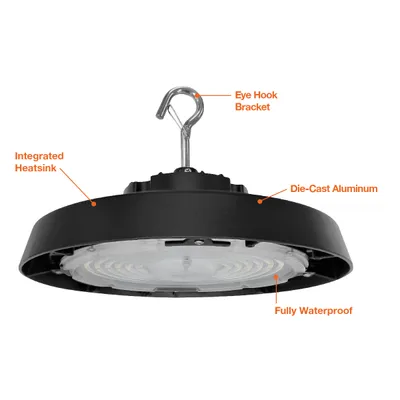

The EnVision round UFO high bay generation 3 uses advanced LED technology in order to achieve a high lumen output with low power consumption. With the integration of a Sosen driver and Lumileds 3030 chips, the end user will be extremely satisfied with the ouput and longevity of the fixture. EnVision’s NEW Highbay fixture is 0-10V Dimmable, available in 3-power & lumen & CCT selectable, has various accessory options, and achieves 140 LM/W+ to qualify for DLC 5.1 Premium. Additional accessories available include surface mount kit, motion sensor, emergency back up, acrylic and PC reflectors. Fixture includes suspension hook for chain install.

Key features

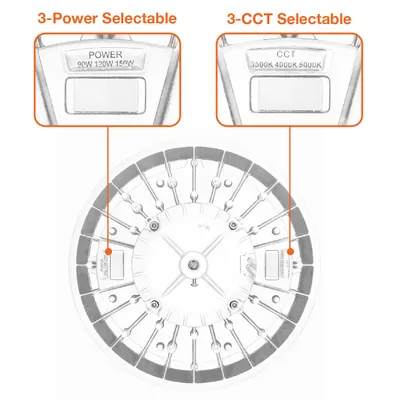

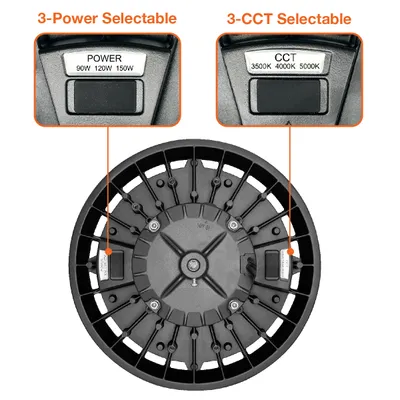

  • 3CCT
  • Select-N-Switch
  • Twist-C

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
LED-RHB3C-3P150-CTRI-BL-10-HVRHB3 Highbay: C-Line60/100/150W9,000/15,000/22,500 lm3500K/4000K/5000K277–480V0-10VBlackPremiumCall for pricing
LED-RHB3C-3P150-CTRI-BL-10-UNVRHB3 Highbay: C-Line60/100/150W9,000/15,000/22,500 lm3500K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-RHB3C-3P150-CTRI-WH-10-HVRHB3 Highbay: C-Line60/100/150W9,000/15,000/22,500 lm3500K/4000K/5000K277–480V0-10VWhitePremiumCall for pricing
LED-RHB3C-3P150-CTRI-WH-10-UNVRHB3 Highbay: C-Line60/100/150W9,000/15,000/22,500 lm3500K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
LED-RHB3C-3P240-CTRI-BL-10-HVRHB3 Highbay: C-Line180/210/240W27,000/31,500/36,000 lm3500K/4000K/5000K277–480V0-10VBlackPremiumCall for pricing
LED-RHB3C-3P240-CTRI-BL-10-UNVRHB3 Highbay: C-Line180/210/240W27,000/31,500/36,000 lm3500K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
LED-RHB3C-3P240-CTRI-WH-10-HVRHB3 Highbay: C-Line180/210/240W27,000/31,500/36,000 lm3500K/4000K/5000K277–480V0-10VWhitePremiumCall for pricing
LED-RHB3C-3P240-CTRI-WH-10-UNVRHB3 Highbay: C-Line180/210/240W27,000/31,500/36,000 lm3500K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
