EnVision LED

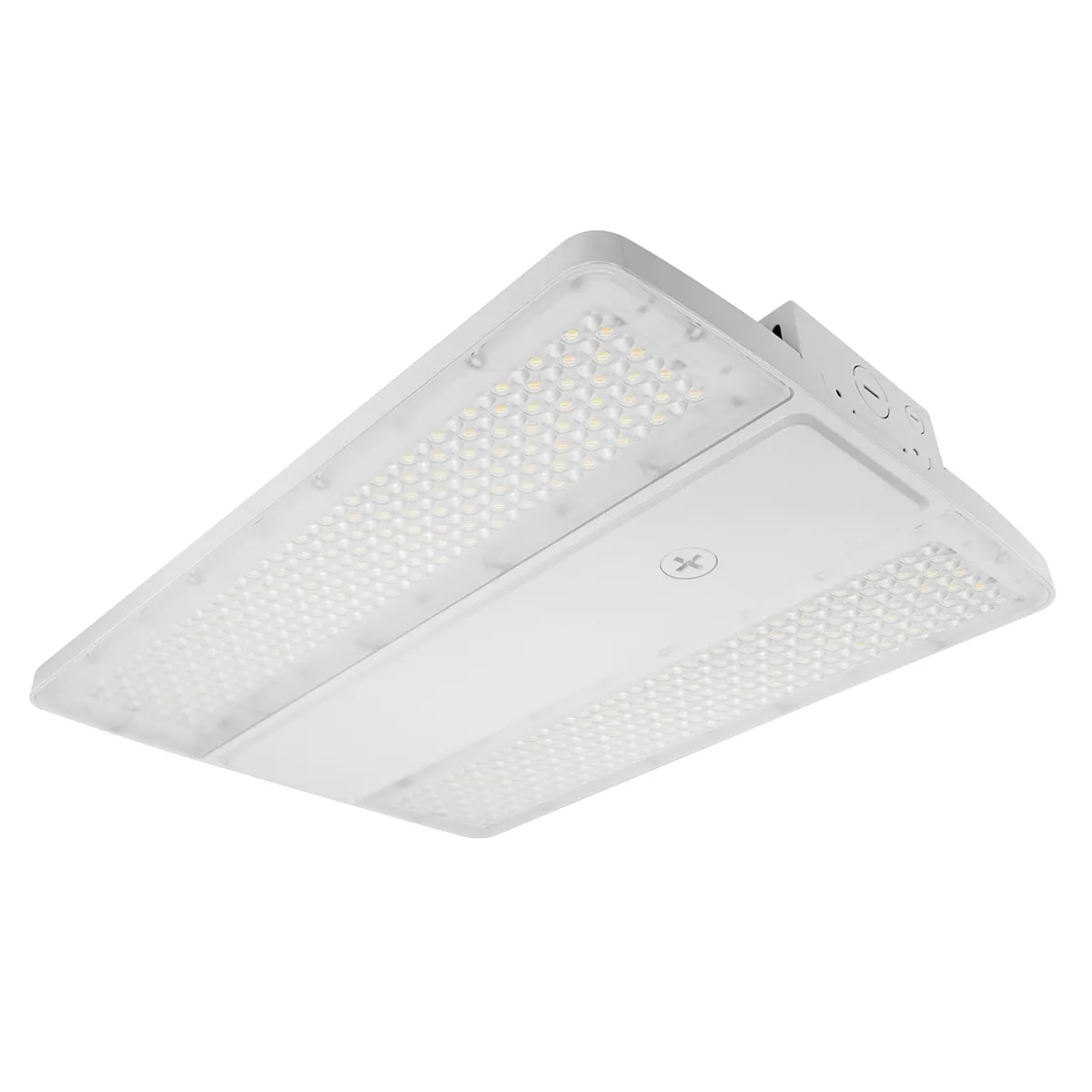

Linear Highbay: Optic-Line
New4 part numbers · High Bay (Linear)
- Wattage
- 60–320W
- Lumens
- 9,000–48,000 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–347V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed
- Warranty
- 5 years

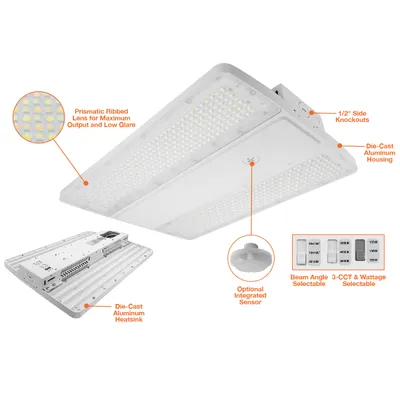

Key features
- 3CCT
- Select-N-Switch
- Twist-C
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-LHB-OPT-3P105-CTRI-UNV | Linear Highbay: Optic-Line | 60/85/105W | 9,000/12,750/15,750 lm | 3500K/4000K/5000K | 120–347V | 0-10V | White | Listed | Call for pricing | ||
 | LED-LHB-OPT-3P165-CTRI-UNV | Linear Highbay: Optic-Line | 110/130/165W | 16,500/19,500/24,750 lm | 3500K/4000K/5000K | 120–347V | 0-10V | White | Listed | Call for pricing | ||
 | LED-LHB-OPT-3P240-CTRI-UNV | Linear Highbay: Optic-Line | 180/215/240W | 27,000/32,250/36,000 lm | 3500K/4000K/5000K | 120–347V | 0-10V | White | Listed | Call for pricing | ||
 | LED-LHB-OPT-3P320-CTRI-UNV | Linear Highbay: Optic-Line | 260/290/320W | 39,000/43,500/48,000 lm | 3500K/4000K/5000K | 120–347V | 0-10V | White | Listed | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-lhb-opt-3p105-060w-ctri-unv-70x100d-ies.ies
- IES fileled-lhb-opt-3p105-060w-ctri-unv-45x100d-ies.ies
- IES fileled-lhb-opt-3p105-25wemb-ctri-unv-90x90d-emb.ies
- IES fileled-lhb-opt-3p105-105w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p105-085w-ctri-unv-90x90d-ies.ies
- IES fileled-lhb-opt-3p105-25wemb-ctri-unv-45x100d-emb.ies
- IES fileled-lhb-opt-3p105-25wemb-ctri-unv-70x100d-emb.ies
- IES fileled-lhb-opt-3p105-105w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p105-060w-ctri-unv-90x90d-ies.ies
- IES fileled-lhb-opt-3p105-085w-ctri-unv-70x100d-ies.ies
- IES fileled-lhb-opt-3p105-105w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p105-085w-ctri-unv-45x100d-ies.ies
- IES fileled-lhb-opt-3p165-25wemb-ctri-unv-45x100d-emb.ies
- IES fileled-lhb-opt-3p165-130w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p165-165w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p165-110w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p165-130w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p165-130w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p165-110w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p165-110w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p165-25wemb-ctri-unv-70x100d-emb.ies
- IES fileled-lhb-opt-3p165-165w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p165-165w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p165-25wemb-ctri-unv-90x90d-emb.ies
- IES fileled-lhb-opt-3p240-25wemb-ctri-unv-45x100d-emb.ies
- IES fileled-lhb-opt-3p240-240w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p240-180w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p240-215w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p240-240w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p240-215w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p240-180w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p240-240w-ctri-unv-90x90d.ies
- IES fileled-lhb-opt-3p240-25wemb-ctri-unv-70x100d-emb.ies
- IES fileled-lhb-opt-3p240-215w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p240-180w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p240-25wemb-ctri-unv-90x90d-emb.ies
- IES fileled-lhb-opt-3p320-290w-ctri-unv-45x100d.ies
- IES fileled-lhb-opt-3p320-40wemb-ctri-unv-45x100d-emb.ies
- IES fileled-lhb-opt-3p320-320w-ctri-unv-70x100d.ies
- IES fileled-lhb-opt-3p320-40wemb-ctri-unv-90x90d-emb.ies
